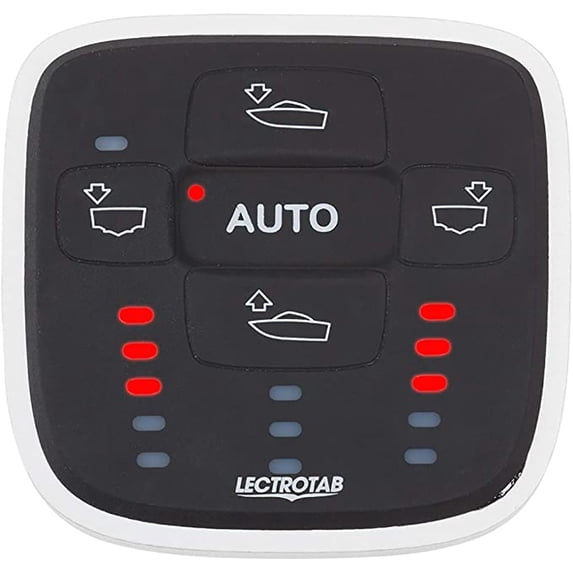

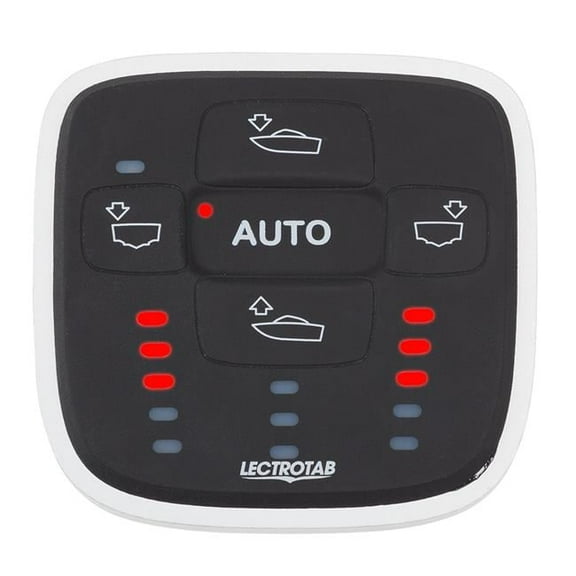

Lectrotab Automatic Leveling Control - Single Actuator [ALC-1]

(No ratings yet)

Key item features

Automatic Leveling Control - Single Actuator As wind shifts, water conditions change or passengers move about, the Automatic Leveling Control (ALC) will automatically adjust your trim tabs to maintain a level boat for a more comfortable and enjoyable ride.The ALC automatically corrects the roll from side to side and pitch from fore to aft to enhance your boating experience and improve your fuel economy.Features:
Microprocessor based automatic leveling trim tab control with LED tab position indicators
Controls roll and pitch automatically
Internal GPS - no GPS antenna or network required
Automatically adapts to varying sea conditions
Completely sealed and waterproof (IP68)
UV protected - will not deteriorate in sunlight
Prevents automatic corrections while turning
Designed for planing and semi displacement hulls larger than 20ft
Actuators connect directly to ALC-1 display panel (no external power module box required)
Automatically dims LED tab position indicators in darkness and brightens in sunlight
Automatically retracts trim tabs when boat is off plane or using optional key switch connectionTechnical Specifications:
Display Color - Black
Actuators per Tab Plate - One (1)
Dimensions (W x H) - 3.15" x 3.07" (80 x 77 mm)
Mounting Hole Cutout - 2" (50 mm)
Operating Voltage - 12 or 24 V*Sold as an Individual This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns. Owner's Manual (pdf)Brochure (pdf)
