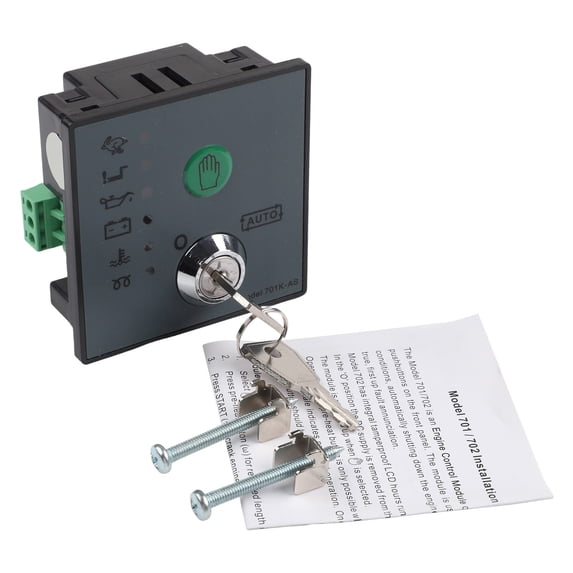

Homena 701KAS Generator Control Module with Automatic Start and Protection Features
Homena 701KAS Generator Control Module with Automatic Start and Protection Features
Hero image 0 of Homena 701KAS Generator Control Module with Automatic Start and Protection Features, 0 of 10

Homena 701KAS Generator Control Module with Automatic Start and Protection Features

(No ratings yet)

Key item features

  • 【EXTENSIVE ENGINE MONITORING FUNCTIONS】 The DSE701K-AS offers advanced monitoring features for low oil pressure, high temperature, and overspeed conditions to protect your engine during operation.
  • 【USER-FRIENDLY INTERFACE】 The integrated LCD screen provides clear visibility of accumulated run time and fault notifications through LED indicators for easy management of your generator's status.
  • 【REMOTE START OPTION】 This controller includes a remote start signal input that allows you to start the unit from a designated location for added convenience during emergencies or power outages.
  • 【SIZING NOTICE】 Make sure to verify your generator's specifications before ordering to proper fitment.
  • 【MATERIALS FOR LONGEVITY】 Made from strong ABS and metal components, the DSE701K-AS is built to endure various operational environments while maintaining consistent performance.

Specs

Brand, HomenanaWeight, 0.35 lbDimensions, 3.14 x 3.14 x 1.96 inHas written warranty, NoRec. use, Commercial, ResidentialModel, 701K-AS

About this item

Product details

Features:
* DSE701AS is available in an version, providing an excellent range of engine monitoring and  for protection functions. The module is designed to monitor low oil pressure, high engine temperature, overspeed and user- for defined auxiliary inputs. The DSE701 module includes a remote start signal input. This input allows the module to be started from a predefined remote location.
* This generator controller is microcomputer controlled.
* Has the function of LED indicating fault information.
* Has LCD running accumulated time.
* Has the lubricating oil low pressure  for protection function, the module is designed to monitor low oil pressure.
* It is also able to monitor charging by utilizing the WL terminal on the charging alternator.
* When the module detects a fault condition, it automatically shuts down the engine.
* Has cold water temperature  for protection.
* Has engine overspeed  for protection.
* The hour counter provides accurate information for monitoring maintenance and period.
* Monitors multiple engine parameters simultaneously.

Specifications:
Part Name: Generator Controller
Model: 701K-AS
Material: ABS, Metal
Color: As shown
DC Power Supply: 8V to 35V DC Continuous
CranKing Drotoups: Capable of sustaining 50ms at 0V, provided the power supply was at least 10V before the voltage drop, and the power is restored to 5V. This is achieved without the use of an internal .
Max. Current: Operating 50mA Standby 10mA Alternator Input Range: 15V to 227V AC
Alternator Input for Frequency: 50-60Hz at rated engine
Start Output: 1.2A DC at mains voltage
Fuel Output: 1.2A DC at mains voltage
Preheat Output: 1.2A DC at mains voltage
Size: 84mm x 72mm x 34.98mm
Operating Temperature Range: -30°C to +70°C
Applicable Standards;
Meets BS EN 60950 Low Voltage Directive
Meets BS EN 50081-2:1992 EMC Directive
Meets BS EN 61000-6-4:2000 EMC Directive

Package Contents:
1 x 701K-AS Generator Control Panel Panel
2 x Keys
2 x Clips
1 x Product Brochure

Note:
1.The real color of the item may be slightly different from the pictures shown on website caused by many factors such as brightness of your monitor and light brightness.
2.Please allow slight manual measurement deviation for the data.

  • 【EXTENSIVE ENGINE MONITORING FUNCTIONS】 The DSE701K-AS offers advanced monitoring features for low oil pressure, high temperature, and overspeed conditions to protect your engine during operation.
  • 【USER-FRIENDLY INTERFACE】 The integrated LCD screen provides clear visibility of accumulated run time and fault notifications through LED indicators for easy management of your generator's status.
  • 【REMOTE START OPTION】 This controller includes a remote start signal input that allows you to start the unit from a designated location for added convenience during emergencies or power outages.
  • 【SIZING NOTICE】 Make sure to verify your generator's specifications before ordering to proper fitment.
  • 【MATERIALS FOR LONGEVITY】 Made from strong ABS and metal components, the DSE701K-AS is built to endure various operational environments while maintaining consistent performance.
