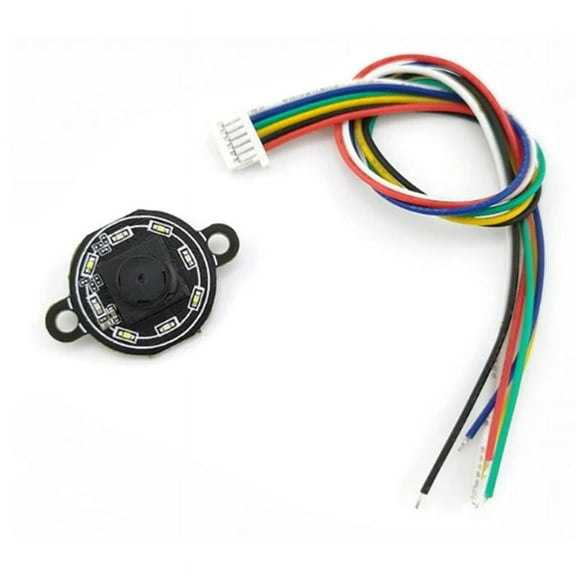

GM861 USB Interface 1D/2D Bar Code QR Code Barcode Scanner Module Stainless Steel Thread with Fill Light
(No ratings yet)
Key item features
- Stainless steel thread design, easy to install.
- The supplementary lighting design provides auxiliary lighting for reading in low-light environments, and shines on the reading target to improve reading performance. Users can set it according to the application environment.
- Multi-system compatibility: supports Windowsxp, Windows7, Windows8, Windows10, Linux, Android, forMacOS and other mainstream operating systems on the market.
- It can read various code systems, decode light prompts, and is easy to develop and apply.
Specs
Scanner technology, 1D, 2D
Connection, USB
Brand, Unbranded
Accessories, 1 x Scan module
Has written warranty, No
Model name, GM861
Scanner technology
1D, 2D
Connection, USB
Connection
USB
Brand, Unbranded
Brand
Unbranded
Accessories, 1 x Scan module
Accessories
1 x Scan module
Has written warranty, No
Has written warranty
No
Model name, GM861
Model name
GM861
About this item
Product details
Parameter:
Image sensor: CMOS
Pixel: 640*480
Prompt light: Green light indicates successful reading
Reading code system:
1D:-13.-8, -A -E ISSN, , CodaBarCode
128,Code93,ITF-14,ITF-6, Interleaved 2 of 5, Industrial 2 of 5,
Matrix 2 of5, Code 39,Code 11, -Plessey, GS1-Databar (RsS)
2D: QR Code, Data Matrix, PDF417, Micro-PDF417.
Micro-QR,
Symbol contrast: 25%
Reading angle: 360° rotation, 65° deflection, 65° tilt
Scanning angle: 67° (horizontal), 53° (vertical)
Reading accuracy: 210mil
Communication interface: USB
Prompt mode: LED indication
Working voltage: 5V
Working current: Less than 70mA
Sleep current: ≤6mA (typical value)
Startup time: ≤250ms (typical value)
Colour:black+silver
Material:Plastic + stainless steel
Package Contents:
1 x Scan module
Only the above package content, other products are not included.
Note: Light reflection and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
Image sensor: CMOS
Pixel: 640*480
Prompt light: Green light indicates successful reading
Reading code system:
1D:-13.-8, -A -E ISSN, , CodaBarCode
128,Code93,ITF-14,ITF-6, Interleaved 2 of 5, Industrial 2 of 5,
Matrix 2 of5, Code 39,Code 11, -Plessey, GS1-Databar (RsS)
2D: QR Code, Data Matrix, PDF417, Micro-PDF417.
Micro-QR,
Symbol contrast: 25%
Reading angle: 360° rotation, 65° deflection, 65° tilt
Scanning angle: 67° (horizontal), 53° (vertical)
Reading accuracy: 210mil
Communication interface: USB
Prompt mode: LED indication
Working voltage: 5V
Working current: Less than 70mA
Sleep current: ≤6mA (typical value)
Startup time: ≤250ms (typical value)
Colour:black+silver
Material:Plastic + stainless steel
Package Contents:
1 x Scan module
Only the above package content, other products are not included.
Note: Light reflection and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
- Stainless steel thread design, easy to install.
- The supplementary lighting design provides auxiliary lighting for reading in low-light environments, and shines on the reading target to improve reading performance. Users can set it according to the application environment.
- Multi-system compatibility: supports Windowsxp, Windows7, Windows8, Windows10, Linux, Android, forMacOS and other mainstream operating systems on the market.
- It can read various code systems, decode light prompts, and is easy to develop and apply.
info:
We aim to show you accurate product information. Manufacturers, suppliers and others provide what you see here, and we have not verified it.
Specifications
Scanner technology
1D, 2D
Connection
USB
Brand
Unbranded
Accessories
1 x Scan module
Warranty
Warranty information
Please be aware that the warranty terms on items offered for sale by third party Marketplace sellers may differ from those displayed in this section (if any). To confirm warranty terms on an item offered for sale by a third party Marketplace seller, please use the 'Contact seller' feature on the third party Marketplace seller's information page and request the item's warranty terms prior to purchase.
