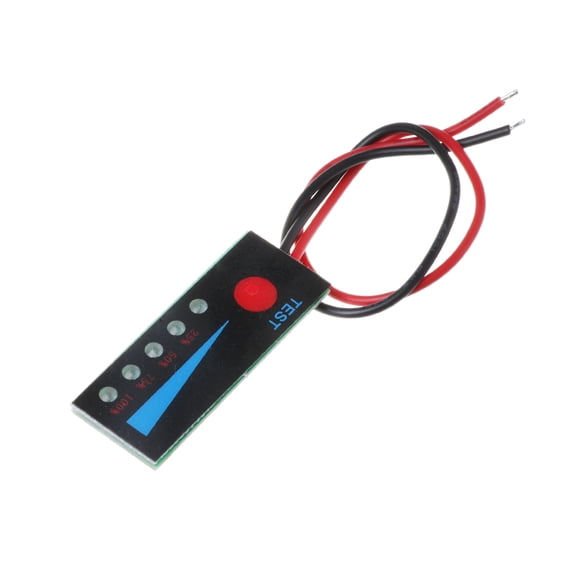

Features:
Ultra-thin Electricity display,5 LED indicators,display more and more beautiful.
the positive and of the display board and it to the positive and ends of the battery to be tested.Lightly press the red button with your finger and the lamp lights up to show the real-time battery power.
Loosen your finger and the LED light will be extinguished after 3-5 seconds of delay.power will be consumed during.
3.7V,full 4.2V.
3.7V uses a red power,4 (the other is 1 red power,4 )
Display Electricity Quantity Parameter:(The following data is a reference value,there will be 2% error )
1.When battery is over Nx3.2V,it will illuminate 1 block electricity quantity (note: represents battery quantity)
2.When battery is over Nx3.4V,it will illuminate 2 blocks electricity quantity
3.When battery is over Nx3.6V,it will illuminate 3 blocks electricity quantity
4.When battery is over Nx3.8V,it will illuminate electricity quantity
Specification:
3.7V,full 4.2V
Display: 5 LED
Dimensions: 1.5x4cm/0.59x1.57inch
Quantity: 1 Pc
Package includes:1 x 3.7V Power Module
