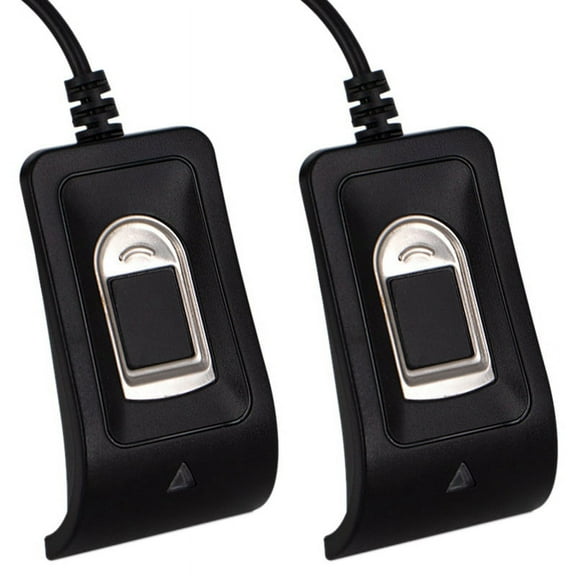

Compact USB Fingerprint Reader Scanner Reliable Biometric Access Control Attendance System
Compact USB Fingerprint Reader Scanner Reliable Biometric Access Control Attendance System
Hero image 0 of Compact USB Fingerprint Reader Scanner Reliable Biometric Access Control Attendance System, 0 of 9

Compact USB Fingerprint Reader Scanner Reliable Biometric Access Control Attendance System

|1 rating

Key item features

  • Versatile Applications: Utilized across various systems including access control, attendance tracking, storage cabinets, POS terminals, and intelligent monitoring equipment.
  • Scalable Capacity: Supports 1:N identification for up to 5000 fingerprints with a response time under 2.5 seconds.
  • Advanced Functionality: Features independent capabilities for fingerprint enrollment, comparison, and searching, with 360-degree automatic correction.
  • Compact Design: Portable and easy to store, this device offers low power consumption, a universal interface, and high reliability.
  • High Accuracy: Boasts a false identification rate (FAR) of less than 0.001% and a false rejection rate (FRR) of less than 0.1%.
  • Technical Specifications: Operates on DC 3.3V, with a 144 MHz CPU, 1M Flash Bit, and 128KB for fingerprint data.
  • Efficient Processing: Fingerprint extraction time is less than 0.45 seconds, with adjustable security levels from 1 to 5.
  • Robust Connectivity: Offers UART and USB communication interfaces, supporting various transmission speeds up to 115200 bps.
Generated by AI

Specs

Connection, USBBrand, UnbrandedSize, about 6.5 x 3.8 x 1.7cmColor, BlackHas written warranty, NoPiece count, 1

About this item

Product details

Specification:
Condition 100% New
CPU: 144 MHz
Main Frequency: 1M Flash Bit, 128KB for
Fingerprint Reader: Capacitor Collection
Fingerprint Size: 192X192 (pixels), 508 dpi
Fingerprint registration capacity: 1000 by default, which can be increased to 5000
Fake Identification Rate (Far) Less than 0.001%
Deviation Percentage (fRR) Less than 0.1%
Fingerprint size: 570 bytes
Security level settings: from level 1 to level 5. The default value is Level 3
Processing speed: fingerprint extraction time Less than 0.45 seconds
Communication Interface: UART, level 3.3 V-TTL or usb connection
Serial Communication parameters:
Parity = No; 1 stop bit = 1
Flow Control = None
Transmission Speed: 9600, 19200, 38400, 57600, 115200 (bps
Operating voltage: DC 3.3 V ± 10%
Working current: less than 30 mA, and the maximum value of fingerprint collection is less than 80 mA (instantaneous current)
Inactivity Current: Less than 10uA
Working Environmental Protection:
Operating Temperature: -10 Celsius -60 Celsius
Relative humidity: 20% -80%
Colour:black
Material:plastic
Size:about 6.5 x 3.8 x 1.7cm

Package Contents:
1*Fingerprint register

Only the above package content, other products are not included.
Note: Light reflection and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
  • It is used for fingerprint access control machine, fingerprint root search, fingerprint attendance machine, fingerprint storage cabinet, one-click autorun, fingerprint printing, fingerprint lock, fingerprint security, fingerprint POS terminal fingerprint, fingerprint management hospital cover, intelligent monitoring equipment, etc.
  • Scalable large capacity 1: N identification (5000 fingerprints, non-modular identification, response time less than 2.5 seconds).
  • It can be easily integrated into the user system to form a fingerprint identification product to meet customer needs. In the fingerprint identification process, after the recently retrieved fingerprint characteristic value is successfully recognized, the characteristic value is melted in the fingerprint database, so that users can use it more and more easily.
  • A multifunctional design that can independently complete of fingerprints, registration of fingerprints, fingerprint comparison and fingerprint search.
  • The compact design is convenient to carry and store, it has low power consumption, universal interface and high reliability, it is also easy to operate.
  • 360 degrees Automatic correction and identification function, the correctly registered finger at any angle on the module, and the comparison can be completed.
  • Low level of false fingerprints: up to 0.0001%.
  • Low rejection of fingerprints: up to 0.0001%.
