ChamSys MagicQ Compact Connect

(No ratings yet)

Key item features

ChamSys MagicQ Compact Connect
ChamSys MagicQ Compact Connect
ChamSys MagicQ Compact Connect

Specs

Brand
ChamSys
Channels
32768
Connection
USB
Is powered
Y
Dimensions
5.00 x 5.00 x 5.00 Inches
Weight
20 lb

Current price is $3,500.00

Price when purchased online

Free shipping
Free 30-day returns

Walmart Protection Plan by Allstate

(Only one option can be selected at a time)

3-Year Plan - $59.00

4-Year Plan - $77.00

How do you want your item?

Ships to

Arrives by Wed, Jul 1

Order within 6 hr 10 min

Sold and shipped by SquareCable

4.090909090909091 stars out of 5, based on 22 seller reviews(4.1)

Free 30-day returns

About this item

Product details

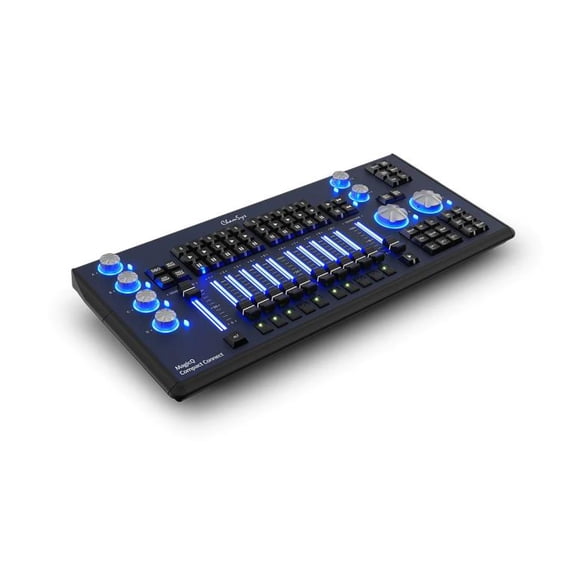

The MagicQ Compact Connect is a lightweight USB control surface that connects to your PC or Mac to control lighting, media, and LEDs.

Small enough to travel inside hand luggage, the portable Compact Connect is packed with powerful features. It has 2 direct DMX512 outputs and sends up to 64 universes of ArtNet and sACN directly from its onboard network port without the need for additional licenses or dongles. The design of the Compact Connect provides illuminated access to fixture parameters via 8 rotary encoders and live show control through 10 playback faders featuring Flash, Go and Select buttons as well as dedicated Grand Master and Crossfader for overall level control. An internal USB hub, audio input, 10Scene/Remote Input port and working light socket bring additional connectivity and convenience.

The Compact Connect is ideal for use by touring Lighting Designers or for installation into theatres, schools, clubs, studios and venues. This affordable solution offers quick tactile playback control in combination with the power of MagicQ software running on Windows, Linux or OSX.

MagicQ Software
MagicQ software offers powerful lighting control with loads of features that lighting designers have some to rely on, such as full lighting visualisation, pixel mapping, and HD media playback on up to 8 different layers, all integrated smoothly to streamline workflows, save time, and shorten learning curve.

FEATURES:
10 Playbacks
8 Attribute Encoders
2 Direct DMX Outputs supporting RDM
Illuminated Playbacks
Connects to Free MagicQ Software - PC, Mac or Linux
64 Universes via Artnet/sACN
Audio Input
10Scene Input
Fits Hand Luggage Restrictions

SPECIFICATIONS:

Hardware Specifications:
Direct DMX Outputs: 2
Fader Playbacks: 10
Attribute Encoders: 8
USB Ports: 5 (4 USB-A output, 1 USB-C input)
Network Ports: 1
Audio Input: (1 channel, 7 band): Yes
10Scene Input: Yes
Kensington Security Lock Fixing: Yes
Working Light Port: Yes
Power Input, Neutrik powerCON TRUE1 110 to 240 VAC

Software Specifications:
Universes: 64
Max Number of DMX Channels: 32768
Max Number of Fixtures Supported: 32768
Max Number of Cues: 5000
Max Number of Cue Stacks: 2000
Max Number of Groups: 5000
Max Number of Palettes: 4096
Number of Media Server Layers Supported: 50 (each different content)
Included Accessories:
USB A-C Cable: 1
Dual Colour Desk lights: 1
Dust Cover: 1
Neutrik powerCON TRUE1 Power Cable: 1

Flight Cased Weights and Dimensions:
Width: TBC
Depth: TBC
Height: TBC
Weight: TBC

Boxed Weights and Dimensions:
Width: TBC
Depth: TBC
Height: TBC
Weight: TBC

Console Weights and Dimensions:
Width: 522mm
Depth: 230mm
Height: 65mm
Height (top of encoders): 78mm
Weight: 3.65kg

ChamSys MagicQ Compact Connect
ChamSys MagicQ Compact Connect
ChamSys MagicQ Compact Connect
