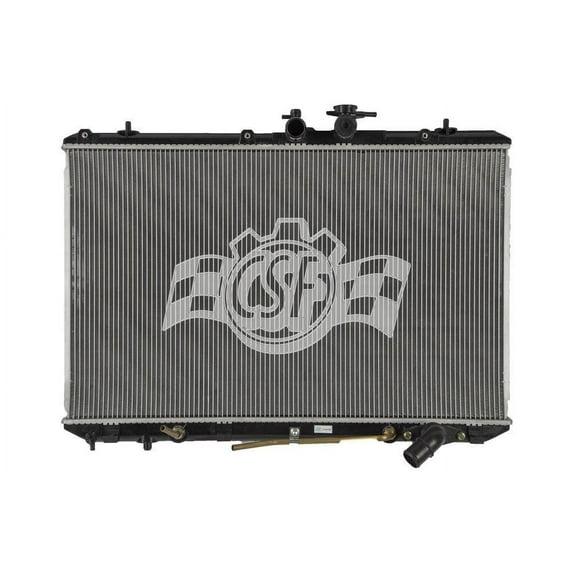

CSF 3504 1 Row Plastic Tank Aluminum Core Radiator

(No ratings yet)

Check if this fits your vehicle

Key item features

Radiator
OEM specified Plastic Tank-Aluminum Core Construction
Tanks are made from Virgin Grade Engineered plastic resins, which are Glass Filled for added Strength & Durability
Gaskets are made from Special Grade EPDM rubber to withstand extreme temperatures of up to -120 Degrees F
Tubes - Welded Type or Latest Generation B-Tube Design
Fins (Heart of Radiator) - High Performance Multi-Louvered Design - OEM Spec
100% leak tested before leaving factory at 150% of operating pressure
Industry Best Packaging - 10 Foot Drop Test Standard
Drop-in Fit
High Performance Transmission Cooler with special Built-in Turburlator, when applicable
All components are installed, torqued, & tested on Radiator during assembly
Tech Note: O.E.M. style Plastic tanks & Aluminum core
Core Width: 30 5/16 in
Core Length: 18 11/16 in
Core Material: Aluminum
Tank Material: Plastic
Box Width (in): 25 7/8
Core Thickness: 7/8 in
Csf Cap Number: 4514
Inlet Diameter: 1 3/8 Centre in
Box Height (in): 7 13/16
Box Length (in): 33
Oil Cooler (in): 14 3/4 (high-effeciency Concentric Type)
Outlet Diameter: 1 3/8 Right in
Box Weight (lbs): 14
Inlet Width (in): 1 5/8
Inlet Length (in): 31
Outlet Width (in): 1 5/8
Outlet Length (in): 31
Down Flow Or Cross Flow Type: Down Flow
Brand: CSF
Manufacturer Part Number: 3504
Part Type: Radiator
