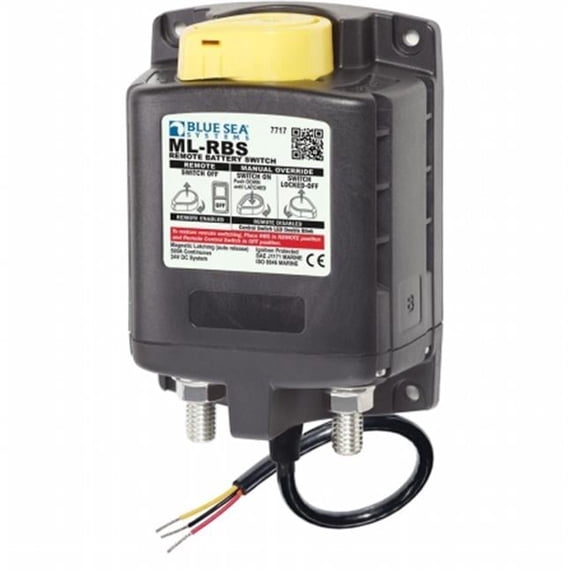

Control your battery switch remotely with the Auto Releasing ML-Series Remote Battery Switch. This switch provides 500A switching and features of current ML Remote Battery Switches, but can be controlled with SPST or SPDT switch for applications where a normally open relay is desired. The manual override knob provides an added level of safety, allowing control with or without power and offering LOCKED OFF capability for servicing. The LED output remotely indicates switch state, and the switch has 0.375 in. -16 tin-plated copper studs for maximum conductivity and corrosion resistance. The 0.875 in. (22 mm.) stud length accepts multiple cable terminals, and the label recesses allow for circuit identification. The silver alloy contacts provide high reliability for switching live loads.
Specifications - Nominal Voltage - 24V DC
- Manual Control - Yes
- Coil Function - Auto releasing
- Mounting - 10
- Amperage Operating Current - 8mA when OFF/13mA when ON
- Amperage Operating Current when changing state -<4A (40 ms)
- Control Circuit Voltage - 20.2 to 32.9V DC
- Continuous Rating - 500A
- Intermittent Rating - 700A (5 min)
- Cranking Rating - 10 sec 2500A
- Cranking Rating - 1 min 1100A
- Minimum Operating Temperature -10 Degree C
- Maximum Operating Temperature - 50 Degree C
- Cable Size to Meet Ratings - 2x (4/0)
- Live Current Switching - 300A at 12V DC 10,000 Cycles
- Master Control Switch Capability - Yes
- Mechanical Endurance - 100,000 Cycles
- Switching Cycles - 100000
- Terminal Ring Diameter Clearance - 1.18 in. (29.97mm)
- Terminal Stud Length - 0.875 in. (22.23mm)
- Terminal Stud Size - 3/8-16 (M10)
- Terminal Stud Torque - 140 in-lb (15.82 Nm)
- Weight - 1.75 lbs.
Features - Manual override knob provides an added level of safety allowing control with or without power and offering LOCKED OFF capability for servicing
- LED output to remotely indicate switch state - requires optional LED
- 0.375 in. -16 tin-plated copper studs for maximum conductivity and corrosion resistance
- 0.875 in. (22 mm.) stud length accepts multiple cable terminals
- Label recesses for circuit identification
- Silver alloy contacts provide high reliability for switching live loads
- Control Circuit Connection - Tinned Wire
- SKU: CW53465
