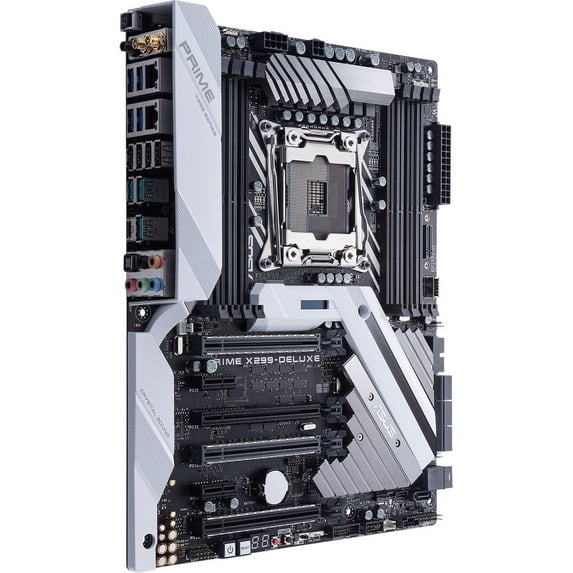

Asus Prime X299-Deluxe Motherboard - PRIME X299-DELUXE

ASUS PRIME X299-DELUXE LGA2066 DDR4 M.2 U.2 THUNDERBOLT USB 3.1 X299 ATX Motherboard with Dual Gigabit LAN and 802.11AD WIFI for Intel® Core™ i7 X-Series Processors Designed for 7th generation LGA2066 socket Intel® Core™ X-Series processors to maximize connectivity and speed with U.2 port, dual M.2, Thunderbolt EX 3, front panel USB 3.1, onboard 802.11AC/AD WIFI, Intel® VROC and Intel® Optane™ Memory compatibility 5-Way Optimization with Auto-Tuning and FanXpert 4 automatically tailors overclocking profiles to your unique build for maximum OC performance and dynamic system cooling Patent-pending SafeSlot (3X) features an injection molding process that integrates metal framing for a stronger, firmly anchored PCIe slot built for heavyweight GPUs Unmatched Personalization with ASUS exclusive AURA Sync RGB lighting, additional RGB header and 3D-printing mounts to customize your build Industry-leading 8-channel HD audio en

---

General Information
Manufacturer: ASUS Computer International
Manufacturer Part Number: PRIME X299-DELUXE
Brand Name: Asus
Product Line: Prime
Product Series: Deluxe
Product Model: X299-DELUXE
Product Name: Prime X299-DELUXE Desktop Motherboard
Product Type: Desktop Motherboard

Additional Product Specifications
Full Product Specifications: Click to view

Processor & Chipset
Chipset Manufacturer: Intel
Total Processor Supported: 1
Processor Socket: Socket R4 LGA-2066
Processor Supported: Core

Memory
Number of Memory Slots: 8
Memory Form Factor: UDIMM, DIMM
Maximum Memory: 128 GB
Memory Technology: DDR4 SDRAM
Memory Speed Supported: 4 GHz (O.C.), 3.60 GHz (O.C.), 2.67 GHz, 2.40 GHz, 2.13 GHz, 4.13 GHz (O.C.)
Intel Optane Memory Ready: Yes

I/O Controller
Controller Type: Serial ATA/600
RAID Supported: Yes
RAID Levels: 10, 5, 1, 0

Audio
Audio Channels: 7.1

Network & Communication
Bluetooth: Yes
Gigabit Ethernet: Yes
Wireless LAN: Yes

I/O Expansions
Number of Total Expansion Slots: 6
Total Number of PCI Express Slots: 6
Number of PCI Express x1 Slots: 2
Number of PCI Express x16 Slots: 4

Interfaces/Ports
Total Number of USB Ports: 12
Number of USB 3.1 Ports: 8
S/PDIF: Yes

Onboard Interfaces
Number of SATA Interfaces: 7
Number of M.2 Interfaces: 2
Total Number of Onboard USB Ports: 7
Number of Onboard USB 3.1 Ports: 3

Physical Characteristics
Form Factor: ATX
Width: 12"
Depth: 9.6"

Miscellaneous
Package Contents: Prime X299-DELUXE Desktop Motherboard User's Manual ASUS Q-Shield 1 x Vertical M.2 Bracket Set 6 x SATA 6Gb/s Cable(s) 1 x M.2 Screw Package 1 x Supporting DVD 1 x ASUS WiGig 802.11ad Moving Antenna 1 x ASUS 2T2R Dual Band Wi-Fi Moving Antennas (Wi-Fi 802.11a/b/g/n/ac compliant) 1 x Fan Extension Card (3 x 4-pin fan out) 1 x Fan Extension card Screw Pack 1 x Fan Extension Card Cable 1 x ThunderboltEX 3 1 x mini DisplayPort Cable 1 x ThunderboltEX 3 GPIO Cable 1 x 3-Way SLI Bridge(s) 1 x SLI HB BRIDGE(2-WAY-M) 1 x Q-Connector 1 x Extension Cable For Addressable LED 3 x Thermistor Cable(s)
Environmentally Friendly: Yes
Environmental Certification: RoHS

Warranty
Limited Warranty: 3 Year
