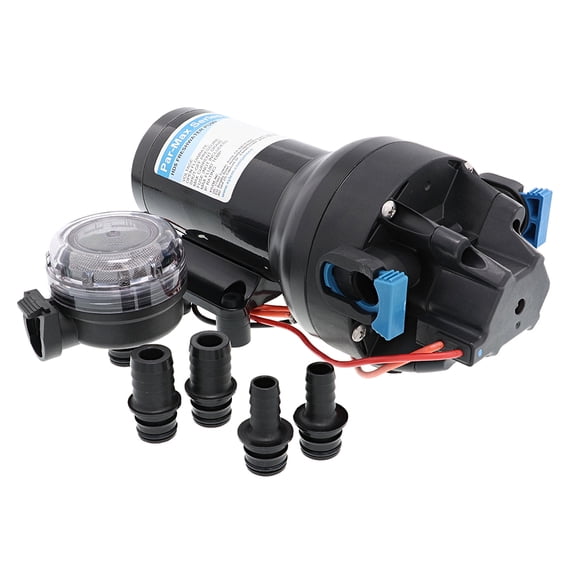

Jabsco P501J-115S-3A

(No ratings yet)

Key item features

Par-Max HD5 Heavy Duty Water Pressure Pump - 12V - 5 GPM - 40 PSIHD (Heavy Duty) models include a wider diameter motor with a powder coated shell, cast aluminum endbells and lower housing to improve pressure capability and life. Available in configurations up to 6 GPM (23 LPM) and 60 PSI (4.1 BAR), these pumps deliver exceptional performance. Standard models provide good performance in an economical footprint. These configurations are available in 1-3 GPM, perfect for vessels with 1-3 outlets. A plastic housing protects the motors on these units from corrosion. Features:
Co-molded diaphragm technology for long life and durability
HD models feature heavy duty, motors and cast aluminum lower housings which allow for longlife, even at high pressures
Efficient and quiet operation
Integrated, sealed pressure switch for on-demand operation
Self-priming allows for installation versatility
Can run dry without damage
Quick connect ports for ease of installation, servicing, and maintenance
Vibration dampening mounting feet
Equipped with integrated bypass module to reduce cycling and provide smoother flowSpecifications:
Motor design: Brushed, permanent magnet TENV
Pumphead upper housing material: Glass fiber reinforced polypropylene
Diaphragm: Co-molded TPV
Check valves: EPDM
Max inlet pressure: 30 PSI (2.1 Bar)
Fluid temperature range: 32°F – 140°F (0°C – 60°C)
Dry self-priming capability: 7ft min (2.13m/min)
Certifications: CE, ISO8846, RCM
Ingress Protection: IPX6WARNING: This product can expose you to chemicals including ANTIMONY OXIDE (ANTIMONY TRIOXIDE) which is known to the State of California to cause cancer. For more information go to P65Warnings.ca.gov. Specifications:
Volts: 12v
Max PSI: 40
Gallons Per Minute: 5 GPM
Box Dimensions: 5"H x 6"W x 18"L WT: 8.4 lbs
UPC: 671880841948Brochure (pdf)

Specs

Gallons per minute
5 GPM
Plumbing pump type
Water Pressure Pump
Power type
Manual
Brand
JABSCO
Features
Heavy Duty
Volts
12 V

Current price is $239.43

Price when purchased online

Free shipping
Free 30-day returns

Walmart Protection Plan by Allstate

(Only one option can be selected at a time)

3-Year Plan - $29.00

4-Year Plan - $43.00

How do you want your item?

Ships to

Arrives by Sat, Jun 20

Order within 7 hr 31 min

Sold and shipped by Boating Store

4.657430730478589 stars out of 5, based on 1191 seller reviews(4.7)

Free 30-day returns

More seller options (13)

Starting from $246.99

About this item

Product details

Jabsco P501J-115S-3A

Par-Max HD5 Heavy Duty Water Pressure Pump - 12V - 5 GPM - 40 PSIHD (Heavy Duty) models include a wider diameter motor with a powder coated shell, cast aluminum endbells and lower housing to improve pressure capability and life. Available in configurations up to 6 GPM (23 LPM) and 60 PSI (4.1 BAR), these pumps deliver exceptional performance. Standard models provide good performance in an economical footprint. These configurations are available in 1-3 GPM, perfect for vessels with 1-3 outlets. A plastic housing protects the motors on these units from corrosion. Features:
Co-molded diaphragm technology for long life and durability
HD models feature heavy duty, motors and cast aluminum lower housings which allow for longlife, even at high pressures
Efficient and quiet operation
Integrated, sealed pressure switch for on-demand operation
Self-priming allows for installation versatility
Can run dry without damage
Quick connect ports for ease of installation, servicing, and maintenance
Vibration dampening mounting feet
Equipped with integrated bypass module to reduce cycling and provide smoother flowSpecifications:
Motor design: Brushed, permanent magnet TENV
Pumphead upper housing material: Glass fiber reinforced polypropylene
Diaphragm: Co-molded TPV
Check valves: EPDM
Max inlet pressure: 30 PSI (2.1 Bar)
Fluid temperature range: 32°F – 140°F (0°C – 60°C)
Dry self-priming capability: 7ft min (2.13m/min)
Certifications: CE, ISO8846, RCM
Ingress Protection: IPX6WARNING: This product can expose you to chemicals including ANTIMONY OXIDE (ANTIMONY TRIOXIDE) which is known to the State of California to cause cancer. For more information go to P65Warnings.ca.gov. Specifications:
Volts: 12v
Max PSI: 40
Gallons Per Minute: 5 GPM
Box Dimensions: 5"H x 6"W x 18"L WT: 8.4 lbs
UPC: 671880841948Brochure (pdf)

info:

We aim to show you accurate product information. Manufacturers, suppliers and others provide what you see here, and we have not verified it.

Specifications

Gallons per minute

5 GPM

Plumbing pump type

Water Pressure Pump

Power type

Manual

Brand

JABSCO

Warranty

Warranty information

We offer a 30 day money back guarantee on the performance of the item, unless otherwise stated in the item listing.

Please be aware that the warranty terms on items offered for sale by third party Marketplace sellers may differ from those displayed in this section (if any). To confirm warranty terms on an item offered for sale by a third party Marketplace seller, please use the 'Contact seller' feature on the third party Marketplace seller's information page and request the item's warranty terms prior to purchase.
