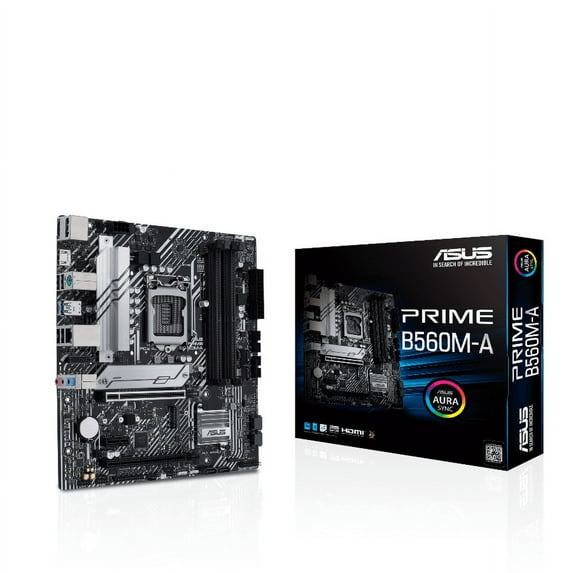

ASUS Prime B560M-A LGA 1200 (Intel 11th/10th Gen) micro ATX motherboard (PCIe 4.0,2x M.2 slots, 8 power stages, 1 Gb LAN, DP, dual HDMI,USB 3.2 Gen 2 Type-C,V-M.2-Key E slot for Wi-Fi,Aura Sync RGB)

SPECIFICATIONS

Intel LGA 1200 Socket: Designed to unleash the maximum performance of 11th Gen Intel Core processors

Comprehensive Cooling: Enhanced VRM heatsink, flexible M.2 heatsink, PCH heatsink, hybrid fan headers and Fan Xpert 2plus

Enhanced power solution: 8 power stages, alloy chokes and durable capacitors for stable power delivery

Boosted Memory Performance: ASUS OptiMem proprietary trace layout allows memory kits to operate at higher frequencies with lower voltages to maximize system performance. Support memory overclocking up to 5000 MHz

Ultra Fast Connectivities: PCIe 4.0, Intel 1 Gb Ethernet, rear USB 3.2 Gen 2 (Type-A &Type-C) and V-M.2 Key E slot for Wi-Fi



CHIPSET

BIOS: 128Mb AMI UEFI Bios

Manageability: WOL

North Bridge: Intel B560



CPU SUPPORT

Socket Type: LGA 1200

Intel CPU Support: Core i7, Core i5, Core i3, Celeron, Pentium, Core i9



MEMORY SPECIFICATIONS

Maximum Memory Supported Per Slot: 32GB

Memory Type: DDR4-2133, DDR4-2400, DDR4-2666, DDR4-2933, DDR4-3200, DDR4-2800

Memory Speeds Supported: 5000(OC)/4800(OC)/4600(OC)/4400(OC)/4266(OC)/4000(OC)/3733(OC)/3600(OC)/3466(OC)/3333(OC)/3200/2933/2800/2666/2400/2133 MHz

Memory Slots: 4 x 288pin DIMM

Max Memory Supported: 128GB

Memory Channel Support: Dual Channel



VIDEO SPECIFICATIONS

Onboard Graphic Chipset: Requires CPU with Integrated Graphics



STORAGE SPECIFICATIONS

M.2 Port Type: 2242, 2260, 2280

SATA Express: 2 x M.2 Socket 3, M Key

SATA 6Gb/s: 6



AUDIO SPECIFICATIONS

Audio Channels: 7.1



NETWORKING

LAN Chipset: Intel I219-V 1Gb

LAN Speed: 10/100/1000Mbps



EXPANSION SLOTS

PCI Express 4.0 x16: 1

PCI Express 3.0 x16: 1

PCI Express x1: 1



BACK PANEL PORTS

Legacy Ports: 1 x PS/2

LAN Ports: 1 x 10/100/1000 RJ-45 LAN

Audio Ports: 1 x 3.5 mm Microphone, 1 x 3.5 mm Line-In, 1 x 3.5 mm Line-Out

Video Connectors: 1 x DisplayPort 1.4, 2 x HDMI 2.0

USB 2.0: 4 x USB 2.0 (Type-A)

USB 3.1: 1 x USB 3.2 (Gen 2 Type-C), 1 x USB 3.2 (Gen 2 Type-A)



INTERNAL I/O & CONNECTORS

Headers: 2 x System Fan Header, 2 x CPU Fan Header



USB

2 x USB 3.1 Headers (supports 2 additional USB 3.1 Gen1 ports)

2 x USB 2.0 Headers (supports 3 additional USB 2.0 ports)



POWER

Power Connectors: 1 x 24-pin ATX Connector, 1 x 8-pin +12 V Connector

ATX Connector: 24-pin ATX Power Connector



PHYSICAL SPECIFICATIONS

Form Factor: microATX
