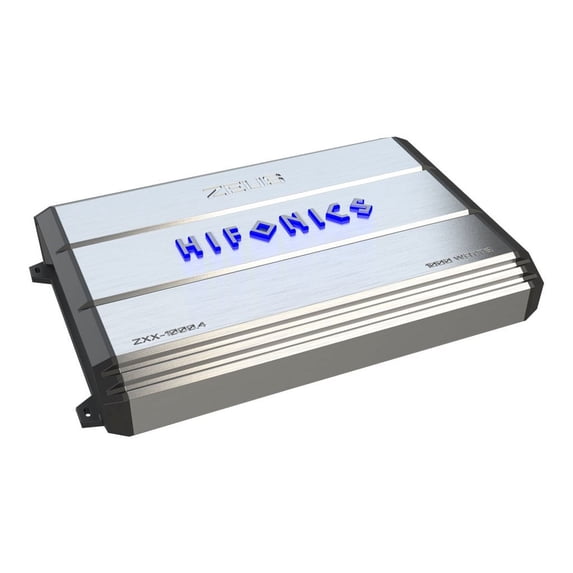

Hifonics ZXX-1000.4 1000 Watt 4 Channel Class A/B Bridgeable Car Amp Amplifier
Hifonics ZXX-1000.4 1000 Watt 4 Channel Class A/B Bridgeable Car Amp Amplifier
Hero image 0 of Hifonics ZXX-1000.4 1000 Watt 4 Channel Class A/B Bridgeable Car Amp Amplifier, 0 of 5
Hifonics

Hifonics ZXX-1000.4 1000 Watt 4 Channel Class A/B Bridgeable Car Amp Amplifier

37 ratings
Hifonics ZXX-1000.4 1000 Watt 4 Channel Class A/B Bridgeable Car Amp AmplifierHifonics ZXX 1000 4 1000 Watt 4 Channel Class A B Bridgeable Car Amp AmplifierHifonics ZXX 1800 1D Zeus Series Monoblock Class D Amp 1 800 WattsHifonics Zeus 2400 Watt Max Class D Monoblock Car Audio Amplifier ZXX 2400 1DHifonics ZXX32001D Zues 3200 Watt Mono D Class Amplifier 1 Ohm
Size1000W

Key item features

  • Dynamic Power Delivery: A 4-channel, bridgeable Class A/B amplifier provides 1000 watts max. Outputs are 4x125W (4 Ohms), 4x250W (2 Ohms), and 2x500W (bridged 4 Ohms) for versatile configurations.
  • Flexible Audio Filtering: Variable electronic 12dB low-pass (30-250Hz) and high-pass (60-1.2KHz) crossovers. Offers 0-12dB bass boost, with a wide 10Hz-45KHz frequency response and over 90dB signal-to-noise ratio.
  • Efficient Power Design: Dual coil PWM MOSFET power supply ensures constant voltage with minimal heat generation. An old-school aluminum Hifonics heat sink provides superior heat dissipation for reliable operation.
  • Robust Connections: Nickel-plated inputs with hex screw terminals resist impact and erosion. Molded, angled RCA inputs/outputs simplify wiring, allowing multiple amplifiers to daisy-chain for expanded systems.
  • Safety & Dimensions: Diagnostic indicators monitor thermal, overload, DC, and speaker short protection with lighted feedback. The unit measures 15.7x2.4x10 inches, weighs 9 pounds, and requires 4 gauge power wire.
Generated by AI

Specs

Brand, HifonicsRms power rating, 1000 WChannels, 4Impedance, 2 ohmPeak audio power handling, 125 WInput/output type, RCA

About this item

Product details

? Freq resp: 10Hz-45kHz;? Hifonics(R)-logo-illuminated heat sink;? Bridgeable;? Low-noise preamp;? PWM MOSFET power supply;? Nickel-plated inputs;? Molded & angled RCA outputs;? DC, short circuit, thermal & overload protection diagnostics;? 1,000W max;? Dim: 2.4H x 15.7W x 10D;
  • Nickel plated inputs are high temperature impact resistant with hex screw terminals that allow for secure connections and are erosion resistant
  • Maximum low voltage comes into the amplifier circuit with minimal distortion
  • Power at 2 Ohms: 4 x 250 watts
  • Bass boost: 0~12dB
  • Low pass crossover 12dB per octave: 30Hz 250Hz
  • High pass crossover 12dB per octave: 60Hz 1.2KHz
  • Crossover type: Variable electronic
  • Frequency response: 10Hz 45KHz
  • Signal to noise ratio: >90dB
  • Variable Voltage: 6 volt 0.2 volt
  • Class: A/B
  • Specifications:
  • Hifonics logo illuminates when the amplifier is powered
  • Diagnostic indicators monitor thermal, overload, DC, and speaker short protection with lighted indicators on the amplifier end panel
  • Molded secure connections for all system wires and angled for ease of access for installation
  • RCA outputs to daisy chain multiple amplifier to eliminate additional signal cables from the source unit
  • Dual coil pulse width modulated power supply keeps voltage constant through the ultra fi output devices
  • Old school aluminum Hifonics heat sink for superior heat dissipation
  • PWM MOSFET power supply gives stable power through the PC board with minimal heat generation
  • Class A/B designed to be high sound quality with minimal distortion
  • Flexible installation of 2, 3, or 4 channel modes allows this amplifier to run in two channel or bridged mono mode.
  • Low level RCA inputs and outputs for highest sound quality connection
  • Power at 4 Ohms: 4 x 125 watts
  • Bridged at 4 Ohms: 2 x 500 watts
  • Audio input and output: RCA Jack
  • Manufacturer warranty: 1-year warranty
  • Weight: 9 pounds
  • Dimensions: 15.7 x 2.4 x 10 inches
  • Fusing: 35 amps x 3
  • Speaker terminal wire gauge: 14 gauge
  • Power terminal 12V/GND: 4 gauge
  • Total channels: 4
