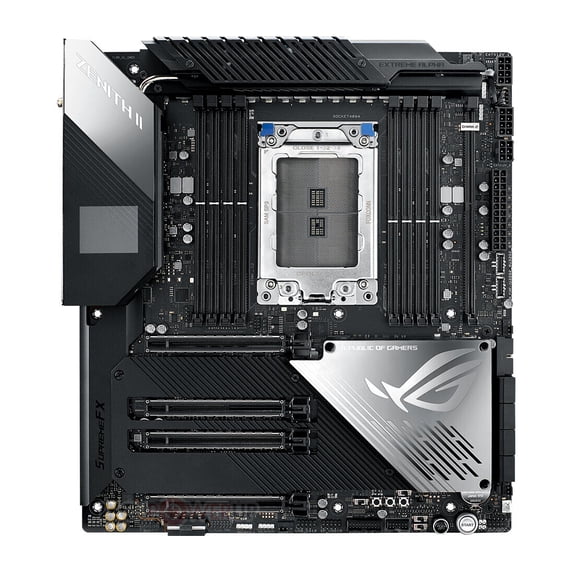

Asus ROG Zenith II Extreme Alpha Desktop Motherboard - AMD Chipset - Socket sTRX4 - 256 GB DDR4 SDRAM Maximum RAM - UDIMM, DIMM - 8 x Memory Slots - Gigabit Ethernet - Wireless LAN - IEEE 802.11ax - 1
Asus ROG Zenith II Extreme Alpha Desktop Motherboard - AMD Chipset - Socket sTRX4 - 256 GB DDR4 SDRAM Maximum RAM - UDIMM, DIMM - 8 x Memory Slots - Gigabit Ethernet - Wireless LAN - IEEE 802.11ax - 1
Hero image 0 of Asus ROG Zenith II Extreme Alpha Desktop Motherboard - AMD Chipset - Socket sTRX4 - 256 GB DDR4 SDRAM Maximum RAM - UDIMM, DIMM - 8 x Memory Slots - Gigabit Ethernet - Wireless LAN - IEEE 802.11ax - 1, 0 of 5

Asus ROG Zenith II Extreme Alpha Desktop Motherboard - AMD Chipset - Socket sTRX4 - 256 GB DDR4 SDRAM Maximum RAM - UDIMM, DIMM - 8 x Memory Slots - Gigabit Ethernet - Wireless LAN - IEEE 802.11ax - 1

|17 ratings

Key item features

  • Ready for AMD 3rd Gen Ryzen™ Threadripper™ Processors: Maximize connectivity and speed with up to five M.2 drives, USB3.2 Gen2x2 and AMD StoreMI
  • Robust power delivery: Optimized power solution with 16 Infineon TDA21490 power stages, ProCool II power connectors, microfine alloy chokes and 10K capacitors
  • Comprehensive thermal design: Active-cooling VRM heatsink, PCIe-zone M.2 aluminum heatsink, backplate, Fan Extension Card II and water-cooling zone
  • High-performance networking: Onboard Aquantia® 10 Gbps Ethernet, Wi-Fi 6 (802.11ax) with MU-MIMO support, and GameFirst V technology
  • Unmatched personalization: Color OLED display and ASUS-exclusive Aura Sync RGB lighting, including two additional RGB headers and two addressable headers
  • Industry-leading ROG audio: SupremeFX S1220 and ESS® SABRE9018Q2C for enthusiast-grade audio performance, featuring Japanese capacitors
  • DIY-friendly design: Pre-mounted I/O shield, ASUS SafeSlot, BIOS FlashBack™ and FlexKey
  • CPU Build in AMD Socket sTRX4 for 3rd Gen AMD Ryzen™ Threadripper™ Series Desktop Processors Supports CPU up to 64 cores * Refer to www.asus.com for CPU support list
  • Chipset AMD TRX40
  • Memory AMD Ryzen™ Threadripper™ Processors 8 x DIMM, Max. 256GB, DDR4 4733(O.C)/4600(O.C)/4400(O.C)/4333(O.C.)/4266(O.C.)/4133(O.C.)/3800(O.C.)/3733(O.C.)/3400(O.C.)/2800/2666/2400/2133 MHz ECC and non-ECC, Un-buffered Memory Quad Channel Memory Architecture * Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists).
  • Multi-GPU Support Supports NVIDIA® 3-Way SLI® Technology Supports AMD 3-Way CrossFireX™ Technology
  • Expansion Slots 3rd Gen AMD Ryzen™ Threadripper™ Series Desktop processors 4 x PCIe 4.0 (x16, x16/x16, x16/x8/x16, x16/x8/x16/x8)
  • Storage 3rd Gen AMD Ryzen™ Threadripper™ Series Desktop processors : 1 x ROG DIMM.2 Module supports 2 M.2 Socket 3 , with M key, type 2242/2260/2280/22110 storage devices support(SATA & PCIe 4.0 x4 mode) 2 x M.2 Socket 3, with M Key, type 2242/2260/2280 (PCIe 4.0 x4 mode)*1 3rd Gen AMD Ryzen™ Threadripper™ Series Desktop processors : 1 x M.2 Socket 3, with M Key, type 2242/2260/2280 (PCIe 4.0 x4/x2 mode)*2 Support Raid 0, 1, 10 AMD TRX40 chipset : 4 x SATA 6Gb/s port(s), ASMedia® SATA 6Gb/s controller : 4 x SATA 6Gb/s port(s),
  • LAN Intel® I211-AT, 1 x Gigabit LAN Controller(s) Aquantia AQC-107 10G Anti-surge LANGuard ROG GameFirst V Technology
  • Wireless Data Network Intel® Wi-Fi 6 AX200 Wi-Fi 802.11 ax, Bluetooth® 5.0 Supports dual band frequency 2.4/5 GHz Supports 2x2 MU-MIMO Supports channel bandwidth: HT20/HT40/HT80/HT160. Up to 1.73Gbps transfer speed
  • Bluetooth Bluetooth® 5.0
  • Audio ROG SupremeFX 8-Channel High Definition Audio CODEC S1220 - Impedance sense for front and rear headphone outputs - Supports : Jack-detection, Multi-streaming, Front Panel MIC Jack-retasking - High quality 120 dB SNR stereo playback output 108 dB SNR recording input - ESS® ESS9018Q2C Audio Feature : - SupremeFX Shielding™ Technology - Sonic Studio III + Sonic Studio Virtual Mixer - DTS® Sound Unbound - LED-illuminated design - Brighten up your build with the gorgeous illuminated audio trace path. - Sonic Radar III
  • USB Ports 3rd Gen AMD Ryzen™ Threadripper™ Processors : 4 x USB 3.2 Gen 2 port(s) (4 at back panel, red) AMD TRX40 chipset : 2 x USB 3.2 Gen 2 front panel connector port(s) AMD TRX40 chipset : 3 x USB 3.2 Gen 2 port(s) (3 at back panel, red, 2 x Type-A+1 x Type-C) AMD TRX40 chipset : 3 x USB 2.0 port(s) ASMedia® USB 3.2 Gen 1 controller : 8 x USB 3.2 Gen 1 port(s) (4 at back panel, blue) ASMedia® USB 3.2 Gen2x2 controller : 1 x USB 3.2 Gen 2x2 (up to 20Gbps) port(s) (1 at back panel, , Type-C)
  • Back I/O Ports 1 x LAN (RJ45) port(s) 1 x USB 3.2 Gen 2x2 (up to 20Gbps) ports (Type-C) 4 x USB 3.2 Gen 1 blue 5 x USB 3.2 Gen 2 (red) (3 x Type-A+1 x Type-C) 1 x Optical S/PDIF out 1 x Clear CMOS button(s) 1 x USB BIOS FlashBack™ Button(s) 5 x LED-illuminated audio jacks 1 x Aquantia AQC-107 10G LAN port
  • Internal I/O Ports 2 x Aura RGB Strip Header 2 x Addressable Gen 2 header(s) 2 x USB 3.2 Gen 1(up to 5Gbps) connector(s) support(s) additional 4 USB 3.2 Gen 1 port(s) 2 x USB 2.0 connector(s) support(s) additional 3 USB 2.0 port(s) 1 x M.2 Socket 3 with M key, type 2242/2260/2280 storage devices(support PCIe 4.0 x4 mode) 1 x M.2 Socket 3 with M key, type 2242/2260/2280 storage devices(support PCIe 4.0 x4/x2 mode) 1 x TPM header 8 x SATA 6Gb/s connector(s) 1 x CPU Fan connector(s) 1 x CPU OPT Fan connector(s) 2 x Chassis Fan connector(s) 1 x H_AMP fan connector 2 x W_PUMP+ connector 1 x WB_SENSOR 1 x 6-pin EATX 12 V Power connector 1 x 24-pin EATX Power connector(s) 2 x 8-pin EATX 12V Power connectors 1 x 4-pin EZ_PLUG Power connector(s) 1 x Front panel audio connector(s) (AAFP) 7 x ProbeIt Measurement Points 1 x BIOS Switch button(s) 1 x Node Connector(s) 1 x LN2 Mode jumper(s) 1 x Safe Boot button 1 x ReTry button 1 x M.2 socket pre-installed with a Wi-Fi/Bluetooth module 1 x W_IN header 1 x W_OUT header 1 x W_FLOW header 2 x USB 3.2 Gen 2 front panel connector 1 x Speaker connector 1 x DIMM.2 Slot supports 2 M.2 drives (2242-22110) 1 x RSVD Switch 1 x Start button 1 x FlexKey button 1 x FS Mode switch 1 x M.2_3 cold storage Switch 1 x Chipset Fan Header 1 x VRM_HS_FAN Header
  • BIOS 2 x 128 Mb Flash ROM, UEFI AMI BIOS, PnP, WfM2.0, SM BIOS 3.0, ACPI 7.1
  • Manageability WOL , PXE
  • Operating System Windows® 10 64-bit
  • Form Factor Extended ATX Form Factor 12.2 inch x 10.9 inch ( 31 cm x 27.7 cm )

Specs

Cpu socket type, Socket sTRX4Motherboard form factor, EATXMemory configuration, 256 GBProc. brand, AMDMax RAM, 256 GBInputs/Outputs, USB-C Gen2, USB 3.2 Gen 1, USB 3.2 Gen 2, USB-C Gen 2x2 - 10 Gigabit LAN, Gigabit LAN, Wi-Fi 6, Bluetooth - HD Audio (8-channel)

About this item

Product details

ROG Zenith II Extreme Alpha is locked, loaded and ready to unleash the savage computing power of groundbreaking CPUs. Freshly equipped with 16 high-current power stages, ROG Zenith II Extreme Alpha delivers supreme efficiency and enhanced headroom for overclocking, empowering you to push performance as never before.
  • Ready for AMD 3rd Gen Ryzen™ Threadripper™ Processors: Maximize connectivity and speed with up to five M.2 drives, USB3.2 Gen2x2 and AMD StoreMI
  • Robust power delivery: Optimized power solution with 16 Infineon TDA21490 power stages, ProCool II power connectors, microfine alloy chokes and 10K capacitors
  • Comprehensive thermal design: Active-cooling VRM heatsink, PCIe-zone M.2 aluminum heatsink, backplate, Fan Extension Card II and water-cooling zone
  • High-performance networking: Onboard Aquantia® 10 Gbps Ethernet, Wi-Fi 6 (802.11ax) with MU-MIMO support, and GameFirst V technology
  • Unmatched personalization: Color OLED display and ASUS-exclusive Aura Sync RGB lighting, including two additional RGB headers and two addressable headers
  • Industry-leading ROG audio: SupremeFX S1220 and ESS® SABRE9018Q2C for enthusiast-grade audio performance, featuring Japanese capacitors
  • DIY-friendly design: Pre-mounted I/O shield, ASUS SafeSlot, BIOS FlashBack™ and FlexKey
  • CPU Build in AMD Socket sTRX4 for 3rd Gen AMD Ryzen™ Threadripper™ Series Desktop Processors Supports CPU up to 64 cores * Refer to www.asus.com for CPU support list
  • Chipset AMD TRX40
  • Memory AMD Ryzen™ Threadripper™ Processors 8 x DIMM, Max. 256GB, DDR4 4733(O.C)/4600(O.C)/4400(O.C)/4333(O.C.)/4266(O.C.)/4133(O.C.)/3800(O.C.)/3733(O.C.)/3400(O.C.)/2800/2666/2400/2133 MHz ECC and non-ECC, Un-buffered Memory Quad Channel Memory Architecture * Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists).
  • Multi-GPU Support Supports NVIDIA® 3-Way SLI® Technology Supports AMD 3-Way CrossFireX™ Technology
  • Expansion Slots 3rd Gen AMD Ryzen™ Threadripper™ Series Desktop processors 4 x PCIe 4.0 (x16, x16/x16, x16/x8/x16, x16/x8/x16/x8)
  • Storage 3rd Gen AMD Ryzen™ Threadripper™ Series Desktop processors : 1 x ROG DIMM.2 Module supports 2 M.2 Socket 3 , with M key, type 2242/2260/2280/22110 storage devices support(SATA & PCIe 4.0 x4 mode) 2 x M.2 Socket 3, with M Key, type 2242/2260/2280 (PCIe 4.0 x4 mode)*1 3rd Gen AMD Ryzen™ Threadripper™ Series Desktop processors : 1 x M.2 Socket 3, with M Key, type 2242/2260/2280 (PCIe 4.0 x4/x2 mode)*2 Support Raid 0, 1, 10 AMD TRX40 chipset : 4 x SATA 6Gb/s port(s), ASMedia® SATA 6Gb/s controller : 4 x SATA 6Gb/s port(s),
  • LAN Intel® I211-AT, 1 x Gigabit LAN Controller(s) Aquantia AQC-107 10G Anti-surge LANGuard ROG GameFirst V Technology
  • Wireless Data Network Intel® Wi-Fi 6 AX200 Wi-Fi 802.11 ax, Bluetooth® 5.0 Supports dual band frequency 2.4/5 GHz Supports 2x2 MU-MIMO Supports channel bandwidth: HT20/HT40/HT80/HT160. Up to 1.73Gbps transfer speed
  • Bluetooth Bluetooth® 5.0
  • Audio ROG SupremeFX 8-Channel High Definition Audio CODEC S1220 - Impedance sense for front and rear headphone outputs - Supports : Jack-detection, Multi-streaming, Front Panel MIC Jack-retasking - High quality 120 dB SNR stereo playback output 108 dB SNR recording input - ESS® ESS9018Q2C Audio Feature : - SupremeFX Shielding™ Technology - Sonic Studio III + Sonic Studio Virtual Mixer - DTS® Sound Unbound - LED-illuminated design - Brighten up your build with the gorgeous illuminated audio trace path. - Sonic Radar III
  • USB Ports 3rd Gen AMD Ryzen™ Threadripper™ Processors : 4 x USB 3.2 Gen 2 port(s) (4 at back panel, red) AMD TRX40 chipset : 2 x USB 3.2 Gen 2 front panel connector port(s) AMD TRX40 chipset : 3 x USB 3.2 Gen 2 port(s) (3 at back panel, red, 2 x Type-A+1 x Type-C) AMD TRX40 chipset : 3 x USB 2.0 port(s) ASMedia® USB 3.2 Gen 1 controller : 8 x USB 3.2 Gen 1 port(s) (4 at back panel, blue) ASMedia® USB 3.2 Gen2x2 controller : 1 x USB 3.2 Gen 2x2 (up to 20Gbps) port(s) (1 at back panel, , Type-C)
  • Back I/O Ports 1 x LAN (RJ45) port(s) 1 x USB 3.2 Gen 2x2 (up to 20Gbps) ports (Type-C) 4 x USB 3.2 Gen 1 blue 5 x USB 3.2 Gen 2 (red) (3 x Type-A+1 x Type-C) 1 x Optical S/PDIF out 1 x Clear CMOS button(s) 1 x USB BIOS FlashBack™ Button(s) 5 x LED-illuminated audio jacks 1 x Aquantia AQC-107 10G LAN port
  • Internal I/O Ports 2 x Aura RGB Strip Header 2 x Addressable Gen 2 header(s) 2 x USB 3.2 Gen 1(up to 5Gbps) connector(s) support(s) additional 4 USB 3.2 Gen 1 port(s) 2 x USB 2.0 connector(s) support(s) additional 3 USB 2.0 port(s) 1 x M.2 Socket 3 with M key, type 2242/2260/2280 storage devices(support PCIe 4.0 x4 mode) 1 x M.2 Socket 3 with M key, type 2242/2260/2280 storage devices(support PCIe 4.0 x4/x2 mode) 1 x TPM header 8 x SATA 6Gb/s connector(s) 1 x CPU Fan connector(s) 1 x CPU OPT Fan connector(s) 2 x Chassis Fan connector(s) 1 x H_AMP fan connector 2 x W_PUMP+ connector 1 x WB_SENSOR 1 x 6-pin EATX 12 V Power connector 1 x 24-pin EATX Power connector(s) 2 x 8-pin EATX 12V Power connectors 1 x 4-pin EZ_PLUG Power connector(s) 1 x Front panel audio connector(s) (AAFP) 7 x ProbeIt Measurement Points 1 x BIOS Switch button(s) 1 x Node Connector(s) 1 x LN2 Mode jumper(s) 1 x Safe Boot button 1 x ReTry button 1 x M.2 socket pre-installed with a Wi-Fi/Bluetooth module 1 x W_IN header 1 x W_OUT header 1 x W_FLOW header 2 x USB 3.2 Gen 2 front panel connector 1 x Speaker connector 1 x DIMM.2 Slot supports 2 M.2 drives (2242-22110) 1 x RSVD Switch 1 x Start button 1 x FlexKey button 1 x FS Mode switch 1 x M.2_3 cold storage Switch 1 x Chipset Fan Header 1 x VRM_HS_FAN Header
  • BIOS 2 x 128 Mb Flash ROM, UEFI AMI BIOS, PnP, WfM2.0, SM BIOS 3.0, ACPI 7.1
  • Manageability WOL , PXE
  • Operating System Windows® 10 64-bit
  • Form Factor Extended ATX Form Factor 12.2 inch x 10.9 inch ( 31 cm x 27.7 cm )
info:
We aim to show you accurate product information. Manufacturers, suppliers and others provide what you see here, and we have not verified it.

Specifications

Cpu socket type

Socket sTRX4

Motherboard form factor

EATX

Memory configuration

256 GB

Proc. brand

AMD

Warranty

Warranty information

3 Year
