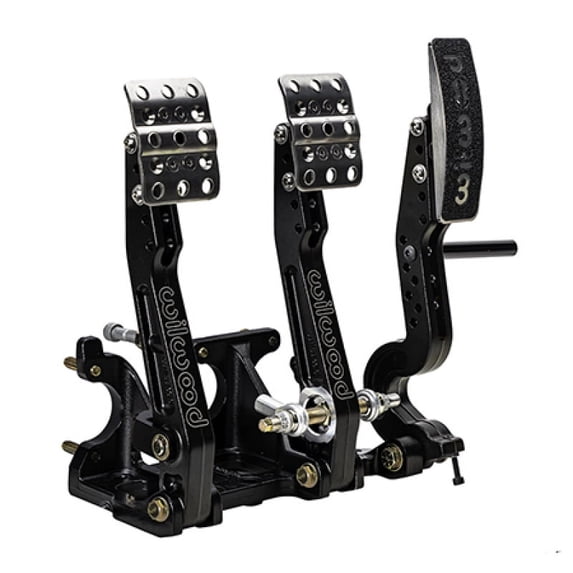

Hero image 0 of Wilwood 340-16604 Adjustable 4.75-5.75:1 Ratio Tru-Bar Floor Mount Brake Clutch & Throttle Pedals w/o Throttle Linkage, 0 of 4

Wilwood

Wilwood 340-16604 Adjustable 4.75-5.75:1 Ratio Tru-Bar Floor Mount Brake Clutch & Throttle Pedals w/o Throttle Linkage

(No ratings yet)

Key item features

Wilwood 340-16604 Adjustable 4.75-5.75:1 Ratio Tru-Bar Floor Mount Brake Clutch & Throttle Pedals w/o Throttle Linkage
Wilwood pedal assemblies from Accesspeed provide race cars and custom fabricated street cars with a solid foundation for high-performance braking systems. Some Wilwood pedal assemblies include master cylinder mounts.
Engineered and manufactured at Wilwood’s California facility from forged aluminum, there are a variety of pedal ratios, pad offsets, master cylinder mounting configurations, and bias adjustments available in single, double, and triple pedal combos, all available from Accesspeed.
Choose from pedal configurations for dedicated race applications with Wilwood's Tru-Bar Trunnion Bearing Bias Balancing System. Available from Accesspeed in forward swing, reverse swing and floor mount with single, dual or triple pedal assemblies.
Accesspeed does not accept returns for assembled, installed or damaged merchandise. Please verify that this product will fit prior to ordering. Accesspeed does not pay for shipping for returned items. If there is a problem with the item you ordered, we will work with the manufacturer to replace the item for you. Our warehouse uses state-of-the-art video for our packaging and assembly area to verify that we ship exactly what you order.
New

Specs

Brake system replacement part & hardware type, Brake Clutch & Throttle PedalsVehicle fitment type, UniversalAutomotive parts division, PerformanceVehicle type, CarBrand, WilwoodMaterial, aluminum

About this item

Product details

Wilwood 340-16604 Adjustable 4.75-5.75:1 Ratio Tru-Bar Floor Mount Brake Clutch & Throttle Pedals with o Throttle Linkage *** Wilwood adjustable ratio Tru-Bar brake pedal from Accesspeed is available in a floor mount throttle, brake and clutch pedal assembly for rear engine cars. Pedal head adjusts vertically to provide a 4.75, 5.25, or 5.75:1 ratio for more feel or less pedal effort. A clutch and two brake master cylinders mount to the assembly, with a friction-free, trunnion based adjustable Tru-Bar balance bar providing front to rear brake bias fine tuning. The throttle pedal includes a pull rod for rear engine applications. The non-skid waffled pedal pads can be laterally adjusted to place the clutch and brake from 3.75 to 5.75 inches on center for driver preference. The pedals feature a lightweight aluminum frame, with high strength reinforced I-beam style forged pedal arms. The Tru-Bar incorporates a positive detent stop every full turn to maintain adjustment position and can be locked in place with the included jam nut, or used with an optional remote knob, which is an Accesspeed customer favorite for quick on-track adjustments. Tru-Bar pedals utilize a fixed trunnion bearing in the pedal arm, with spherical rod-end bearing pushrod attachments reducing compliance and friction for more accurate brake feel. Tru-Bar pedals utilize the same chassis and master cylinder mounting as Wilwood balance bar style pedals. This pedal accepts three Wilwood 2.25-inch vertical mount flange single outlet master cylinders, available separately in a variety of styles and bore sizes from Accesspeed.

Wilwood 340-16604 Adjustable 4.75-5.75:1 Ratio Tru-Bar Floor Mount Brake Clutch & Throttle Pedals w/o Throttle Linkage
Wilwood pedal assemblies from Accesspeed provide race cars and custom fabricated street cars with a solid foundation for high-performance braking systems. Some Wilwood pedal assemblies include master cylinder mounts.
Engineered and manufactured at Wilwood’s California facility from forged aluminum, there are a variety of pedal ratios, pad offsets, master cylinder mounting configurations, and bias adjustments available in single, double, and triple pedal combos, all available from Accesspeed.
Choose from pedal configurations for dedicated race applications with Wilwood's Tru-Bar Trunnion Bearing Bias Balancing System. Available from Accesspeed in forward swing, reverse swing and floor mount with single, dual or triple pedal assemblies.
Accesspeed does not accept returns for assembled, installed or damaged merchandise. Please verify that this product will fit prior to ordering. Accesspeed does not pay for shipping for returned items. If there is a problem with the item you ordered, we will work with the manufacturer to replace the item for you. Our warehouse uses state-of-the-art video for our packaging and assembly area to verify that we ship exactly what you order.
New

info:

We aim to show you accurate product information. Manufacturers, suppliers and others provide what you see here, and we have not verified it.

Specifications

Brake system replacement part & hardware type

Brake Clutch & Throttle Pedals

Vehicle fitment type

Universal

Automotive parts division

Performance

Vehicle type

Car

Warranty

Warranty information

If a manufacturer warranty issue arises, the manufacturer will work directly with the Buyer to resolve the issue. Except under warranty, this product is not returnable to Accesspeed or Wilwood if it has been assembled, installed, used and/or damaged in any way. Images and product descriptions are supplied by manufacturer and are subject to change without notice.

Please be aware that the warranty terms on items offered for sale by third party Marketplace sellers may differ from those displayed in this section (if any). To confirm warranty terms on an item offered for sale by a third party Marketplace seller, please use the 'Contact seller' feature on the third party Marketplace seller's information page and request the item's warranty terms prior to purchase.
