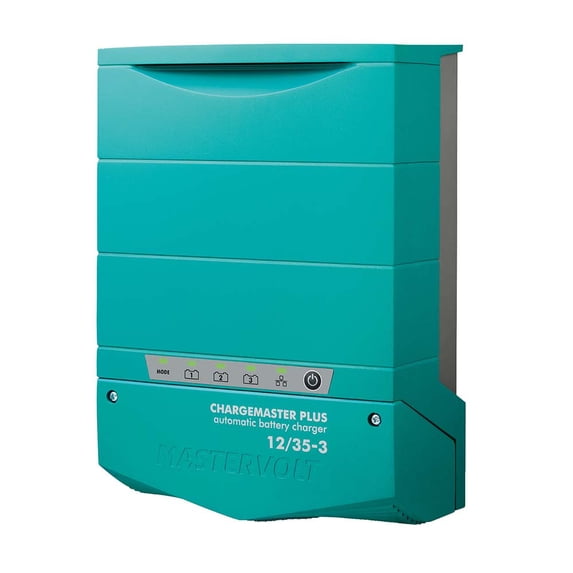

Hero image 0 of Mastervolt ChargeMaster Plus 35A 12v Output 120/230V Input C-Zone MasterBus NMEA, 0 of 2

Mastervolt ChargeMaster Plus 35A 12v Output 120/230V Input C-Zone MasterBus NMEA

(No ratings yet)

Key item features

Versatile Charging: Utilizes a 3-step+ method for Gel, AGM, flooded, and Lithium-Ion batteries, supporting custom profiles. Its pre-float feature safely charges combined battery sizes across three outputs.
Efficient Power: Delivers a 35A total charge current with automatic distribution across three outputs, ensuring maximum current delivery. Improved cooling technology contributes to very low noise levels.
Global Adaptability: Compatible with worldwide mains voltages (120/230V, 80-275V) and frequencies. It withstands high temperatures and voltage fluctuations, making it ideal for harsh maritime or mobile environments.
Seamless Integration: Functions as a standalone unit or integrates fully into MasterBus, CZone, and NMEA2000 systems. It enables direct communication with Mastervolt Lithium-Ion batteries for optimal performance.
Robust Certification: This compact, lighter model features galvanic isolation and holds extensive certifications including CE, ABYC, UL, cULus, SAE, and ISO for assured quality and compliance.

Generated by AI

Specs

Works with, GPS,Sonar & Communication SystemsDevice-specific electronics charger type, Single ChargerBrand, MastervoltCable length, 15.25 ftPower type, BatteryColor, Multicolor

About this item

Product details

Mastervolt Chargemaster Plus 12/35-3 Battery Charger

Model: 44310355

Improved cooling technology results in very low noise levels across the entire power range.
Use as a standalone charger or as part of a complete system.
Automatic power distribution, maximum charging current possible on each output.
All 3 outputs can provide maximum current*
Pre-float eliminates the risk of overcharging.
Automatic current distribution - charging current distribution based on the condition of the battery.
Compatible with worldwide frequencies and mains voltages.
Smaller and lighter than the previous model.

The ChargeMaster Plus family is a complete range of battery chargers that provide both efficient and reliable performance in all conditions. This new generation of battery chargers offers multiple functions in one compact device. The ChargeMaster Plus reduces costs and simplifying the system and eliminating the need for additional battery chargers.

The 'Battery's Best Friend' architecture enables the ChargeMaster Plus to charge any battery chemistry using the fast and safe 3-step+ charging method. Different battery sizes can be combined, as the pre-float functionality eliminates the risk of overcharging smaller batteries. The charging profile of the Lithium Ion battery is included, as well as flexibility for a customised, user-defined profile.

The ChargeMaster Plus charges almost any combination of two or three batteries quickly and safely and can handle all possible mains voltages and frequencies worldwide.

The new ChargeMaster Plus models can achieve full functionality within a complete MasterBus or CZone system, or can also be used as a convenient plug-and-play standalone battery charger

The new ChargeMaster Plus can communicate directly with Mastervolt Lithium Ion batteries, MasterShunt or system display for real-time adjustments and optimal performance.

The battery charger can withstand high temperatures and significant voltage fluctuations. That makes this battery charger very suitable for the most harsh, maritime, or mobile environments. In addition, the ChargeMaster Plus has CE, ABYC, UL, cULus, SAE, CEC/DOE, ISO and ACMA certifications.

*The total charging current shall not exceed the maximum of the model.

Specifications
Nominal output voltage (output 1 & 2)12 VMax. output current primary output35 ATotal charge current35 A at 14,25 VMax. AC current (230 V / 120 V)2.5 A / 5.0 ANumber of battery outlets3 (max.)Battery bank size140-350 AhNominal input voltage120/230 V (80-275 V) 50/60 HzPower supply modeYesGalvanic isolationYesDisplay/read-outLED displayDimensions, hxwxd11.5 x 8.3 x 4.1 inchWeight5.5 lbComplianceCE, CEC, DOE, ABYC, UL1236, cULus, SAE J1171, ISO 8846, ACMACommunication interfacesMasterBus, CZone, NMEA2000Technical specificationsCharge characteristicIUoUo, automatic / 3-step+ for Gel/AGM/flooded/Lithium Ion + user defined optionTemperature com...

Mastervolt Chargemaster Plus 12/35-3 Battery Charger
CHARGEMASTER PLUS 12/35-3 CZONE
> Improved cooling technology results in very low noise levels across the entire power range. Use as a standalone charger or as part of a complete system. Automatic power distribution, maximum charging current possible on each output. All 3 outputs can provide maximum current* Pre-float eliminates the risk of overcharging. Automatic current distribution - charging current distribution based on the condition of the battery. Compatible with worldwide frequencies and mains voltages. Smaller and lighter than the previous model. The ChargeMaster Plus family is a complete range of battery chargers that provide both efficient and reliable performance in all conditions. This new generation of battery chargers offers multiple functions in one compact device. The ChargeMaster Plus reduces costs and simplifying the system and eliminating the need for additional battery chargers. The 'Battery's Best Friend' architecture enables the ChargeMaster Plus to charge any battery chemistry using the fast and safe 3-step+ charging method. Different battery sizes can be combined, as the pre-float functionality eliminates the risk of overcharging smaller batteries. The charging profile of the Lithium Ion battery is included, as well as flexibility for a customised, user-defined profile. The ChargeMaster Plus charges almost any combination of two or three batteries quickly and safely and can handle all possible mains voltages and frequencies worldwide. The new ChargeMaster Plus models can achieve full functionality within a complete MasterBus or CZone system, or can also be used as a convenient plug-and-play standalone battery charger The new ChargeMaster Plus can communicate directly with Mastervolt Lithium Ion batteries, MasterShunt or system display for real-time adjustments and optimal performance. The battery charger can withstand high temperatures and significant voltage fluctuations. That makes this battery charger very suitable for the most harsh, maritime, or mobile environments. In addition, the ChargeMaster Plus has CE, ABYC, UL, cULus, SAE, CEC/DOE, ISO and ACMA certifications. *The total charging current shall not exceed the maximum of the model. *The total charging current shall not exceed the maximum of the model. *The total charging current shall not exceed the maximum of the model. Specifications border="1 feet>General specificationsNominal output voltage (output 1 & 2)12 VMax. output current primary output35 ATotal charge current35 A at 14,25 VMax. AC current (230 V / 120 V)2.5 A / 5.0 ANumber of battery outlets3 (max.)Battery bank size140-350 AhNominal input voltage120/230 V (80-275 V) 50/60 HzPower supply modeYesGalvanic isolationYesDisplay/read-outLED displayDimensions, hxwxd11.5 x 8.3 x 4.1 inchWeight5.5 lbComplianceCE, CEC, DOE, ABYC, UL1236, cULus, SAE J1171, ISO 8846, ACMACommunication interfacesMasterBus, CZone, NMEA2000Technical specificationsCharge characteristicIUoUo, automatic / 3-step+ for Gel/AGM/flooded/Lithium Ion + user defined optionTemperature com...
44310355

info:

We aim to show you accurate product information. Manufacturers, suppliers and others provide what you see here, and we have not verified it.

Specifications

Works with

GPS,Sonar & Communication Systems

Device-specific electronics charger type

Single Charger

Brand

Mastervolt

Cable length

15.25 ft
