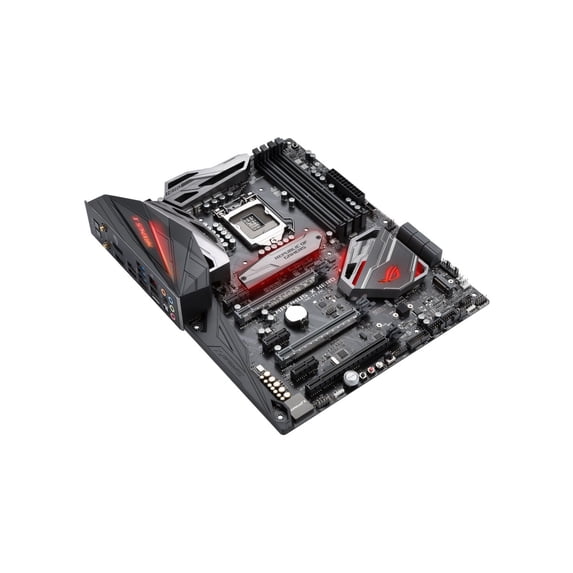

Asus Maximus X Hero (Wi-Fi Ac) Motherboard - MAXIMUS X HERO (WI-FI AC)
Asus Maximus X Hero (Wi-Fi Ac) Motherboard - MAXIMUS X HERO (WI-FI AC)
Hero image 0 of Asus Maximus X Hero (Wi-Fi Ac) Motherboard - MAXIMUS X HERO (WI-FI AC), 0 of 4
Visit the ASUS Store

Asus Maximus X Hero (Wi-Fi Ac) Motherboard - MAXIMUS X HERO (WI-FI AC)

|7 ratings

Key item features

  • Designed exclusively for 8th generation Intel® Coreâ„¢ processors to maximize connectivity and speed with Dual M.2, 802.11ac WiFi, Gigabit LAN, front panel USB 3.1 and Intel® Optaneâ„¢ Memory compatibility
  • 5-Way Optimization with Auto-Tuning and FanXpert 4 automatically tailors overclocking profiles to your unique build for maximum OC performance and dynamic system cooling
  • Unmatched Personalization with ASUS exclusive AURA Sync RGB lighting, two additional RGB headers, addressable RGB header and 3D printing mounts
  • Two Patent-pending SafeSlots feature an injection molding process that integrates metal framing for a stronger, firmly anchored PCIe slot built for heavyweight GPUs
  • Industry-leading 8-channel HD audio with dual headphone amplifiers and ROG exclusive SupremeFX S1220 CODEC driven by Japanese capacitors
  • CPU Intel® Socket 1151 for 8th Generation Coreâ„¢ Processors Supports Intel® 14 nm CPU Supports Intel® Turbo Boost Technology 2.0 * The Intel® Turbo Boost Technology 2.0 support depends on the CPU types.
  • Chipset Intel® Z370
  • Memory 4 x DIMM, Max. 64GB, DDR4 4133(O.C.)/4000(O.C.)/3866(O.C.)/3733(O.C.)/3600(O.C.)/3466(O.C.)/3400(O.C.)/3333(O.C.)/3300(O.C.)/3200(O.C.)/3000(O.C.)/2800(O.C.)/2666/2400/2133 MHz Non-ECC, Un-buffered Memory Dual Channel Memory Architecture Supports Intel® Extreme Memory Profile (XMP)
  • Graphic Integrated Graphics Processor Multi-VGA output support : HDMI/DisplayPort 1.2 ports - Supports HDMI with max. resolution 4096 x 2160 @ 24 Hz - Supports DisplayPort with max. resolution 4096 x 2304 @ 60 Hz Maximum shared memory of 1024 MB
  • Multi-GPU Support Supports NVIDIA® 2-Way SLIâ„¢ Technology Supports AMD 3-Way CrossFireXâ„¢ Technology
  • Expansion Slots Intel® Z370 Chipset 2 x PCIe 3.0 x16 (x16 or dual x8 or x8/x4/x4) 1 x PCIe 3.0 x16 (x4 mode) *1 3 x PCIe 3.0/2.0 x1
  • Storage Intel® Z370 Chipset : 1 x M.2 Socket 3, with M key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x 4 mode)*2 1 x M.2 Socket 3, with M key, type 2242/2260/2280 storage devices support (PCIE 3.0 x 4 mode)*3 6 x SATA 6Gb/s port(s) Support Raid 0, 1, 5, 10 Supports Intel® Smart Response Technology*4 Intel® Optaneâ„¢ Memory Ready
  • LAN Intel® I219V Anti-surge LANGuard ROG GameFirst IV
  • Wireless Data Network Wi-Fi 802.11 a/b/g/n/ac Supports dual band frequency 2.4/5 GHz Supports MU-MIMO
  • Bluetooth Bluetooth V4.2
  • Audio ROG SupremeFX 8-Channel High Definition Audio CODEC S1220 - Impedance sense for front and rear headphone outputs - Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking - High quality 120 dB SNR stereo playback output and 113 dB SNR recording input - SupremeFX Shielding Technology - ESS® ES9023P - Supports up to 32-Bit/192kHz playback *5 Audio Feature : - Gold-plated jacks - Optical S/PDIF out port(s) at back panel - Sonic Radar III - Sonic Studio III
  • USB Ports ASMedia® USB 3.1 Gen 2 controller : 1 x USB 3.1 Gen 2 front panel connector port(s) ASMedia® USB 3.1 Gen 2 controller : 2 x USB 3.1 Gen 2 port(s) (2 at back panel, , Type-A + USB Type-CTM) Intel® Z370 Chipset : 6 x USB 3.1 Gen 1 port(s) (4 at back panel, +blue, 2 at mid-board) Intel® Z370 Chipset : 6 x USB 2.0 port(s) (2 at back panel, +black, 4 at mid-board)
  • ROG Exclusive Features ROG RAMCache II ROG CPU-Z ROG CloneDrive Pre-mounted I/O Shield MemOK! Button Slow Mode Overwolf GameFirst IV Extreme Engine Digi+ : - MicroFine Alloy Chokes - NexFETâ„¢ Power Block MOSFET - 10K Black Metallic Capacitors Mem TweakIt ROG Extreme OC kit : - ReTry button - Safe Boot button - Start button - Reset button - LN2 Mode KeyBot II - One-click Overclocking - X.M.P. - DirectKey - ClrCMOS - Power On UEFI BIOS features : - O.C. Profile - Tweakers' Paradise - ROG SSD Secure Erase ROG RAMDisk Extreme Tweaker USB BIOS Flashback Overclocking Protection : - ASUS C.P.R.(CPU Parameter Recall
  • Special Features ASUS Dual Intelligent Processors 5-Way Optimization by Dual Intelligent Processors 5 : - 5-Way Optimization tuning key perfectly consolidates TPU, EPU, DIGI+ VRM, Fan Expert 4, and Turbo App AURA : - Aura Lighting Control - Aura RGB Strip Headers - Aura Lighting Effects Synchronization with compatible ASUS ROG devices - Aura Addressable Strip Header(s) ASUS Exclusive Features : - AI Suite 3 - Disk Unlocker ASUS EZ DIY : - ASUS CrashFree BIOS 3 - ASUS EZ Flash 3 CPU Installation Tool - Three-step simplicity and safety ASUS Q-Design : - ASUS Q-Code - ASUS Q-LED (CPU, DRAM, VGA, Boot Device LED) - ASUS Q-Slot - ASUS Q-DIMM - ASUS Q-Connector Gaming Aesthetics : - 3D printing friendly - AURA-RGB Lighting
  • Back I/O Ports 1 x DisplayPort 1 x HDMI 1 x LAN (RJ45) port(s) 2 x USB 3.1 Gen 2 Type-A + USB Type-CTM 4 x USB 3.1 Gen 1 (blue) 2 x USB 2.0 1 x Optical S/PDIF out 1 x Clear CMOS button(s) 1 x USB BIOS Flashback Button(s) 1 x ASUS 2x2 Wi-Fi 802.11 a/b/g/n/ac and Bluetooth v4.2 module 5 x Gold-plated audio jacks
  • Internal I/O Ports 1 x Aura Addressable Strip Header(s) 2 x Aura RGB Strip Headers 1 x USB 3.1 Gen 1 connector(s) support(s) additional 2 USB 3.1 Gen 1 port(s) 2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s) 1 x M.2 Socket 3 with M key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x 4 mode) 1 x M.2 Socket 3 with M key, type 2242/2260/2280 storage devices support (PCIE 3.0 x 4 mode) 1 x TPM connector(s) 6 x SATA 6Gb/s connector(s) 1 x CPU Fan connector(s) (1 x 4 -pin) 1 x CPU OPT Fan connector(s) (1 x 4 -pin) 3 x Chassis Fan connector(s) (3 x 4 -pin) 1 x AIO_PUMP connector (1 x 4 -pin) 1 x H_AMP fan connector 1 x W_PUMP+ connector (1 x 4 -pin) 1 x 24-pin EATX Power connector(s) 1 x 8-pin ATX 12V Power connector(s) 1 x Front panel audio connector(s) (AAFP) 1 x MemOK! button(s) 1 x Slow Mode switch(es) 1 x Reset button(s) 1 x LN2 Mode jumper(s) 1 x Safe Boot button 1 x ReTry button 1 x System panel connector 3 x 3D Mount screw port(s) 1 x EXT_Fan header 1 x W_IN header 1 x W_OUT header 1 x W_FLOW header 1 x Thermal sensor connector 1 x Start button 1 x USB 3.1 Gen 2 front panel connector
  • Accessories User's manual 4 x SATA 6Gb/s cable(s) 1 x M.2 Screw Package 1 x CPU installation tool 1 x Supporting DVD 1 x ASUS 2T2R dual band Wi-Fi moving antennas (Wi-Fi 802.11a/b/g/n/ac compliant) 1 x MOS fan bracket kit 1 x SLI HB BRIDGE(2-WAY-M) 1 x ROG big sticker 1 x Q-Connector 1 x Extension Cable for RGB strips (80 cm) 1 x Extension cable for Addressable LED 1 x 3D printing mount package 1 x ROG coaster(s)
  • BIOS 1 x 128 Mb Flash ROM, UEFI AMI BIOS, PnP, DMI3.0, WfM2.0, SM BIOS 3.0, ACPI 6.0, Multi-language BIOS, ASUS EZ Flash 3, CrashFree BIOS 3, F11 EZ Tuning Wizard, F6 Qfan Control, F3 My Favorites, Last Modified log, F12 PrintScreen, F3 Shortcut functions and ASUS DRAM SPD (Serial Presence Detect) memory information.
  • Operating System Windows® 10 64-bit
  • Form Factor ATX Form Factor 12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )
Current price is $308.71
Price when purchased online
Out of stock

How do you want your item?

How do you want your item?
Out of stock

About this item

Product details

Specifications

Warranty

Customer ratings & reviews

3.4 out of 5 stars
stars
7 ratings7 reviews
How item rating is calculated
  1. 5 stars43% (3)
  2. 4 stars14% (1)
  3. 3 stars14% (1)
  4. 2 stars0% (0)
  5. 1 star29% (2)
Filtered and sorted results would be available on the new 'Customer ratings & reviews' page.
Sort by |

Showing 1-3 of 7 reviews

Aug 13, 2025
slink
5 out of 5 stars review

Seller Verified Purchase

ROG Excellent mother boards

Third ROG mother board and all have run flawlessly. Love them.

Review from https://www.asus.com
Helpful?50ZAKXYFMX4R499955599
Apr 26, 2021
LOTRouter
5 out of 5 stars review

Seller Verified Purchase

Another ASUS work of art

ROG motherboards are always a pleasure to work with. The ROG Maximus X Hero has by far the best overclocking support I've ever used on a motherboard. It automates overclocking settings, maintains necessary power levels, and will even automate overclocking based on temperature requirements set by the user. Not having to install an i/o guard makes installation so much easier. The integrated WiFi works well, as do the NVME and all the USB ports in their various speeds and flavors. You can't go wrong with this motherboard.

Review from Designer Appliances
Helpful?50ZAKXYFMX4R499955599
Aug 30, 2023
Pat B
5 out of 5 stars review

Seller Verified Purchase

Great Product - outstanding.

Performance and quality are factors we all want in a motherboard, this one has been a champion for years now. Running for days and days with no issues. A great product.

Review from https://www.asus.com
Helpful?50ZAKXYFMX4R499955599
