Hero image 0 of Fireboy G-1BB-R 1-Channel Gasoline Fume Detector with Sensor & 10 Amp Relay to Start Blower, 0 of 2

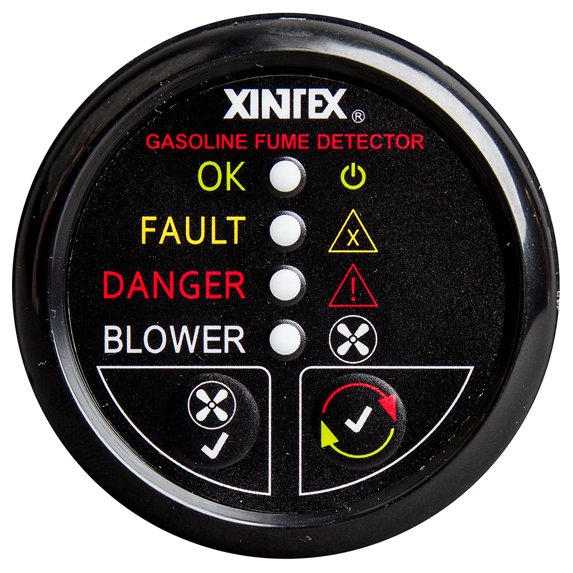

Fireboy G-1BB-R 1-Channel Gasoline Fume Detector with Sensor & 10 Amp Relay to Start Blower

(No ratings yet)

Key item features

Gasoline Fume Detector w/Blower Control - Black Bezel - 12VThe Single Channel Gasoline Fume Detector is an effective means to monitor gasoline fumes in an engine compartment, fuel tank storage area or in other areas where gasoline fumes might accumulate. Complete system includes Blower Control Relay, easy installation and precise monitoring. Features:
Simple Installation
Audible and visual alarm to indicate LEL (Lower Explosive Level) presence
Monitors one (1) single area
Automatically activates bilge blowerTechnical Specifications:
Operating Temperature: -40° to 185°F (-40° to 85°C)
Current Draw Nominal - 55mA
Current Draw Maximum - 95mA
Operating Voltage - 9 to 30V DC
Alarm Horn - 68 dB
Display Style - Round with Chrome Bezel
Display Dimensions - 2-3/16" (5.6 cm) round
Cutout Dimension - 2-1/16" (5.2 cm) round holeIn the Box:
Fume Detector
Fuel sensors x one (1)
20' Extension Cable x one (1)
Blower Relay x one (1)
Instruction manual*Sold as an Individual Specifications:
Blower Relay: Yes
Fume Type: Gasoline
Generator Shutdown: No
Sensors Included: 1
Voltage - Input Range (Volts): 9 to 30
Box Dimensions: 4"H x 4"W x 8"L WT: 1 lbs
UPC: 619749202523Owner's Manual (pdf)Brochure (pdf)

Specs

Amps, 10 AmpsVolts, 9 VoltsBrand, Fireboy-XintexNumber of poles, 1Smart tech, NColor, Multicolor

About this item

Product details

Gasoline fumes in a bilge or engine compartment have the potential to be a serious risk at any time. First, fuel leaks create new fumes as rapidly as the blower clears old fumes away. With the fan off, the hazard is increased. Second, the fan is typically operating prior to engine start up, thus offering no protection from an electrical short circuit, battery hydrogen explosion, smoking or their causes.

Gasoline Fume Detector w/Blower Control - Black Bezel - 12VThe Single Channel Gasoline Fume Detector is an effective means to monitor gasoline fumes in an engine compartment, fuel tank storage area or in other areas where gasoline fumes might accumulate. Complete system includes Blower Control Relay, easy installation and precise monitoring. Features:
Simple Installation
Audible and visual alarm to indicate LEL (Lower Explosive Level) presence
Monitors one (1) single area
Automatically activates bilge blowerTechnical Specifications:
Operating Temperature: -40° to 185°F (-40° to 85°C)
Current Draw Nominal - 55mA
Current Draw Maximum - 95mA
Operating Voltage - 9 to 30V DC
Alarm Horn - 68 dB
Display Style - Round with Chrome Bezel
Display Dimensions - 2-3/16" (5.6 cm) round
Cutout Dimension - 2-1/16" (5.2 cm) round holeIn the Box:
Fume Detector
Fuel sensors x one (1)
20' Extension Cable x one (1)
Blower Relay x one (1)
Instruction manual*Sold as an Individual Specifications:
Blower Relay: Yes
Fume Type: Gasoline
Generator Shutdown: No
Sensors Included: 1
Voltage - Input Range (Volts): 9 to 30
Box Dimensions: 4"H x 4"W x 8"L WT: 1 lbs
UPC: 619749202523Owner's Manual (pdf)Brochure (pdf)

info:

We aim to show you accurate product information. Manufacturers, suppliers and others provide what you see here, and we have not verified it.

Specifications

Amps

10 Amps

Volts

9 Volts

Brand

Fireboy-Xintex

Number of poles
