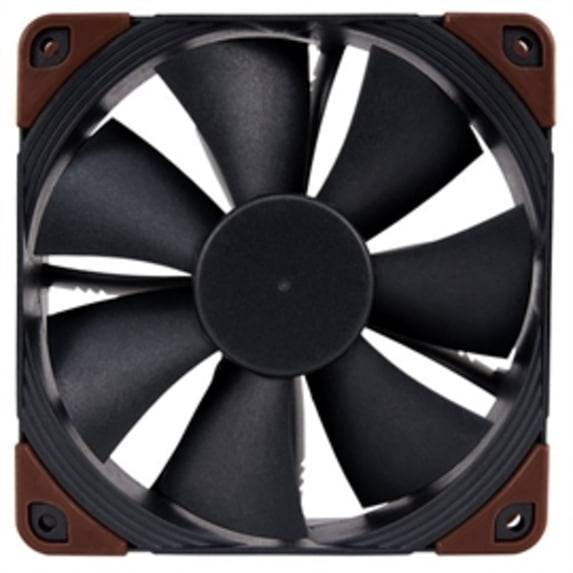

Noctua Fan with Focused Flow and SSO2 Bearing, Retail Cooling NF-F12 iPPC 3000 PWM
Noctua Fan with Focused Flow and SSO2 Bearing, Retail Cooling NF-F12 iPPC 3000 PWM
Hero image 0 of Noctua Fan with Focused Flow and SSO2 Bearing, Retail Cooling NF-F12 iPPC 3000 PWM, 0 of 2

Noctua Fan with Focused Flow and SSO2 Bearing, Retail Cooling NF-F12 iPPC 3000 PWM

|3 ratings

Key item features

  • Rugged Construction: The impeller and frame are made from fiber-glass reinforced polyamide, capable of withstanding temperatures up to 140°C for exceptional durability and break resistance.
  • Smooth Motor: Utilizes a three-phase motor design with six slots, ensuring smoother operation, significantly reduced vibrations, and superior energy efficiency.
  • Focused Airflow: Features eleven stator guide vanes within the Focused Flow frame to straighten and channel airflow, optimizing performance for pressure-demanding applications like radiators.
  • IP52 Protected: Certified with IP52 water and dust protection due to a special varnish coating on the motor and PCB, making it highly resistant to dust and dripping water.
  • Acoustic Refinement: Stator guide vanes incorporate varying angular distance and vortex control notches, spreading noise emission for a more agreeable sound pattern.
  • Balanced Impeller: The custom-designed seven-blade Heptaperf impeller optimizes cooling power and quietness, working in tandem with the Focused Flow frame.
  • Reliable Bearing: Equipped with SSO2 bearing technology, guaranteeing long-term dependability with a Mean Time Between Failures (MTBF) exceeding 150,000 hours.
Generated by AI

Specs

Computer cooling type, Case FansFan speed, 3000 rpmWorks with, ComputersColor, MulticolorModel name, NF-F12 iPPC 3000 PWMHas written warranty, No

About this item

Product details

Details :
Conceived for industrial heavy duty applications that require enhanced cooling performance and advanced ingress protection, the NF-F12 industrialPPC (Protected Performance Cooling) is a ruggedised high-speed version of the award-winning retail model. Thanks to the outstanding aerodynamic efficiency of the NF-F12 design and the use of a novel three-phase motor, the industrialPPC version provides superior airflow and pressure capacity while keeping noise levels and power consumption moderate as against comparable high-speed fans. While its fibre-glass reinforced polyamide construction and certified water and dust protection make the NF-F12 industrialPPC suitable for operation in challenging environments, the renowned SSO2 bearing technology guarantees an MTBF of over 150.000hrs. Topped off with Noctuas trusted reliability and 6 years manufacturers warranty, the NF-F12 industrialPPC is an ideal choice for highly demanding applications that require superior flow rates and ultimate dependability.

Size
120x120x25 mm

Connector
4-pin PWM

Bearing
SSO2

Blade Geometry
Heptaperf
Frame Technology
FocusedFlow

Rotational Speed (+/- 10%)
3000 RPM

Min. Rotational Speed (PWM, +/-20%)
750 RPM

Airflow
186,7 m/h
Acoustical Noise
43,5 dB(A)

Static Pressure
7,63 mm H2O

Max. Input Power
3,6 W

Max. Input Current
0,3 A
Voltage
12 V

MTBF
> 150.000 h

Scope of Delivery
Fan
4 Fan Screws
Ingress Protection
IP52

Material
Fibre-glass reinforced polyamide

Motor type
Three-phase
Item Dimension (L"xW"xH"):
10 x 8 x 6

Weight:
1.16 lb

Warranty Information:
6 Years
Warranty : 1 Year Warranty

Key Features and Benefits:

  • Three-phase motor design
    While most axial fans use single-phase motors with 4 slots, Noctua's industrialPPC fans feature a three-phase design with 6 slots, which provides smoother transitions between the slots and thus allows for even higher running smoothness, further reduced vibrations and unprecedented energy efficiency.
  • Fiber-glass reinforced polyamide construction
    Both the impeller and the frame of Noctua's industrialPPC fans are made entirely from fiber-glass reinforced polyamide. This material can withstand temperatures up to 140������C and makes the fans even more robust and break-proof than Noctua's standard fiber-glass reinforced PBT fans.
  • Certified IP52 water- and dust protection
    Thanks to a special varnish coating that covers the motor and PCB, the NF-F12 industrialPPC complies with the ingress protection rating IP52. This means that it is not only highly dust resistant but also withstands dripping water equivalent to 3mm rainfall per minute.
  • Focused flow frame
    Designed for pressure demanding applications such as heatsinks and radiators, the Focused Flow frame features eleven stator guide vanes that straighten, channel and focus the airflow, which allows the NF-F12 to rival the performance of conventional fans running at much faster speeds.
  • Varying angular distance and vortex control notches
    The NF-F12's stator guide vanes are set out in Varying Angular Distance and feature Vortex-Control Notches. Both measures help to spread the noise emission over a broader frequency spectrum and thus make the fan's sound pattern more agreeable to the human ear.
  • Heptaperf Impeller
    Custom designed for the new Focused Flow frame and to work in tandem with the eleven stator guide vanes, the NF-F12's seven blade Heptaperf impeller has been carefully optimized to achieve a perfect balance between power and quietness.
  • AAO frame
    Noctua's AAO frames feature integrated anti-vibration pads as well as Noctua's proprietary Stepped Inlet Design and Inner Surface Microstructures, both of which further refine the fan's performance/noise efficiency.
