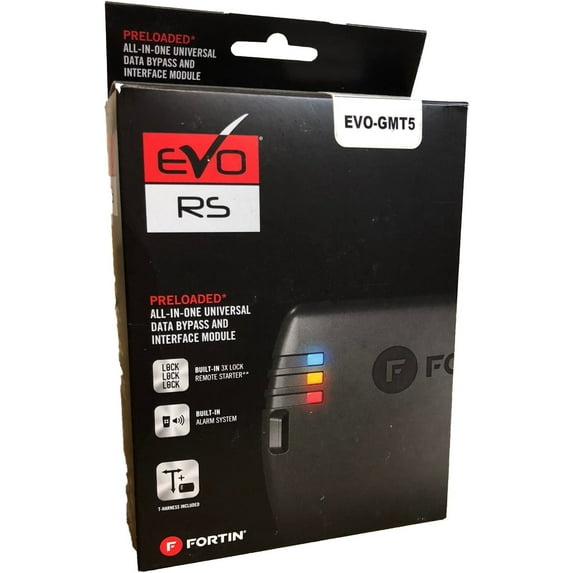

Fortin EVO-GMT5 T-Harness Immobilizer Bypass Interface Cadillac Chevy GMC

Fortin EVO-GMT5 Immobilizer Bypass + Remote Start Interface for Cadillac Chevrolet & GMC Full-Size Vehicles

The EVO-GMT5 is the ultimate Factory Fit, ALL-IN-ONE data immobilizer bypass, door lock, alarm & remote start interface with T-Harness combo module for Chevrolet & GMC full-size vehicles.
It raises the standard of hassle-free installation convenience to a whole new level. It uses a multiple bus architecture with 10 separate communication ports that provide more complete functionality on every supported vehicle.


Some vehicles and modules may include a second step for programming, but we do not offer flashing for these modules. Please see the manufacturer's requirements to make sure you have everything you need prior to your installation.If you are unsure check with an authorized, experienced installer.


General Features :

3 x On-board LEDs for simplified programming and diagnostics.
1 x Preloaded firmware for maximum compatibility.
1 x Factory Fit T-Harness for easy install.
1 x 2-way datalink port for data-to-data (RS-232) communication with compatible remote-starters and security-systems.
1 x 20 Pin general purpose plug for wire-to-wire connections with non-datalink equipped remote-starters and security-systems.
Self-Learning algorithm automatically detects the vehicle during programming and adjusts accordingly.
3 x CAN-Bus controllers.
3 x General purpose controllers (J1850, Class 2, encrypted key etc )

Includes:
1 x On-board relay (SPDT)
1 x EVO-ALL control module (firmware preloaded).
1 x Warning label.
1 x 4 Pin Fortin 2-way data-link harness.
1 x Factory Fit T-Harness. (THAR-GM5)
