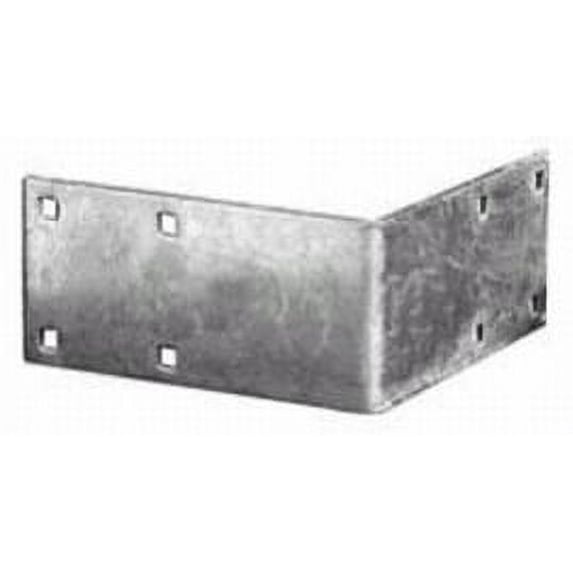

Tiedown 26523 Dock Hardware Outside Corner End Connector L Bracket
(No ratings yet)
Key item features
New
Specs
Brand, Tie Down
Style, Standard
Features, Welded
Size, 10\" L x 5\" H
Count per pack, 1
Installation type, Bolt-On
Brand
Tie Down
Style, Standard
Style
Standard
Features, Welded
Features
Welded
Size, 10\" L x 5\" H
Size
10\" L x 5\" H
Count per pack, 1
Count per pack
1
Installation type, Bolt-On
Installation type
Bolt-On
Similar items you might like
Based on what customers bought
WEUVEB 100 Pcs Heavy Duty J Bolts for Pallet Racking and Home Use, Metal Fasteners $21.91
$2191current price $21.91WEUVEB 100 Pcs Heavy Duty J Bolts for Pallet Racking and Home Use, Metal Fasteners
Closetmaid White Wire 84 In. Closet Shelf Support Pole 100900 $37.84 Was $44.16
$3784current price $37.84, Was $44.16$44.16Closetmaid White Wire 84 In. Closet Shelf Support Pole 100900
53.8 out of 5 Stars. 5 reviews3.8 out of 5 starsClearance, STARLINK Pipe Adapter Standard Kit $21.00 Was $55.00
Clearance
$2100current price $21.00, Was $55.00$55.00STARLINK Pipe Adapter Standard Kit
934.5 out of 5 Stars. 93 reviews4.5 out of 5 starsWestbury Top Rail End Cover $25.82
$2582current price $25.82Westbury Top Rail End Cover
Ridgid 62270 5/8-Inch x 7 1/2-Inch C8 Cable $44.99
$4499current price $44.99Ridgid 62270 5/8-Inch x 7 1/2-Inch C8 Cable
Rectorseal PRC-351N Polymer Riser End Caps (Qty. 2) $25.87
$2587current price $25.87Rectorseal PRC-351N Polymer Riser End Caps (Qty. 2)
Erva Tubular Steel Pole Section, Black, 60" $59.99
$5999current price $59.99Erva Tubular Steel Pole Section, Black, 60"
National Hardware N112482 5008 Box Rail Hanger Zinc Plated Finish Pair $68.18
$6818current price $68.18National Hardware N112482 5008 Box Rail Hanger Zinc Plated Finish Pair
20" Domed Septic Riser Lid for Risers Only $43.47
$4347current price $43.4720" Domed Septic Riser Lid for Risers Only
XYT (4 Count) Aluminum Gate Corner 1-3/8" X 1-3/8" $34.59
$3459current price $34.59XYT (4 Count) Aluminum Gate Corner 1-3/8" X 1-3/8"
20" Domed Septic Riser Lid for Risers Only YHKJ $50.25
$5025current price $50.2520" Domed Septic Riser Lid for Risers Only YHKJ
Set of cutting broaches, 6 pcs. Ø 1.2 - 3.0 mm $43.99
$4399current price $43.99Set of cutting broaches, 6 pcs. Ø 1.2 - 3.0 mm
Attwood Fender Cleat - 3-1/2" $25.24 $25.24/count
$2524current price $25.24$25.24/countAttwood Fender Cleat - 3-1/2"
null4.6 out of 5 Stars. null reviews4.6 out of 5 starsClearance, GOOHOCHY 6-Piece Metal Closet Rod Corner Connectors, 19mm 90 Degree Joints for Shelving $10.08 Was $11.33
Clearance
$1008current price $10.08, Was $11.33$11.33GOOHOCHY 6-Piece Metal Closet Rod Corner Connectors, 19mm 90 Degree Joints for Shelving

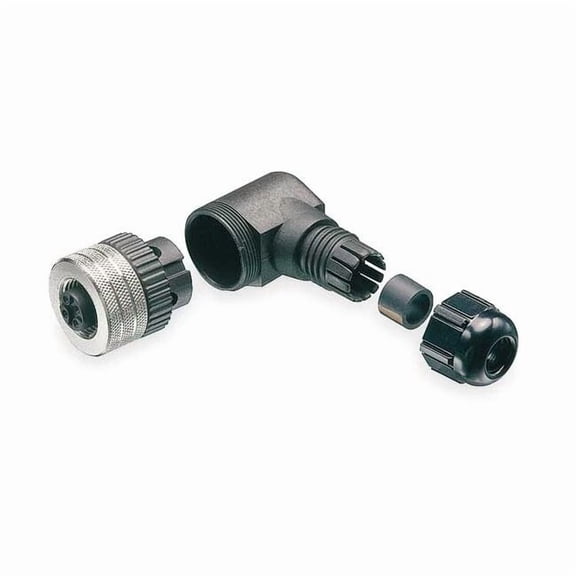

Internal Thread Connector, 90 Angle, M12 8A4001-31 $50.45
$5045current price $50.45Internal Thread Connector, 90 Angle, M12 8A4001-31
Rollbacks & More Window Well Cover Hardware Kit Egress Spring Clip Outside Retaining $13.52
$1352current price $13.52Rollbacks & More Window Well Cover Hardware Kit Egress Spring Clip Outside Retaining
Clearance, DEEPCRAFF 80-Piece Half Woodruff Key Assortment, 8 Sizes, Steel Shaft Keys for Automotive Engine and Machinery Repair $15.75 Was $17.70
Clearance
$1575current price $15.75, Was $17.70$17.70DEEPCRAFF 80-Piece Half Woodruff Key Assortment, 8 Sizes, Steel Shaft Keys for Automotive Engine and Machinery Repair
Lock Collar Bearing Greaseable Bore 7/8" $28.39
$2839current price $28.39Lock Collar Bearing Greaseable Bore 7/8"
T-Slot Nut,1018,B/O,1-8 41426 $35.01
$3501current price $35.01T-Slot Nut,1018,B/O,1-8 41426
TAG Hardware ELITE Pole Patented Round End Support Flanges - 1-5/16" Closet Rod End Caps $12.47
$1247current price $12.47TAG Hardware ELITE Pole Patented Round End Support Flanges - 1-5/16" Closet Rod End Caps
About this item
Product details
DOCK SYSTEM
A. Outside Corner (Female) -Two 1/2'' welded tabs. Use w/male outside corner. Each leg is 10''Lx5''H. Part # 26521
B. Outside Corner (Male)-One 1/2" welded tab. Use w/female outside corner to connect docks end to end. Joint requires 3/4" bolt set (N) or connector pin (O). Leg is 10"Lx5"H. Part # 26522
C. Outside Corner End-Use at ends of fingers & docks. Ideal for swim floats & ski jump corners. Leg is 10"Lx5"H. Part #26523.
D. Inside Corner-Use with outside corners. Leg with elongated holes. 8-1/4"Lx5"H. Part # 26524.
E. Inside Corner/Pipe Holder 3" (Part # 26525) Inside Corner/Pipe Holder 2" (Part # 26526)-Use with outside corners. Internal pipe holder to be used with either 2" pipe (Part # 26525) or 1-1/2" pipe (Part # 26526). Welded gusset. 8-1/4"Lx5"H. Requires carriage bolt set(M) for attaching.
F. Angle-Use for all cross supports. 2-1/2"Lx5"H. Part # 26527.
G. Female T Connector-One welded 1/2" tab. Bolts to side of dock to attach fingers & ramps. Measures 5"Lx5"H. Part # 26528.
H. Male T Connector-One welded 1/2" tab. Use with female T connector to attach fingers & ramps. Measures 5"Lx5"H. 3/4" bolt set(N) required for joint. Part # 26532.
I. Washer Plate-Use 2 washer plates with each angle. 1-1/2"Lx5"H. Part # 24284.
J. Chain Retainer-Bolts to side of dock. Use weights & chains to hold dock in place. Accommodates 1/4" 3/8" & 1/2" chain. 5"Lx5"H. Part # 26529.
K. Pipe Holder/Outside 3"-bolts to outside of dock. Carriage bolt set (M) required for attaching. Use 2" pipe to hold dock in place. Part # 24280.
L. Lag Bolt Set-bolt & flat washer hot dipped galvanized used to attach flotation drums to dock system. Part # 24288.
M. Carriage Bolt Set-used to attach A thru K component parts. 3/8"x2-1/2" bolt flat washer & nut. Hot dipped galvanized. Part # 26530.
N. 3/4" Hex Head Bolt Set-for quick disconnect. Used to connect male & female connectors. Galvanized 3/4"x3-1/2". Part # 24278.
O. Connector Pin Set-for quick disconnect. Used to connect male & female connectors. Galvanized 3/4" connector pin & hitch clip pin. Part # 26531.
ALSO AVAILABLE - NOT PICTURED - Part # 26413. Back Up Plates.
All Hardware is designed to use with 1-1/2" thick lumber minimum width 6" and is mounted with 3/8" carriage bolts(M). All male & female dock to dock connectors are made with either 3/4" bolts with lock nut(N) or 3/4" connecting pins(O). Tie Downs' Wood Dock Plan Kit will show the basics on construction for this lightweight and long-lasting floating dock system.
A. Outside Corner (Female) -Two 1/2'' welded tabs. Use w/male outside corner. Each leg is 10''Lx5''H. Part # 26521
B. Outside Corner (Male)-One 1/2" welded tab. Use w/female outside corner to connect docks end to end. Joint requires 3/4" bolt set (N) or connector pin (O). Leg is 10"Lx5"H. Part # 26522
C. Outside Corner End-Use at ends of fingers & docks. Ideal for swim floats & ski jump corners. Leg is 10"Lx5"H. Part #26523.
D. Inside Corner-Use with outside corners. Leg with elongated holes. 8-1/4"Lx5"H. Part # 26524.
E. Inside Corner/Pipe Holder 3" (Part # 26525) Inside Corner/Pipe Holder 2" (Part # 26526)-Use with outside corners. Internal pipe holder to be used with either 2" pipe (Part # 26525) or 1-1/2" pipe (Part # 26526). Welded gusset. 8-1/4"Lx5"H. Requires carriage bolt set(M) for attaching.
F. Angle-Use for all cross supports. 2-1/2"Lx5"H. Part # 26527.
G. Female T Connector-One welded 1/2" tab. Bolts to side of dock to attach fingers & ramps. Measures 5"Lx5"H. Part # 26528.
H. Male T Connector-One welded 1/2" tab. Use with female T connector to attach fingers & ramps. Measures 5"Lx5"H. 3/4" bolt set(N) required for joint. Part # 26532.
I. Washer Plate-Use 2 washer plates with each angle. 1-1/2"Lx5"H. Part # 24284.
J. Chain Retainer-Bolts to side of dock. Use weights & chains to hold dock in place. Accommodates 1/4" 3/8" & 1/2" chain. 5"Lx5"H. Part # 26529.
K. Pipe Holder/Outside 3"-bolts to outside of dock. Carriage bolt set (M) required for attaching. Use 2" pipe to hold dock in place. Part # 24280.
L. Lag Bolt Set-bolt & flat washer hot dipped galvanized used to attach flotation drums to dock system. Part # 24288.
M. Carriage Bolt Set-used to attach A thru K component parts. 3/8"x2-1/2" bolt flat washer & nut. Hot dipped galvanized. Part # 26530.
N. 3/4" Hex Head Bolt Set-for quick disconnect. Used to connect male & female connectors. Galvanized 3/4"x3-1/2". Part # 24278.
O. Connector Pin Set-for quick disconnect. Used to connect male & female connectors. Galvanized 3/4" connector pin & hitch clip pin. Part # 26531.
ALSO AVAILABLE - NOT PICTURED - Part # 26413. Back Up Plates.
All Hardware is designed to use with 1-1/2" thick lumber minimum width 6" and is mounted with 3/8" carriage bolts(M). All male & female dock to dock connectors are made with either 3/4" bolts with lock nut(N) or 3/4" connecting pins(O). Tie Downs' Wood Dock Plan Kit will show the basics on construction for this lightweight and long-lasting floating dock system.
New
info:
We aim to show you accurate product information. Manufacturers, suppliers and others provide what you see here, and we have not verified it.
Specifications
Brand
Tie Down
Style
Standard
Features
Welded
Size
10\" L x 5\" H
Warranty
Warranty information
Limited Warranty TIE DOWN ENGINEERING Inc (“TIE DOWN") warrants its products to be free from defects in material and workmanship for one
year from date of delivery to the original purchaser when properly installed, used and maintained by the purchaser.
