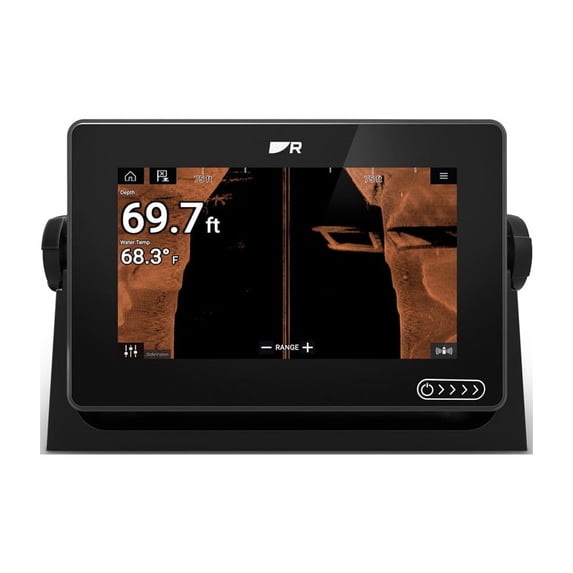

Raymarine E7063500102 Axiom+ 7 Display Lighthouse North America

(No ratings yet)

Key item features

  • Raymarine Axiom+ 7RV 7" Muilti-Function Display with RealVision Sonar - No Transducer, with Lighthouse North America Charts

    Model: E70635-00-102
    • Fluid and fast chart redraw of LightHouse, Navionics, and C-MAP electronic charts.
    • Powerful quad-core processor, plus increased onboard storage for personal data and apps.
    • Smart and intuitive LightHouse 3 OS makes navigating easy.
    • ClearCruise™ Augmented Reality-capable for smarter navigation decisions.
    • Nano-coated, impact-resistant glass screen repels water, oil, and smudges for better viewing and accurate touch controls.
    • IPS display technology delivers wider viewing angles and sharp contrast at twice the resolution of traditional displays.
    • Network with multiple Axiom displays, radars, sonar, and more.
    • Next-generation, high-performance 10 Hz GPS/GNSS receiver with 4X increased sensitivity for accurate positioning.

    The performance-tuned Axiom Plus is a new generation of award-winning Raymarine multifunction displays. Optimized for speed, Axiom Plus is equipped with a powerful quad-core processor for industry-leading responsiveness and speed, giving you the power to seamlessly redraw charts, navigate with augmented reality, and experience RealVision™ 3D sonar.

    New, higher resolution IPS displays deliver 25 percent more brightness and new day/night color palettes offer enhanced visibility in any lighting condition. Axiom Plus features the renowned LightHouse 3 OS, the most powerful and easy-to-use Raymarine MFD operating system to date.

    Specifications
    General
    Display Size 7.0 inch High Density IPS
    Display Resolution 1024 x 600 (WSVGA)
    Display Type Multitouch with HydroTough™ rugged hydrophobic coating
    Brightness 1,500 nits
    Viewing Angle 85° Top, Bottom, Left, Right
    Dimensions W x H x D (Excluding trunnion and cables) 7.92 x 5.24 x 3.0in
    Mounting Options Surface, Flush, Trunnion, (Front installation bracket available)
    Waterproof Rating IPX6 / IPX7
    Operating Temperature Range -25°C to +55°C (-13°F to +131°F)
    Storage Temperature Range -30°C to +70°C (-22°F to +158°F)
    Power
    Voltage 12V DC (8V to 16V DC)
    Power Consumption (Full brightness) 7.34 Watts. RV Sonar version 9.84 Watts
    Sensors
    GNSS / GPS Built-in GNSS Receiver: GPS/GLONASS/Galileo/Beidou* - 10Hz 28 Channel *Future software update required
    Sonar Type (Built-in) RV Version equipped with High CHIRP, DownVision, SideVision and RealVision 3D
    Sonar Connections 25pin RealVision™ type connector
    Sonar Depth High CHIRP Sonar = 900 feet (274m)
    DownVision™ = 600 feet (183m)
    SideVision™ = 300 feet (91m)
    RealVision™ 3D = 300 feet (91m)
    External Sonar Option Yes - CP100, CP200, CP370, CP470, CP570, RVX1000 via RayNet
    Radar Yes - Quantum, Digital, HD Colour / Super HD Colour and Magnum Radars
    AIS Yes - NMEA2000 compatible
    Autopilot Control Yes - Evolution Autopilot
    Thermal Night Vision Yes FLIR AX8, M232, M300 Series, M400, M500
    Video / Camera Compatible with CAM210IP, CAM220IP (Up to 10 IP network cameras)
    Weather GRIB View - Free GRIB viewer and Theyr Ltd Subscription
    SiriusXM - N. America Only
    Audio NMEA2000 / Bluetooth speaker controls / Optional SiriusXM Audio
    Digital Switching Yes - Empirbus & C-Zone compatible
    Remote Control Yes Optional RMK-10 (A80438)
    Networking
    Ethernet 1 x 10/100 Mbit/s Network (RayNet)
    NMEA0183 No
    NMEA2000 NMEA2000 via DeviceNet port. SeaTalkng compatible using an optional adapter
    SeaTalkNG Requires DeviceNet Female (F) adaptor cable (A06079 120mm adaptor included in box)
    USB 1 x USB microAB
    Wi-Fi WiFi - 802.11 a/b/g/n
    BlueTooth Bluetooth v4.0
    Navigation
    Cartography Lighthouse Charts, Navionics, and C-MAP compatible
    Waypoint/Routes/Tracks (Wpts/Rts/Trk) 10,000 wpts / 200 wpt groups / 150 rts - 250 wpt max / 16 tracks - 10,000 max trk pts
    Memory
    Internal Memory 16 GB Solid State
    External Memory 1x MicroSD Card Slot
    Languages 24
    Conformances NMEA 2000 certification
    Europe: 1999/5/EC
    Australia and New Zealand: C-Tick, Compliance Level 2
    FCC 47CFR part 15
    Industry Canada RSS210

    What's in the Box:
    • Multifunction Display (supplied with Trunnion adaptor fitted)
    • Trunnion bracket
    • Trunnion knobs x 2
    • Suncover — Trunnion mount
    • Panel mount gasket for surface/flush mounting
    • M5x58 Threaded studs x 4
    • M5 Thumb nuts x 4
    • Documentation pack
    • DeviceNet to SeaTalkng ® adaptor cable 120 mm (4.7 in)
    • Power/NMEA 2000 cable (with 1.5 m (4.92 ft) power lead and 0.5 m (1.64 ft) NMEA 2000 lead)
    • Lighthouse North America mSD Chart Card
  • Raymarine Axiom+ 7RV 7" MFD No Transducer Lighthouse North America Chart E70635-00-102
  • Raymarine
