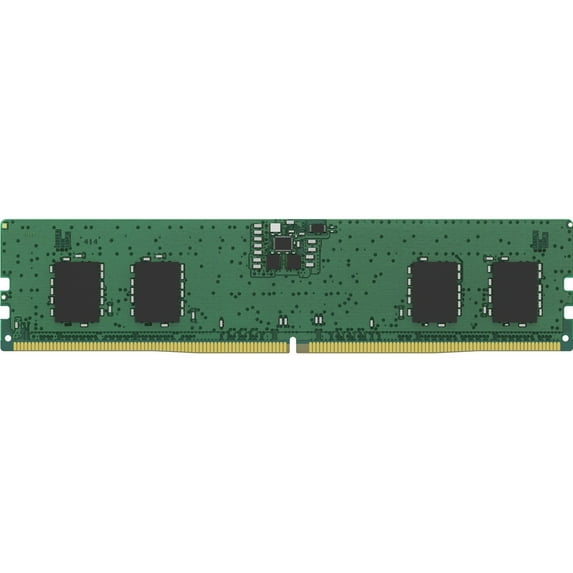

Kingston ValueRAM 8GB DDR5 SDRAM Memory Module

KVR56U46BS6-8

8GB 1Rx16 1G x 64-Bit

PC5-5600 CL46 288-Pin DIMM


DESCRIPTION


This document describes ValueRAM's KVR56U46BS6-8 is a 1G x 64-bit (8GB) DDR5-5600 CL46 SDRAM (Synchronous DRAM), 1Rx16, memory module, based on four 1G x 16-bit FBGA components. The SPD is programmed to JEDEC standard latency DDR5-5600 timing of 46-45-45 at 1.1V. Each 288-pin DIMM uses gold contact fingers. The electrical and mechanical specifications are as follows:

FEATURES

• Power Supply: VDD = 1.1V Typical

• VDDQ = 1.1V Typical

• VPP = 1.8V Typical

• VDDSPD = 1.8V to 2.0V

• On-Die ECC

• PCB: Height 1.23" (31.25mm)

• RoHS Compliant and Halogen-FreeCL(IDD)
46 cyclesRow Cycle Time (tRCmin)
48ns(min.)Refresh to Active/Refresh Command Time (tRFCmin)
295ns(min.)Row Active Time (tRASmin)
32ns(min.)UL Rating
94 V - 0Operating Temperature
0^o C to +85^o CStorage Temperature
-55^o C to +100^o CItem Dimension (L"xW"xH")
1 x 2 x 7

Weight
1 lb

Warranty Information
Lifetime
