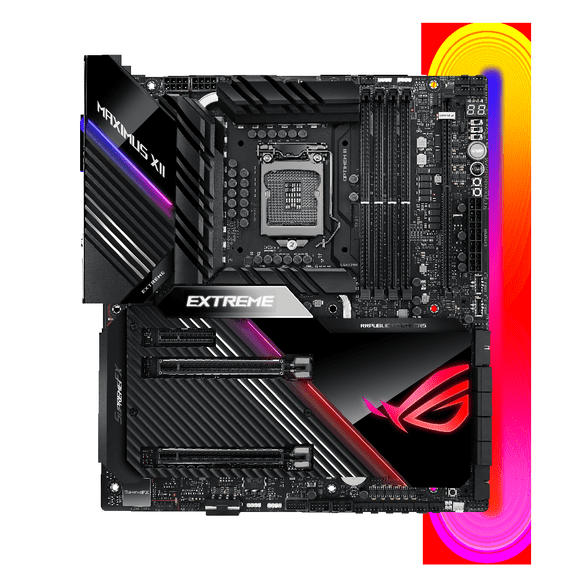

Asus ROG Maximus XII Extreme Motherboard

|9 ratings

Key item features

  • Intel® LGA 1200 socket: Designed to unleash the maximum performance of 10th Gen Intel® Core™ processors
  • Extreme Power Solution: features 16 infineon TDA21490 power stages, each rated to handle 90 amps, high-quality alloy chokes and durable capacitors
  • Superb Thermal Design: Extra-large heatsinks for VRM, chipset and M.2 slots, solid steel backplate, multiple fan headers and a bundled fan extension card, features AI cooling to balance thermals and acoustics by reducing fan speeds and maintaining a 5 Celsius delta
  • Fastest Gaming Connectivity: Intel® WiFi 6 AX201 (802.11 ax), Dual Ethernet with Marvell® AQtion 10Gb and Intel® 2.5Gb Ethernet with LANGaurd technology, Quad M.2 slots with Dimm.2, 2x USB 3.2 Gen 2x2 front panel connectors
  • Unmatched Personalization: 2” Livedash OLED, ASUS-exclusive Aura Sync RGB lighting, including RGB headers and Gen 2 addressable headers.
  • Industry-leading Gaming Audio: High fidelity audio with the SupremeFX S1220A codec, DTS® Sound Unbound and Sonic Studio III draws you deeper into the game action
  • Exclusive ROG Bundle: 1x Fan Extension Card II , 1x ThunderboltEX 3-TR Card, 1x Fan bracket, 1x ROG assistant Fan( 40mm), 1x ROG multi-bit screwdriver come with the motherboard package
  • CPU Intel® Socket LGA1200 for 10th Gen Intel® Core™, Pentium® Gold and Celeron® processors* Supports Intel® 14 nm CPU Supports Intel ® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0** * Refer to www.asus.com for CPU support list. **Intel® Turbo Boost Max Technology 3.0 support depends on the CPU types.
  • Chipset Intel® Z490 Chipset
  • Memory 4 x DIMM, Max. 128GB, DDR4 4700+(O.C.)/ 4600(O.C.)/ 4500(O.C.)/ 4400(O.C.)/ 4266(O.C.)/ 4133(O.C.)/ 4000(O.C.)/ 3866(O.C.)/3733(O.C.)/ 3600(O.C.)/ 3466(O.C.)/ 3400(O.C.)/ 3333(O.C.)/ 3200(O.C.)/ 3000(O.C.)/ 2933(O.C.)/ 2800(O.C.)/ 2666/ 2400/ 2133 MHz Non-ECC, Un-buffered Memory* Dual Channel Memory Architecture Supports Intel® Extreme Memory Profile (XMP) OptiMem III * 10th Gen Intel® Core™ i9/i7 CPUs support 2933/2800/2666/2400/2133 natively. Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists).
  • Expansion Slots Intel® 10th Gen Processors 2 x PCIe 3.0 x16 slots (support x16 or x8/x8 modes) Intel® Z490 Chipset 1 x PCIe 3.0 x4 slot* * PCIEx4 slot shares bandwidth with SATA6G_56 and PCIEx4 slot is default set at x2 mode.
  • Multi-GPU Support Supports NVIDIA 2-Way SLI® Technology Supports AMD 3-Way CrossFireX™ Technology
  • Storage Total supports 4 x M.2 slots and 8 x SATA 6Gb/s ports Intel® 10th Gen Processors DIMM.2_1 slot (Key M) via ROG DIMM.2, type 2242/2260/2280/22110 (supports PCIe 3.0 x4 mode)* DIMM.2_2 slot (Key M) via ROG DIMM.2, type 2242/2260/2280/22110 (supports PCIe 3.0 x4 mode)* Intel® Z490 Chipset M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 3.0 x4 & SATA modes)** M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 3.0 x4 mode) 8 x SATA 6Gb/s ports Intel® Rapid Storage Technology supports Raid 0,1,5,10 Intel® Optane™ Memory Ready * The DIMM.2 Slots are disabled by default. Please adjust BIOS settings to enable DIMM.2 Slots. ** When M.2_1 is operating in SATA mode, SATA6G_2 will be disabled.
  • Ethernet 1 x Intel® I225-V Ethernet 1 x Marvell® AQtion AQC107 10Gb Ethernet ASUS LANGuard
  • Wireless & Bluetooth Intel® Wi-Fi 6 AX201 2x2 Wi-Fi 6 (802.11 a/b/g/n/ac/ax) support 1024QAM/OFDMA/MU-MIMO Supports up to 2.4Gbps max data rate Support 2.4/5GHz Dual-Band Supports channel bandwidth: HT20/HT40/HT80/HT160 Supports CNVI interface Bluetooth v5.1* *BT 5.1 function will be ready in Windows 10 build 19041 or later.
  • USB Rear USB (Total 12 ports) 1 x USB 3.2 Gen 2x2 port(s) (1 x USB Type-C®) 3 x USB 3.2 Gen 2 port(s) (2 x Type-A + 1 x USB Type-C®) 6 x USB 3.2 Gen 1 port(s) (6 x Type-A) 2 x USB 2.0 port(s) (2 x Type-A) Front USB (Total 10 ports) 2 x USB 3.2 Gen 2 front panel connector(s) (suppport(s) USB Type-C®) 2 x USB 3.2 Gen 1 header(s) support(s) additional 4 USB 3.2 Gen 1 ports 2 x USB 2.0 header(s) support(s) additional 4 USB 2.0 ports
  • Audio ROG SupremeFX 8-Channel High Definition Audio CODEC S1220 - Impedance sense for front and rear headphone outputs - Jack-detection, Multi-streaming, Front Panel Jack-retasking - High quality 120 dB SNR stereo playback output and 113 dB SNR recording input - Supports up to 32-Bit/192kHz playback* Audio Features - SupremeFX Shielding Technology - ESS™ ES9023 DAC + RC4580 OP AMP - LED-illuminated audio jacks - Rear optical S/PDIF out port - Premium Japanese audio capacitors - Audio cover * Due to limitations in HDA bandwidth, 32-Bit/192kHz is not supported for 8-Channel audio.
  • Back Panel I/O Ports 1 x USB 3.2 Gen 2x2 port(s) (1 x USB Type-C®) 3 x USB 3.2 Gen 2 port(s) (2 x Type-A + 1 x USB Type-C®) 6 x USB 3.2 Gen 1 port(s) (6 x Type-A) 2 x USB 2.0 port(s) (2 x Type-A) 1 x ASUS Wi-Fi Module 1 x Intel® I225-V Ethernet port 1 x Marvell® AQtion AQC107 10Gb Ethernet port 5 x LED-illuminated audio jacks 1 x Optical S/PDIF out port 1 x BIOS FlashBackTM button 1 x Clear CMOS button
  • Internal I/O Connectors Fan and cooling related 1 x 4-pin CPU Fan header(s) 1 x 4-pin CPU OPT Fan header(s) 2 x 4-pin Chassis Fan header(s) 8 x 4-pin Radiator Fan header(s) 2 x W_PUMP+ header(s) 1 x WB_SENSOR header(s) 1 x 2-pin Water In header 1 x 2-pin Water Out header 1 x 3-pin Water Flow header 1 x NODE header Power related 1 x 24-pin Main Power connector 2 x 8-pin +12V Power connector 1 x 4-Pin EZ_PLUG connector Storage related 2 x M.2 slots (Key M) 1 x DIMM.2 slot supports 2 x M.2 slots (Key M) 8 x SATA 6Gb/s ports USB 2 x USB 3.2 Gen 2 Front Panel connectors (support(s) USB Type-C®) 2 x USB 3.2 Gen 1 header(s) support(s) additional 4 USB 3.2 Gen 1 ports 2 x USB 2.0 header(s) support(s) additional 4 USB 2.0 ports Miscellaneous 2 x AURA Addressable Gen 2 header(s) 2 x AURA RGB header(s) 1 x BIOS Switch button 1 x FlexKey button 1 x Front Panel Audio header (AAFP) 1 x LN2 Mode jumper 8 x ProbeIt Measurement Points 1 x ReTry button 2 x RSVD switch 1 x Safe Boot button 1 x Slow Mode switch 1 x Speaker header 1 x Start button 1 x 10-1 pin System Panel header 1 x Thermal Sensor header 1 x Thunderbolt header
  • BIOS 2 x 256 Mb Flash ROM, UEFI AMI BIOS
  • Operating System Windows® 10 64-bit
  • Form Factor EATX
