Hero image 0 of 2 Pack HC-05 Bluetooth RF Transceiver Module, 6 Pin Master Slave Integrated Wireless Serial Port BT Communication Module for Arduino, 0 of 4

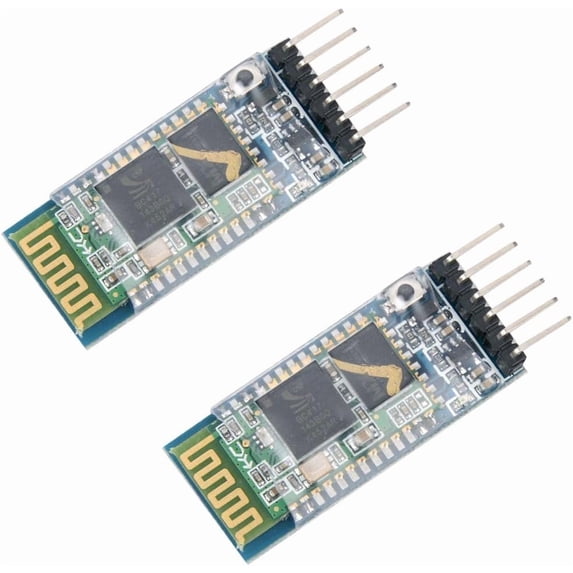

2 Pack HC-05 Bluetooth RF Transceiver Module, 6 Pin Master Slave Integrated Wireless Serial Port BT Communication Module for Arduino
(No ratings yet)
Key item features
- The factory setting is slave mode, but you can set this module to master mode so that you might be able to connect to other Bluetooth 2.0 devices.HC-05 Wireless BT Module
- HC-05 Wireless BT Module: with this HC 05 Bluetooth module,You can quickly add the Bluetooth feature to your Arduino project, and then you can use your android phone to control some gadgets, such as: switch, LED.
- Master and Slave 2-IN-1 HC 05 Module:Working Voltage 3.6V to 6V , Default baud rate:9600,Default pin:1234
- Button: Press the button, the module enter the AT mode. AT commands are executed only in AT mode.
- 6 PIN Dopunt Cable : with this Dupont Cable, you can easily connect this HC-05 Bluetooth module to your Arduino Board
Specs
Compatibility, Arduino
Brand, Kuman
Number of ports, 6
Model, HC-05
Accessories, Includes Dupont cable, 2 pack modules
Has written warranty, No
Compatibility
Arduino
Brand, Kuman
Brand
Kuman
Number of ports, 6
Number of ports
6
Model, HC-05
Model
HC-05
Accessories, Includes Dupont cable, 2 pack modules
Accessories
Includes Dupont cable, 2 pack modules
Has written warranty, No
Has written warranty
No
About this item
Product details
This HC-05 Bluetooth transceiver module comes with master and slave integrated design, featuring 6-pin interface for easy wiring and stable wireless serial port communication. Widely compatible with Arduino and most DIY electronic control projects, it realizes convenient short-distance Bluetooth data transmission without complex Bluetooth protocol learning. Built-in 3.3V voltage regulator chip, the module supports DC 3.6V to 6V wide voltage input (do not exceed 7V to avoid damage). Equipped with a connection status indicator LED, it clearly shows working status: fast flashing for unconnected state, slow flashing for AT command mode. It supports full-duplex serial communication after successful pairing, with a default baud rate of 9600, default pairing code 1234 and default device name HC-05. Users can switch master/slave mode, modify parameters and query device information via AT commands. The open transmission distance reaches up to 10 meters for daily wireless use.
- The factory setting is slave mode, but you can set this module to master mode so that you might be able to connect to other Bluetooth 2.0 devices.HC-05 Wireless BT Module
- HC-05 Wireless BT Module: with this HC 05 Bluetooth module,You can quickly add the Bluetooth feature to your Arduino project, and then you can use your android phone to control some gadgets, such as: switch, LED.
- Master and Slave 2-IN-1 HC 05 Module:Working Voltage 3.6V to 6V , Default baud rate:9600,Default pin:1234
- Button: Press the button, the module enter the AT mode. AT commands are executed only in AT mode.
- 6 PIN Dopunt Cable : with this Dupont Cable, you can easily connect this HC-05 Bluetooth module to your Arduino Board
info:
We aim to show you accurate product information. Manufacturers, suppliers and others provide what you see here, and we have not verified it.
Specifications
Compatibility
Arduino
Brand
Kuman
Number of ports
6
Model
HC-05
Warranty
Warranty information
Please be aware that the warranty terms on items offered for sale by third party Marketplace sellers may differ from those displayed in this section (if any). To confirm warranty terms on an item offered for sale by a third party Marketplace seller, please use the 'Contact seller' feature on the third party Marketplace seller's information page and request the item's warranty terms prior to purchase.
