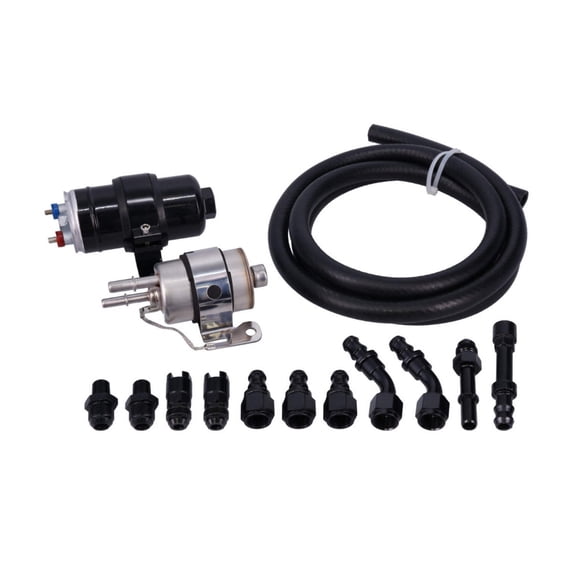

Universal LS EFI 85 GPH Fuel Pump and Filter Regulator Kit

Designed for GM LS-style and universal returnless fuel-system conversions, this fuel filter pressure regulator combines fuel filtration with fixed pressure control in a compact inline layout.

Fuel Filtration & Flow Performance
The regulator is configured for 58 Psi pressure control. Filtration is listed at 5 Microns. The inline layout helps combine filtration and regulation in one serviceable component. This setup is commonly used where a regulated feed line is needed for compatible EFI conversions.

Construction & Fuel-System Durability
Included filter element details with included fittings included help simplify fuel-line planning while supporting dependable fuel cleanliness and pressure control.

Sizing, Ports & Installation Details
Inlet quantity is One. Outlet quantity is Two. Outlet sizing is listed as -8 An. Verify feed, return, and regulated outlet routing before installation.

System Matching & Serviceability
Confirm pump flow capacity, EFI pressure requirements, hose routing, mounting position, and service clearance before final assembly.

COMPATIBLE WITH:
UNIVERSAL

Intended for gasoline EFI applications

COMMON VEHICLE APPLICATIONS:
Street performance applications
Restoration projects
Custom fuel-system builds

SPECIFICATIONS:
Pump Free Flow Rate: 320 Lph (85 Gph)
Pump Maximum Pressure: 90 Psi
Pump Housing Material: Aluminum
Pump Inlet Attachment: Female
Pump Inlet Size: -10 An
Pump Inlet Quantity: One
Pump Outlet Attachment: Female
Pump Outlet Size: -8 An
Pump Outlet Quantity: One
Filter Type: Inline
Inlet Size: -10 An O-Ring
Inlet Attachment: Female
Outlet Size: -10 An O-Ring
Outlet Attachment: Female
Filter Style: Inline
Inlet Quantity: One
Inlet Attachment: Male
Outlet Size: -8 An
Outlet Quantity: Two
Outlet Attachment: Male
Outlet Size: -8 An
Filter Element: Included
Smallest Particle Filtered: 5 Microns
Element Material: Paper
Housing Material: Steel
Housing Finish: Natural
Overall Length: 5.660"
Outside Diameter: 2.175"
Mounting Bracket: Included
Fittings: Included
Clamps: Not Included
Regulator Style: Return
Maximum Pressure: 58 Psi
