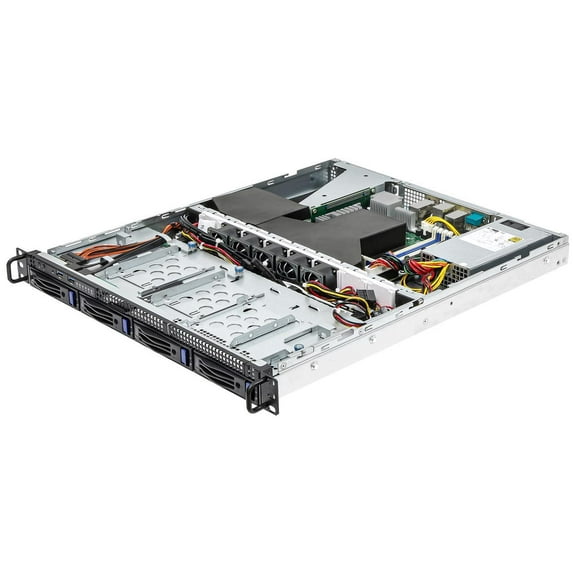

Asrock Rack 1U4LW-X570/2L2T 1U Rackmount Server Barebone AMD AM4 Ryzen PGA1331 X570 4x3.5 HDD 400W PSU Dual 10G

• 1U Rackmount with 400W PSU

• supports AMD Ryzen 5000 Series Desktop Processors

• 4 DDR4 ECC/ non-ECC UDIMM, up to 32GB each

• 4 Hot-swap 3.5'' HDD/SSD bays, 3 fixed 2.5" HDD/SSD bays

• 1 FHHL PCIe4.0 x16

• On-board dual 10GbE RJ45 and dual 1GbE RJ45

• Remote management (IPMI) System
Form Factor
1U Rackmount Support MB
X570D4U-2L2T Front Panel
Buttons
Power button w/ LED, UID w/LED, System reset LEDs
LANs, HDD activity, System health I/O Ports
2 Type-A (USB 3.2 Gen1) External Drive Bay / Storage
Front Side Drive Bay
4 Hot-swap 3.5" HDD/SSD (SATA 6Gb/s) bays
1 Slim ODD (BTO) Internal Side
3 fixed 2.5" HDD/SSD (SATA 6Gb/s) bays
1 M-key (PCIe4.0 x4 or SATA 6Gb/s), Form factor: 22110/2280/2260/2242 (CPU)
1 M-key (PCIe4.0 x4 or SATA 6Gb/s), Form factor: 2280/2260/2242 (X570)
-Supports PCIe3.0 when using AMD Ryzen 3000 Series Processors with Radeon Graphics Power Supply
Type
Single PSU Output Watts
400W Efficiency
80-Plus Gold AC Input
100-240V, 50-60Hz System Fan
Fan
5 PWM Easy-swap 40x28 mm fans Processor System
CPU
supports:
AMD Ryzen 5000 Series Desktop Processors
AMD Ryzen^TM 4000 G-Series Desktop Processors with Radeon^TM Graphics
AMD Ryzen^TM PRO 4000 and 3000 Series Desktop Processors
3rd Gen AMD Ryzen^TM Desktop Processors
AMD Ryzen 3000 Series Processors with Radeon Graphics Socket
AM4 PGA 1331 Chipset
AMD X570 System Memory
Capacity
4 DIMM slots (2DPC) Type
288-pin DDR4 ECC and non-ECC UDIMM
-For AMD Ryzen Desktop Processors with Radeon Graphics, ECC support is only with Processors with PRO technologies. DIMM Size Per DIMM
up to 32GB per DIMM DIMM Frequency
up to 3200 MHz
- AMD Ryzen 3000 Series Processors with Radeon Graphics support up to 2666 MHz Voltage
1.2V
