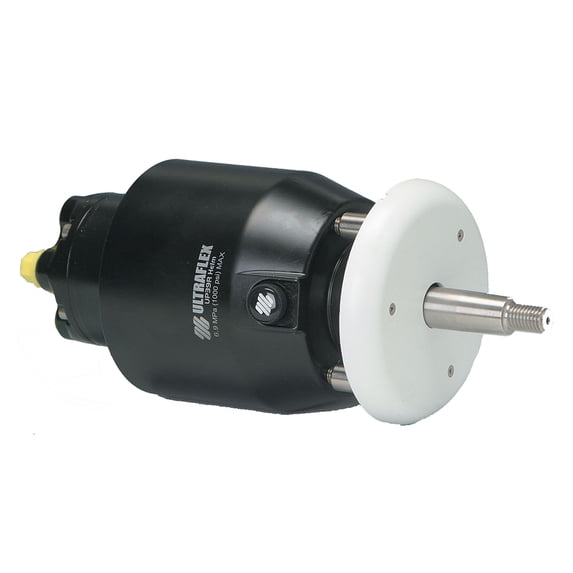

Hero image 0 of Uflex Usa UP28R Uflex Up28r Rear Mount Helm 1.7 Cu. 3/4" Tapered Stainless Steel Shaft, 0 of 2

Uflex Usa UP28R Uflex Up28r Rear Mount Helm 1.7 Cu. 3/4" Tapered Stainless Steel Shaft

(No ratings yet)

Key item features

UP28R Rear Mount Helm 1.7 cu. 3/4" Tapered Stainless Steel ShaftFeatures:
Available in four different displacement sizes
Compact design
Ball bearing piston race
Built-in lock valve for positive rudder lock
Integral relief valve for over-pressure protection
3/4” tapered stainless steel shaft
Easily accessible lock valve and shaft seal for replacement
Cast iron cylinder rotor for greater durability and longer life
1/4" NPT fitting for 3/8" tube
Includes 90° adjustable fittings for 3/8” tube and white bezel
UP45R pump is ideal for double cylinder outboard applications
UP45 pump is available also for inboard application
X68 (optional) - 40894Z Chrome bezel
KITF (optional) - 39664Y Remote fill adapterSpecifications:
Mounting: Retro-cruscotto
Displacement/Revolution: 28 cc-1.7 cu in
# of Pistons: 5
Relief Valve Setting: 70 Bar - 1000 PSI
Maximum Wheel Diameter: 710mm - 28"
Weight: 5kg - 11 lbs.

Specs

Boat accessory type, Rear Mount HelmBrand, UflexFeatures, LED LightingMaterial, MetalSize, One SizeColor, Multicolor

About this item

Product details

Uflex
UP28R
Back Mount 1.7

Helm Kits
Front mount helms are drop-in replacements for SeaStar^® Helm.
Compact design
Built-in lock valve for positive rudder lock
Integral relief valve for over-pressure protection
Compatible with Teleflex SeaStar cylinders, hoses and oil
3/4" tapered stainless steel shaft
Easily accessible lock valve and shaft seal for replacement
Convenient front of dash fill
1/4" NPT fitting for 3/8" tube, complete with elbow fittings
Relief valve pressure: 1000 psi

Attributes:
Mount = Rear
Pistons = 5
Volume = 1.7ci
Max Wheel = 28"

UP28R Rear Mount Helm 1.7 cu. 3/4" Tapered Stainless Steel ShaftFeatures:
Available in four different displacement sizes
Compact design
Ball bearing piston race
Built-in lock valve for positive rudder lock
Integral relief valve for over-pressure protection
3/4” tapered stainless steel shaft
Easily accessible lock valve and shaft seal for replacement
Cast iron cylinder rotor for greater durability and longer life
1/4" NPT fitting for 3/8" tube
Includes 90° adjustable fittings for 3/8” tube and white bezel
UP45R pump is ideal for double cylinder outboard applications
UP45 pump is available also for inboard application
X68 (optional) - 40894Z Chrome bezel
KITF (optional) - 39664Y Remote fill adapterSpecifications:
Mounting: Retro-cruscotto
Displacement/Revolution: 28 cc-1.7 cu in
# of Pistons: 5
Relief Valve Setting: 70 Bar - 1000 PSI
Maximum Wheel Diameter: 710mm - 28"
Weight: 5kg - 11 lbs.

info:

We aim to show you accurate product information. Manufacturers, suppliers and others provide what you see here, and we have not verified it.

Specifications

Boat accessory type

Rear Mount Helm

Brand

Uflex

Features

LED Lighting

Material

Metal

Warranty
