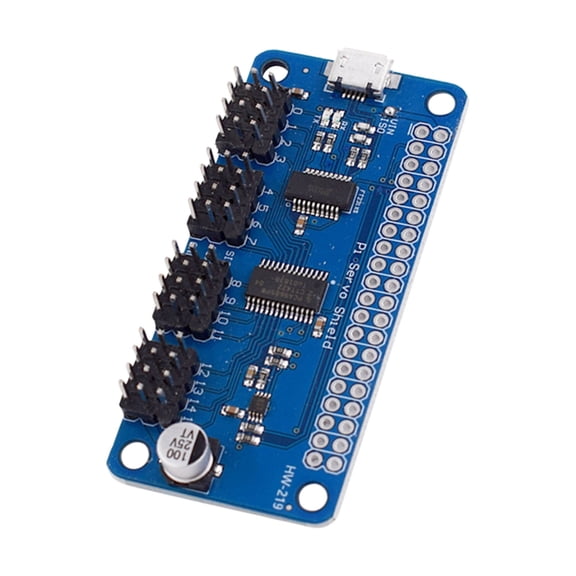

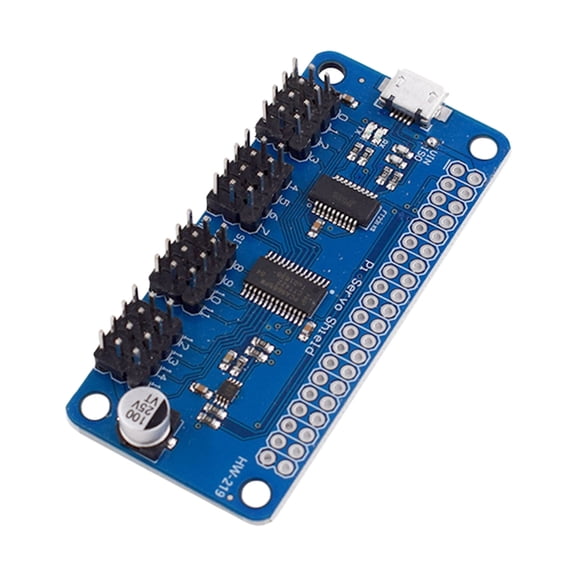

A servo motion controller is a device that allows you to precisely control the movement of servo motors, making it useful for projects like robotics, RC vehicles, or automated machines. These controllers let you manage multiple servos independently, adjust angles, and create smooth, repeatable movements. They’re popular for both hobby and professional applications, providing flexible control for everything from remote-controlled cars to advanced robotic arms. If you’re working with servos that need coordinated motion, using a controller can make programming and managing them much easier and more reliable.

• Power off everything first: Always disconnect power before wiring anything up.
• Plug in the servo wires: Match each servo’s signal, power, and ground cables to the correct ports on the controller. Double-check polarity to avoid issues.
• Secure the connections: Make sure everything’s firmly attached so connections don’t come loose during operation.
• Power on and test: Turn your setup back on, and use your controller’s software or knobs to check each servo’s movement.

Always refer to your controller’s manual for exact port labeling and recommended power supply to prevent issues.

Yes, you can usually connect various servo models to one motion controller, as long as the total power draw doesn’t exceed what your controller or power supply can handle. Pay attention to voltage and signal compatibility—most RC servos operate on standard voltages, but it’s wise to check each model’s specifications. Mixing sizes and torque levels is common in projects, like using strong servos for heavy tasks and smaller ones for lightweight parts. Try to avoid mismatched voltages or unusually high torque servos unless your controller supports them.

1. Install your controller’s software: Most servo controllers come with a program for your computer.
2. Connect the controller: Use USB or wireless links as directed in your manual.
3. Assign channels: Match each servo to a numbered slot in the software interface.
4. Create motion sequences: Enter the desired angles, speeds, and timing for each servo.
5. Test and adjust: Preview the motion, then tweak as needed until you’re happy with how it moves.

This approach gives you consistent, repeatable movements for models, robots, or animatronics.

Many servo motion controllers are designed to work alongside platforms like Arduino. You’ll usually find detailed pinouts or USB interfaces that help connect the two. With basic wiring and the right libraries, you can send commands from your Arduino board to the controller, letting you automate and customize how your servos move. Double-check both the controller and Arduino documentation for any setup tips to make integration easier. Compatibility can vary, so looking for controllers that mention Arduino support is a good idea if you’re planning that kind of project.
