If a relay fails, the component it controls (like a fan or pump) may not run or may work intermittently. A few simple checks can help:

1. Listen for a click: With the relay commanded on, many relays make a faint click. No click doesn’t prove failure, but it’s a clue.
2. Swap test: If there’s an identical relay in a non-critical circuit, swapping can help compare behavior. Only do this if the part number and pin layout match.
3. Use a relay tester: Plug the relay into a tester to quickly cycle it and get pass/fail feedback.
4. Check the socket: A circuit probe can verify coil power/ground and output at the socket.

Always follow your vehicle and tool manuals. Avoid bypassing high-current circuits without proper protection.

Most automotive relay testers apply the correct system voltage (12V or 24V) to the relay coil and then simulate operating conditions to see if the contacts switch reliably. Here’s what typically happens:

• Coil activation: The tester powers the coil and checks that it pulls in.
• Contact check: It verifies that the normally open/closed contacts change state when energized.
• Load simulation: Some models apply a controlled load or cycle the relay repeatedly to spot intermittent faults.
• Clear feedback: LEDs or an LCD display indicate pass/fail or basic measurements.
• Compatibility: Many testers accept common 4- and 5-pin ISO automotive relays and may include adapters.

Results can vary by relay design, so reviewing the tool’s manual and your vehicle’s specifications is a good practice.

You can do a quick coil and contact check with a multimeter, but take care and follow your vehicle’s manual:

1. Remove the relay: Note its orientation. Use the diagram on the case to identify coil and contact pins.
2. Check coil resistance: Set the meter to ohms. Across coil pins, you should see continuity—not infinite (open) or near zero (short).
3. Check contact state at rest: Common to normally closed may show continuity; common to normally open should not.
4. Energize and recheck: Using a safe, fused power source or a dedicated tester, energize the coil and confirm the normally open path now shows continuity.

This quick test can flag obvious issues, but a dedicated relay tester often provides faster, clearer results.

Readings vary by relay type, but these general patterns can point to trouble:

• Coil resistance: Across coil pins, infinite resistance suggests an open coil; near zero may indicate a short. Healthy coils typically show a measurable resistance (often tens to hundreds of ohms, but consult specs).
• Contact behavior: At rest, the normally open path should not have continuity; when energized, it should. If it stays open or stays closed regardless of coil activation, contacts may be faulty.
• Voltage at coil: During command, you should see close to system voltage (12V or 24V). Much lower could indicate wiring or control issues, not just the relay.
• Voltage drop under load: A high drop across contacts can suggest pitting or wear.

Use a relay tester or multimeter carefully and verify against your vehicle’s documentation.

Choosing the right tool comes down to your vehicle and how you diagnose:

• Voltage compatibility: Pick a tester that supports your system (12V, 24V, or both).
• Pin support: Look for common 4- and 5-pin ISO relay compatibility and socket adapters if needed.

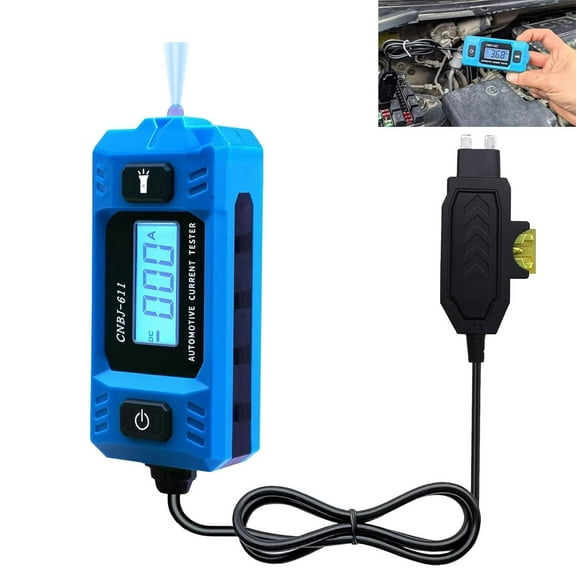

• Test style: Pass/fail bench testers are quick; kits with jumpers help test circuits at the socket; current probes can help check loads and parasitic draws.
• Load and cycling: Intermittent issues are easier to spot with tools that cycle the relay and simulate load.
• Display and usability: LEDs or a backlit LCD, clear labels, and built-in lighting can make work easier in low light.
• Durability and portability: Compact, rugged housings are helpful for DIY and shop use.

Review the manual before purchase to confirm compatibility with your relays and test approach.
