Piston Compression Tool(304)

Using a caliper piston compression tool is straightforward, but taking it slow helps protect seals and components.

1. Identify the piston type: Many front calipers push straight in; some rear calipers need to be rotated (wind-back).
2. Prep safely: Support the vehicle securely. Remove the caliper and keep the hose relaxed. Loosen the master cylinder cap and place a rag to catch any fluid rise.

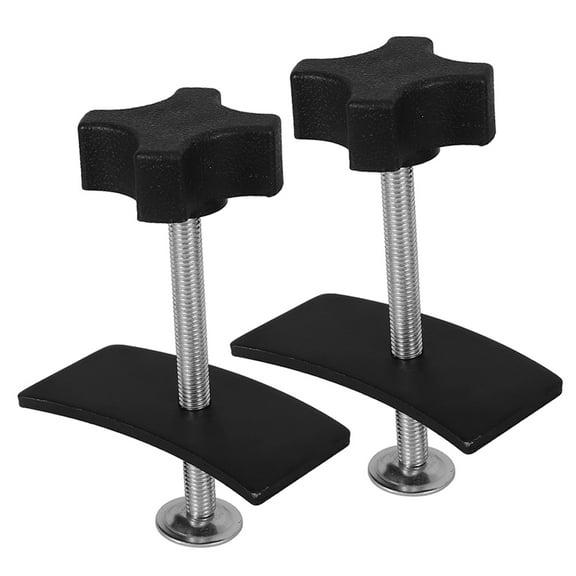

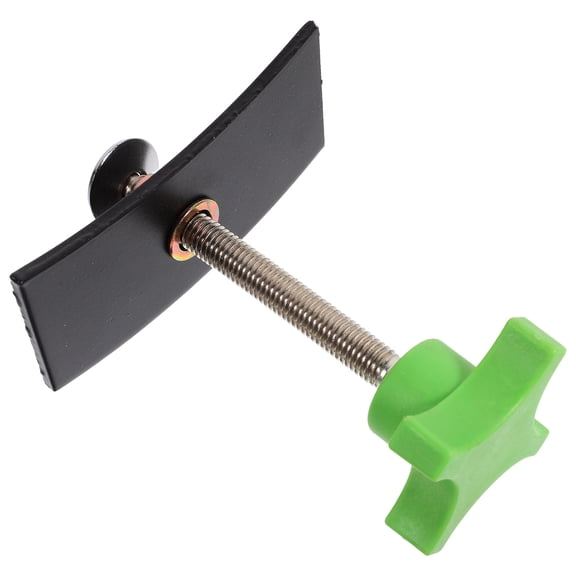

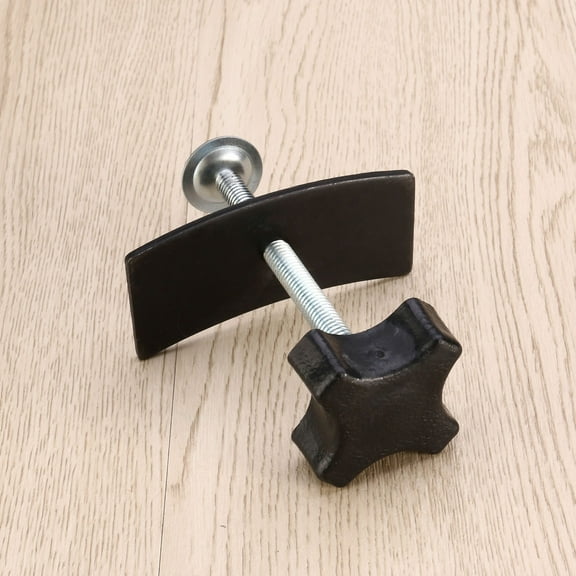

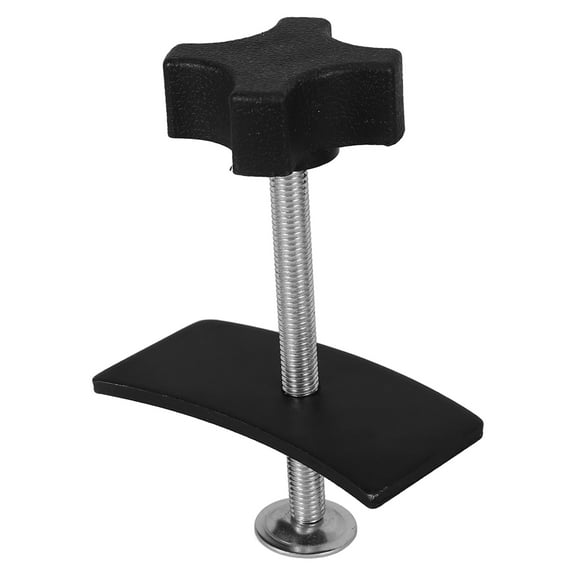

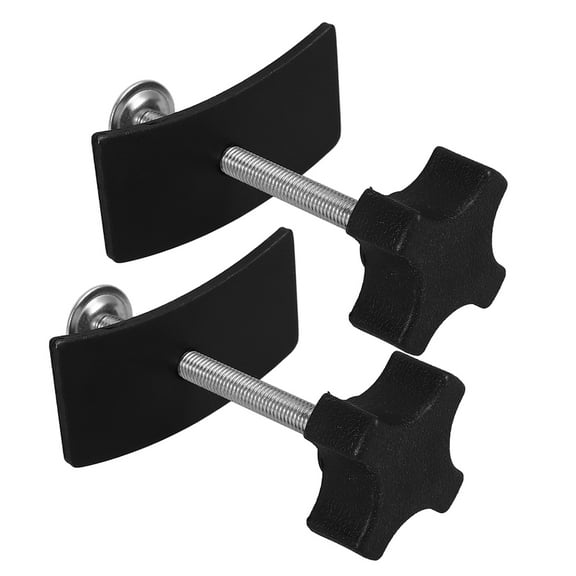

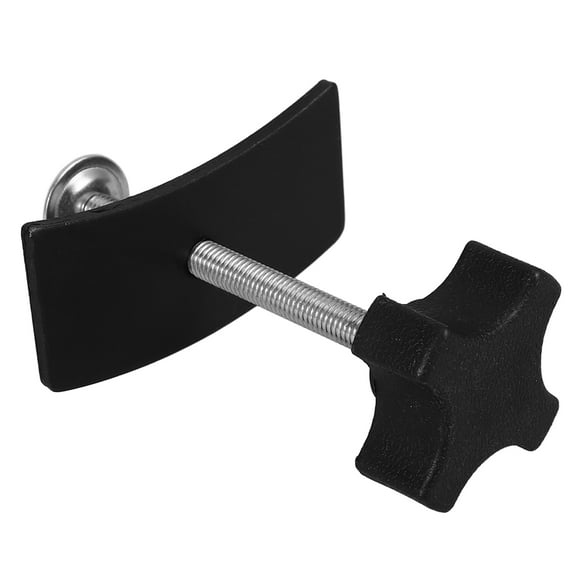

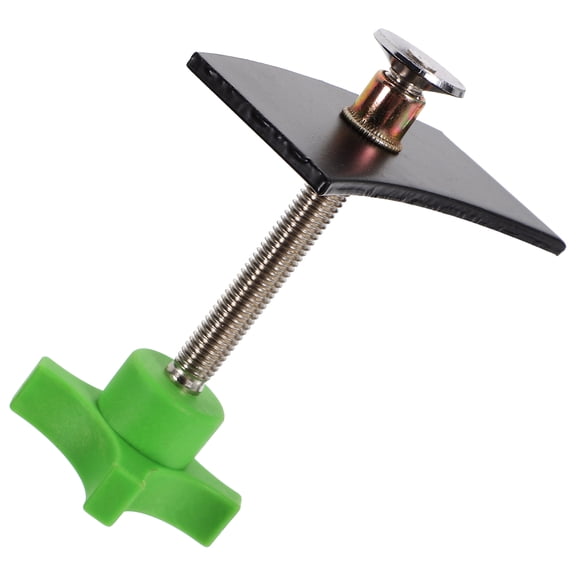

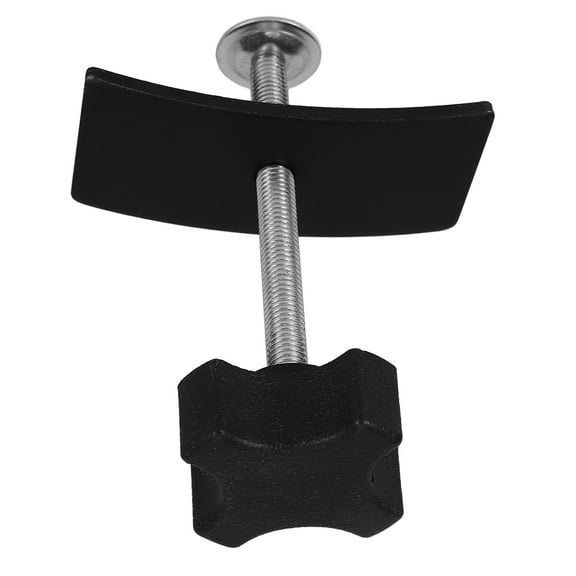

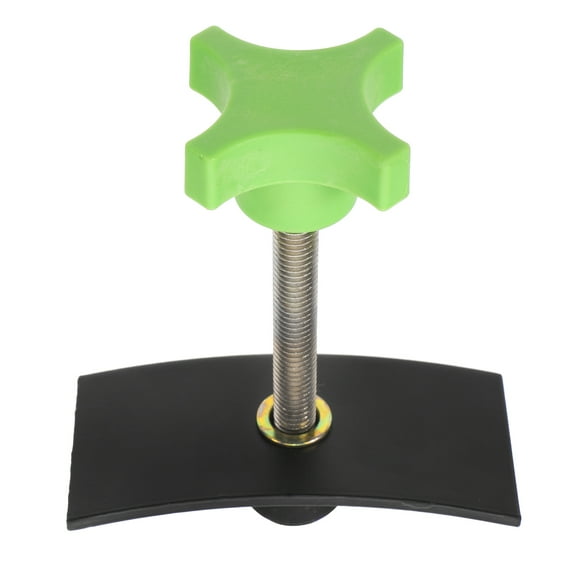

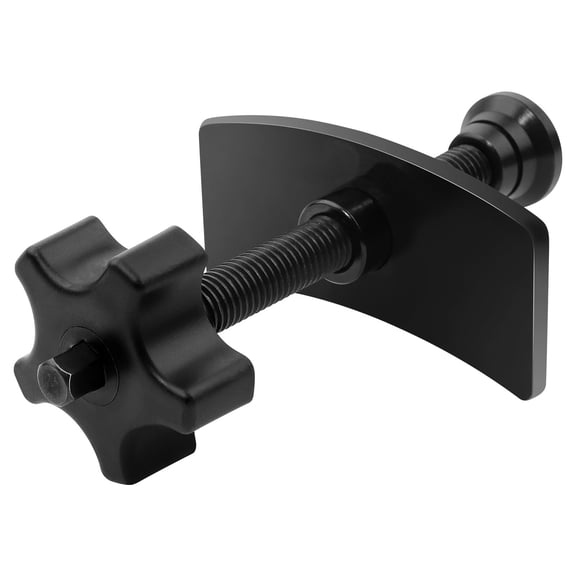

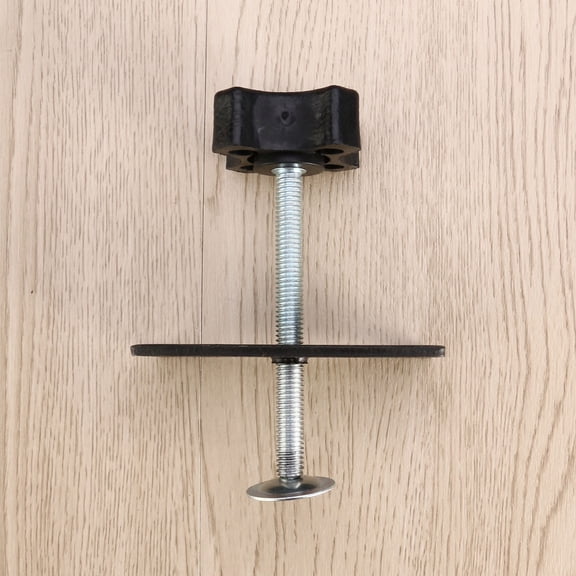

3. Set the tool: Place the compressor’s plates between the piston and the opposite pad (or an old pad). Keep the tool square.
4. Compress slowly: Ratchet or turn the tool a little at a time. Stop if you feel unusual resistance.
5. Wind-back pistons: Use the correct adapter and rotate the piston in the direction required by your vehicle.

Consult your service manual, and use electronic parking-brake service mode when applicable.

If you’re stuck without a dedicated tool, some DIYers use a C-clamp with an old brake pad as a broad, even surface. This can work in a pinch, but proceed carefully.

• Go slow and keep things square: Uneven pressure can damage seals or the boot.
• Watch the fluid level: Crack the reservoir cap and place a rag to catch any rise; avoid spills.
• Never force it: If the piston resists, stop and reassess.
• Rear “wind-back” pistons: Don’t press these; they usually need to be rotated with a proper wind-back tool.

For better control and to reduce risk, a dedicated compression tool is recommended. You can find a variety of options and customer reviews on Walmart.com.

A few preventable missteps can lead to headaches later. These tips can help your swap go smoother:

• Letting the caliper hang: Always support it; don’t strain the brake hose.
• Twisting or kinking hoses: Keep the hose relaxed and routed correctly.
• Skipping guide pin service: Clean and use high-temp brake lubricant on slides (if applicable).
• Overlooking piston orientation: Some pads require the piston to align with notches—check your manual.
• Incorrect fastener torque: Tighten mounting bolts and banjo bolts to spec with new crush washers.
• Forcing a screw-in piston: Use a wind-back tool where required.
• Not managing fluid: Monitor reservoir level; clean any spills promptly.
• Skipping pedal pump and checks: After reassembly, gently pump the pedal and inspect for leaks.

Many rear calipers include a parking-brake mechanism that uses a screw-type piston. These typically need to be rotated rather than simply pressed.

• Look at the piston face: Notches, slots, or holes often indicate a wind-back design.
• Parking brake clues: If the caliper houses the parking brake (cable or electronic), a wind-back tool may be required.
• Service info: Your owner’s or service manual usually specifies push-in vs. screw-in and the rotation direction.

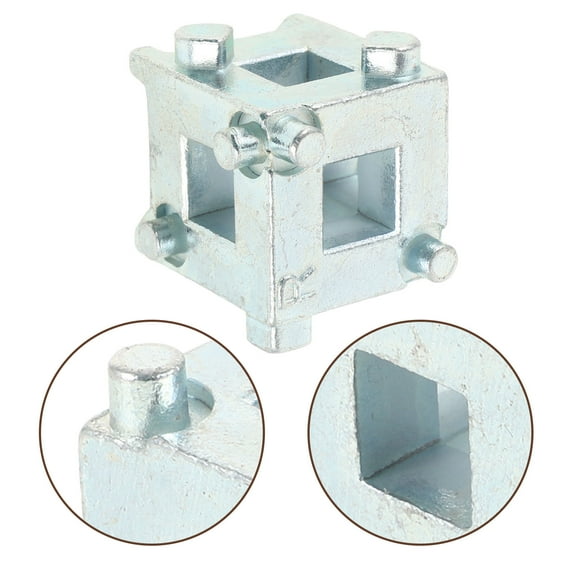

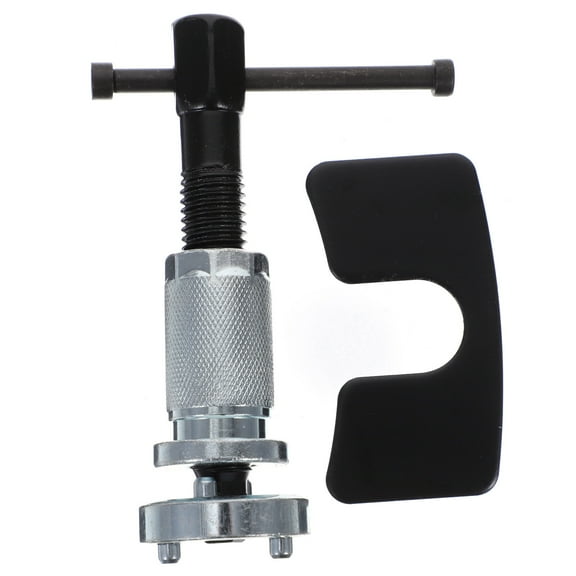

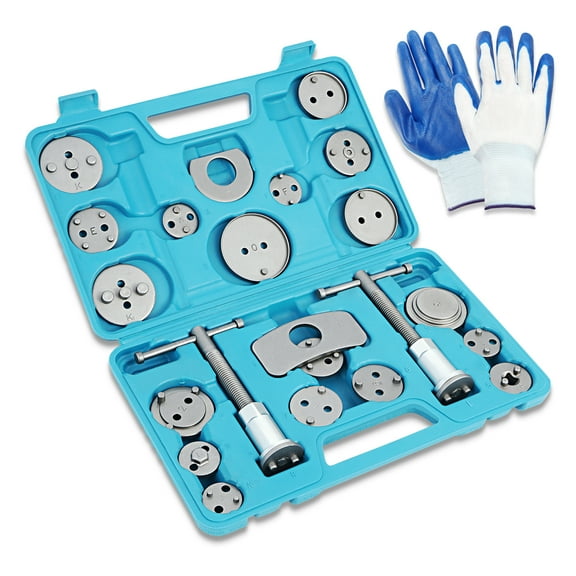

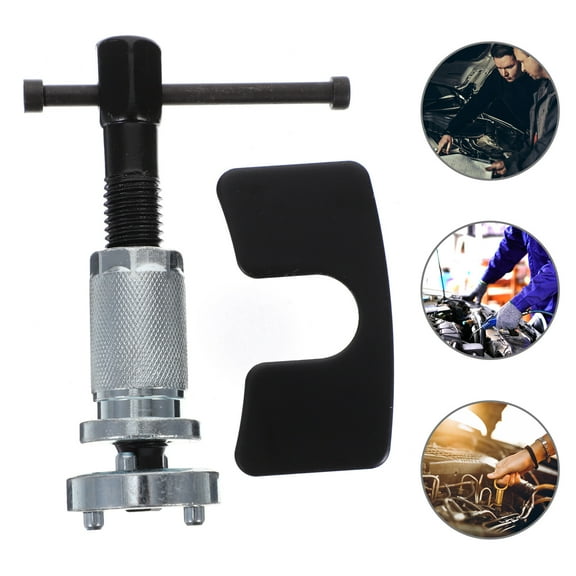

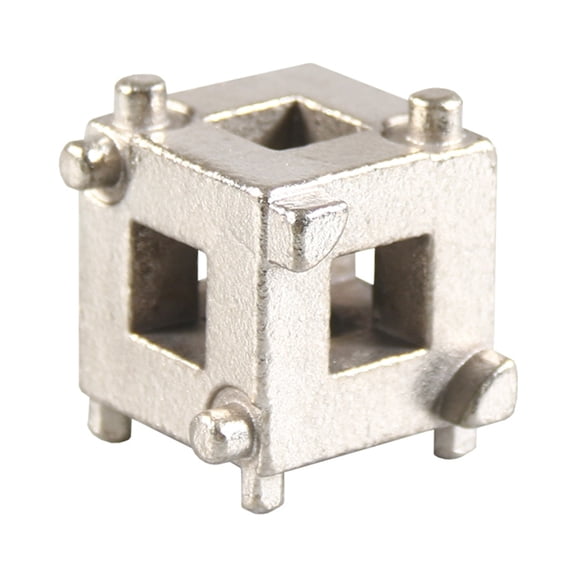

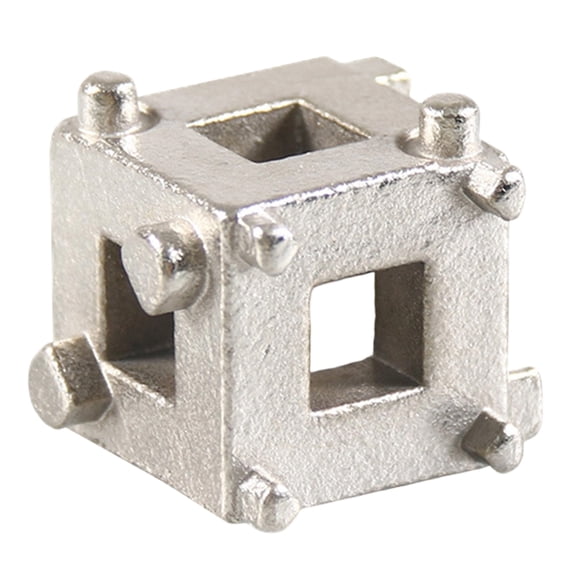

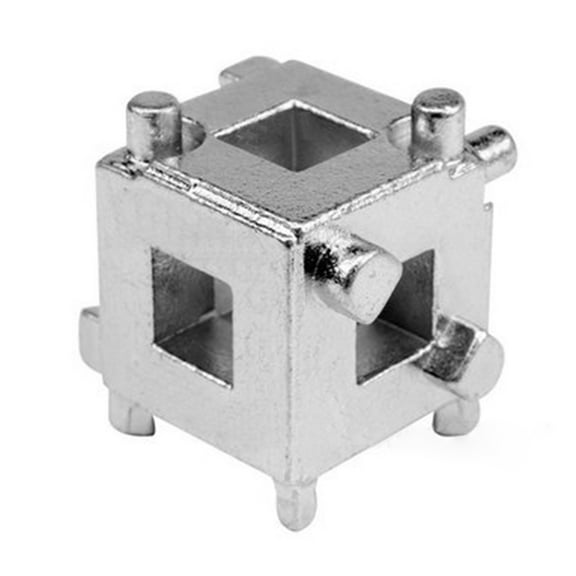

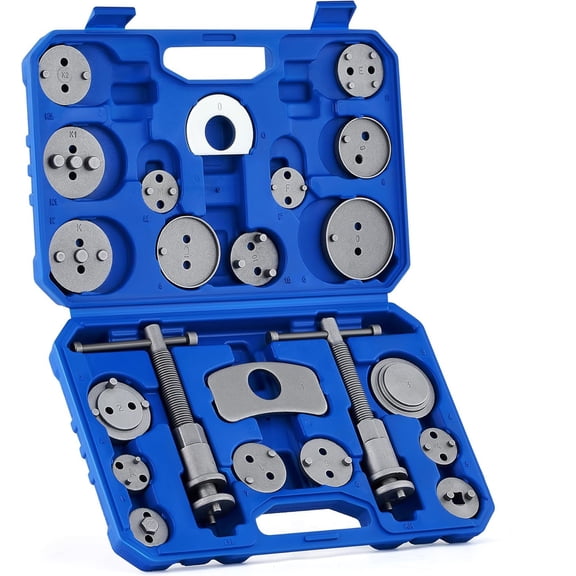

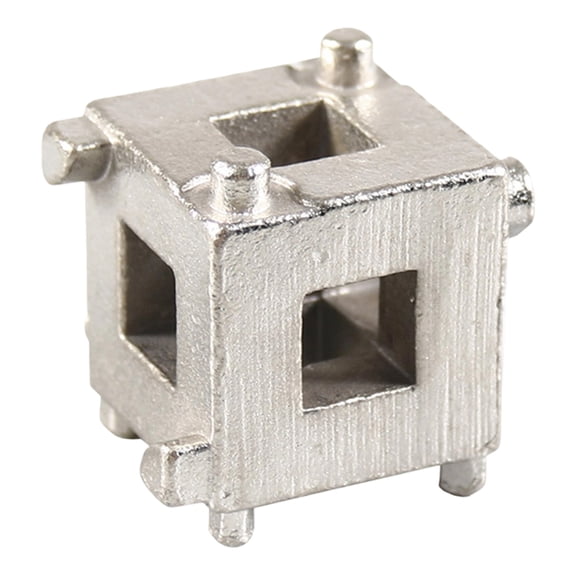

• Use the right tool: A wind-back kit or a brake piston “cube” that matches your piston pattern can help rotate it evenly.

Avoid forcing a screw-in piston with a press tool, as that can damage internal components. Take your time and follow vehicle-specific guidance.

They’re both called “piston” tools, but they do very different jobs:

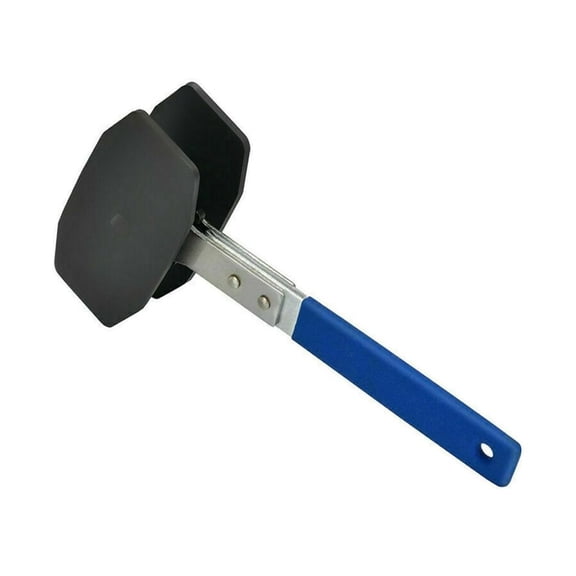

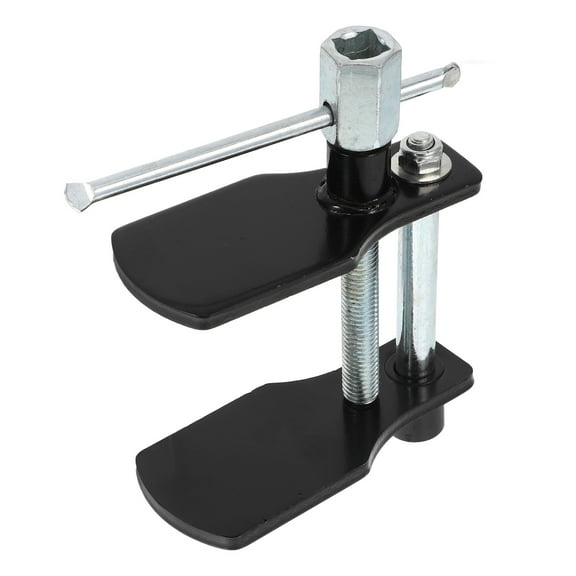

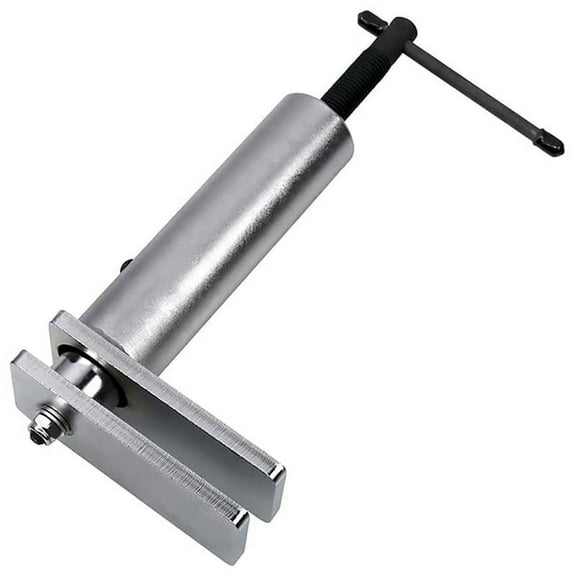

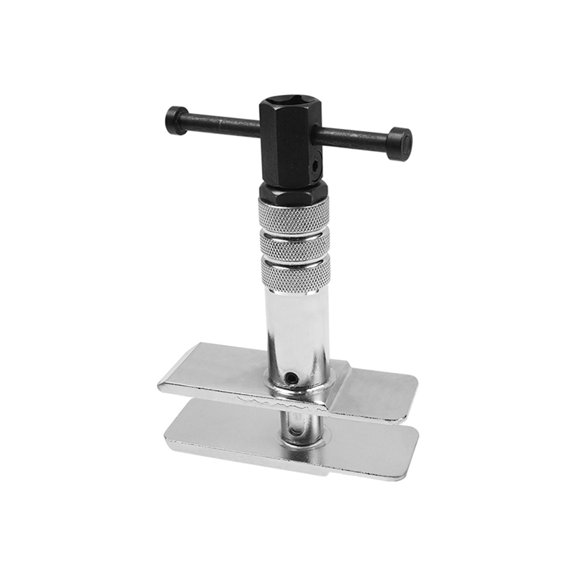

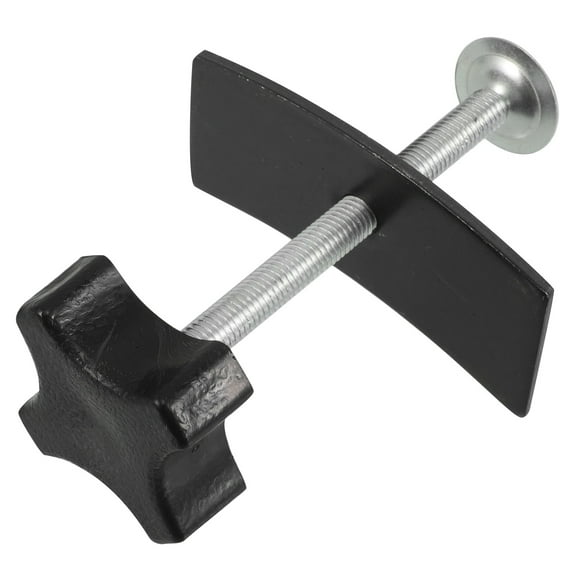

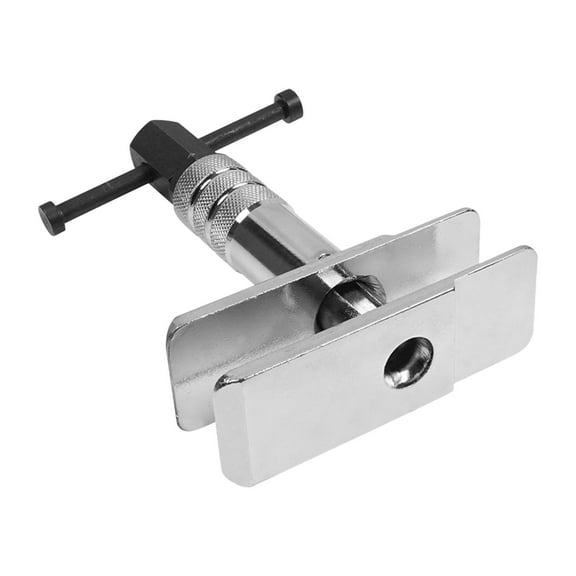

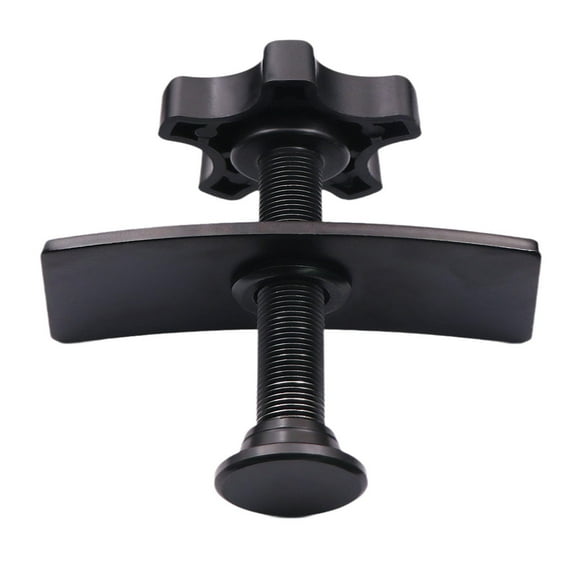

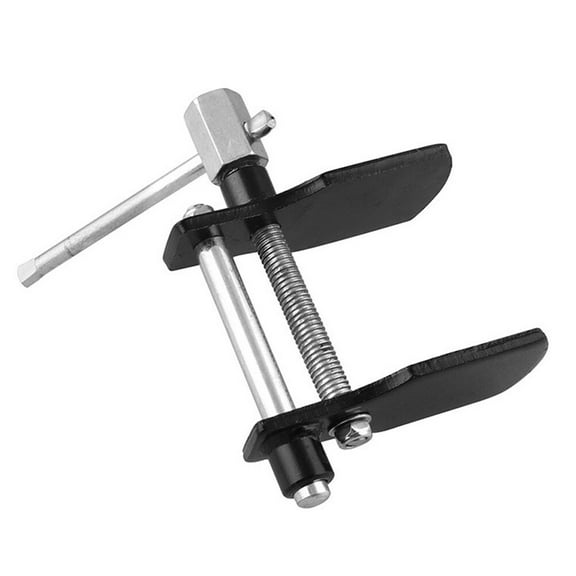

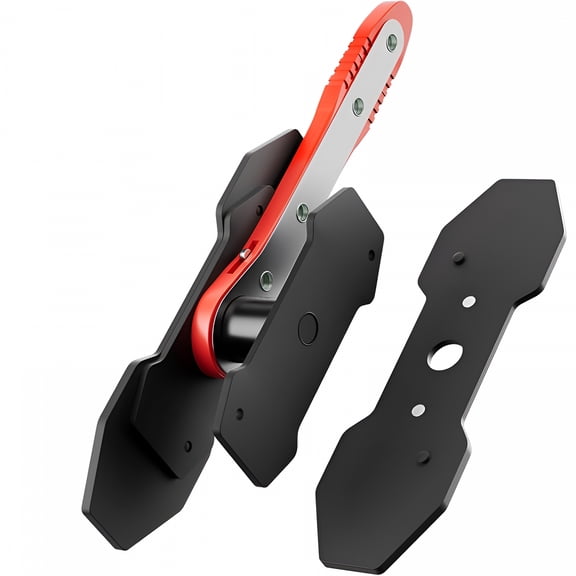

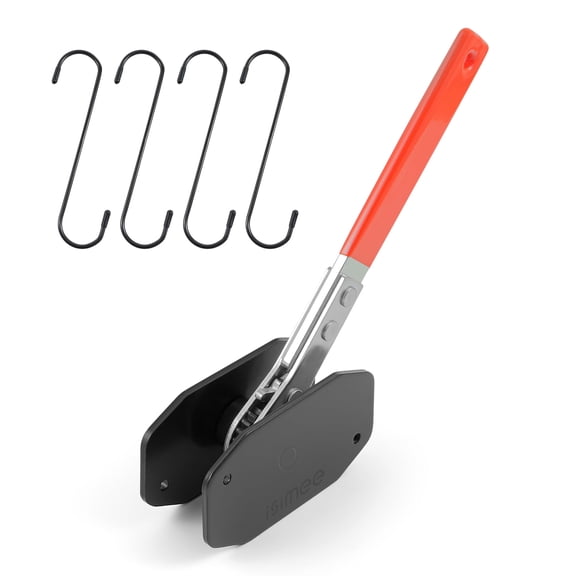

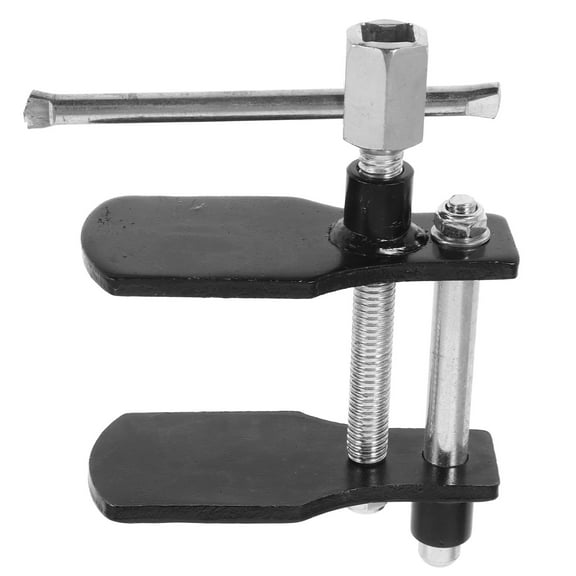

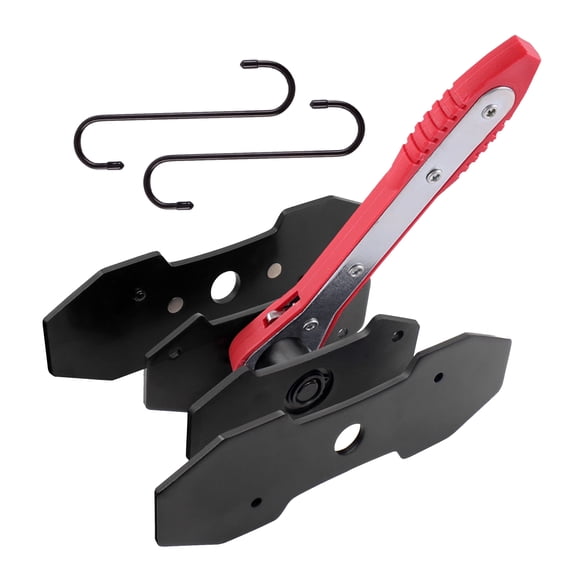

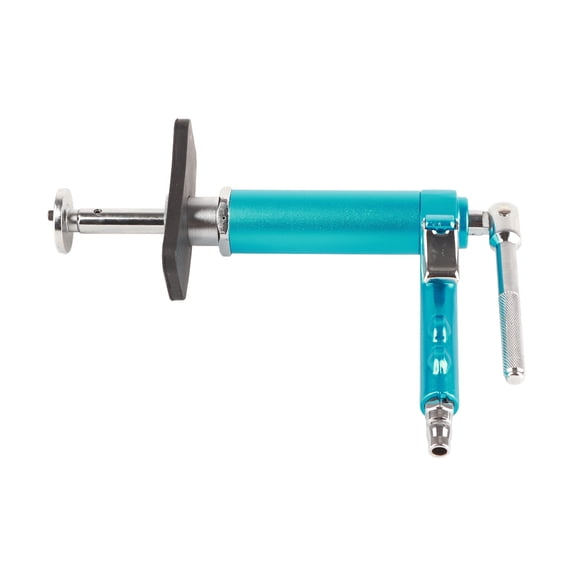

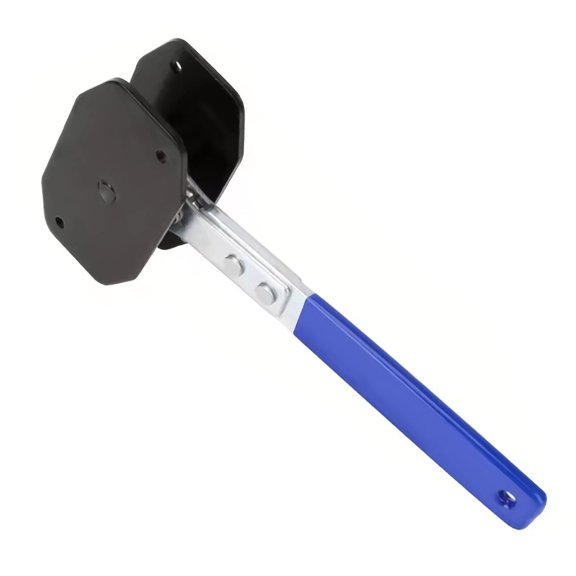

• Brake caliper compression tools: Spread or retract brake caliper pistons during pad or caliper service. They use plates, a ratchet, or a wind-back mechanism to apply slow, even pressure.

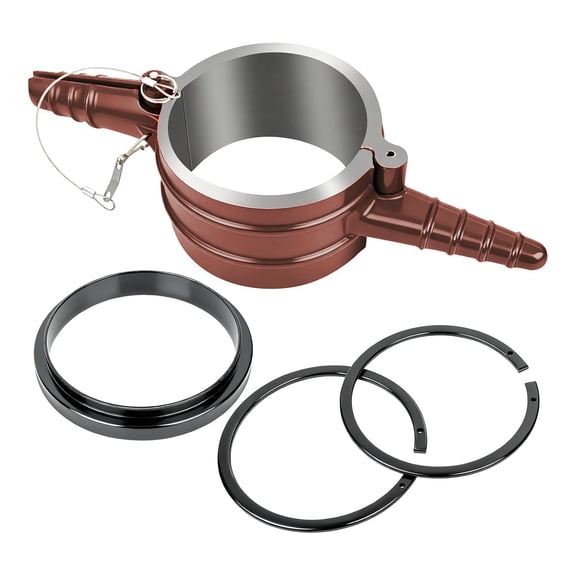

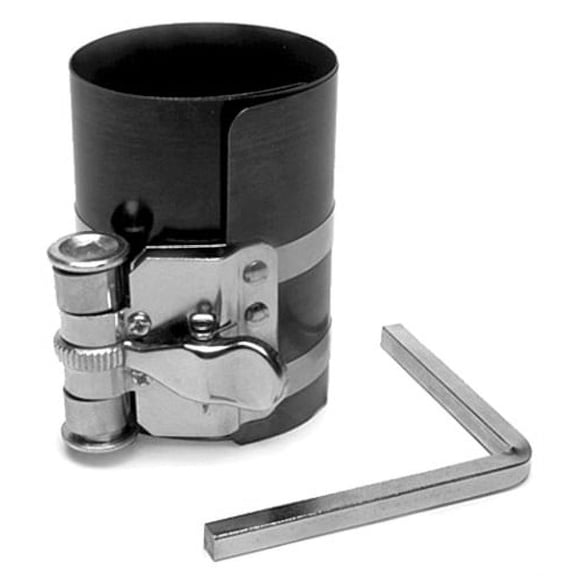

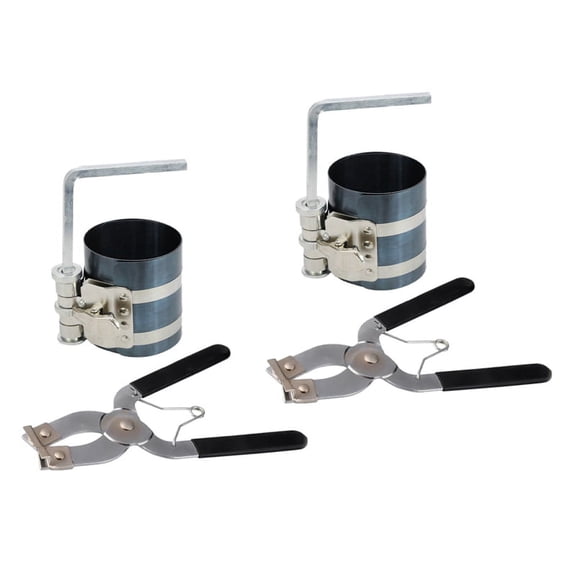

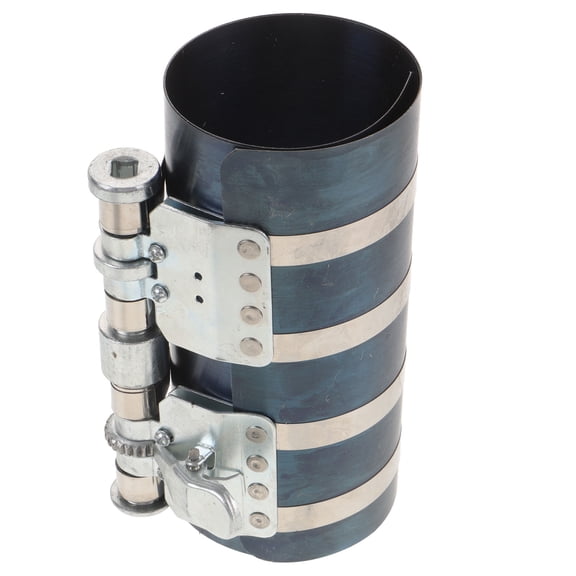

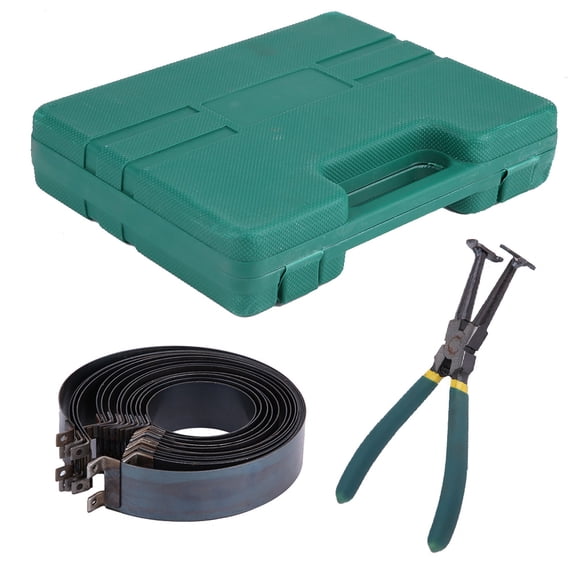

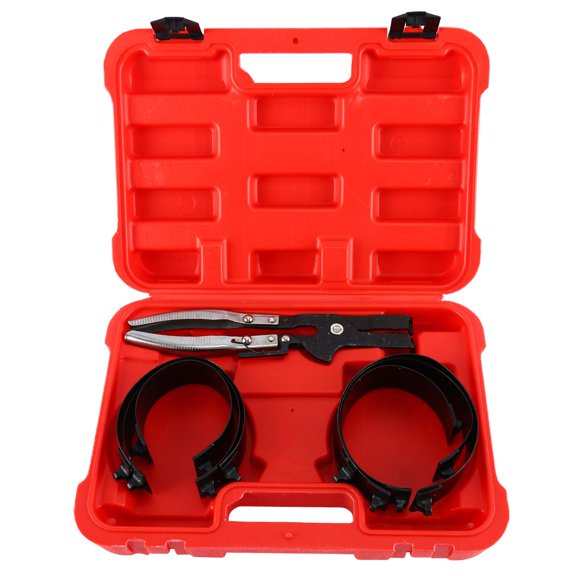

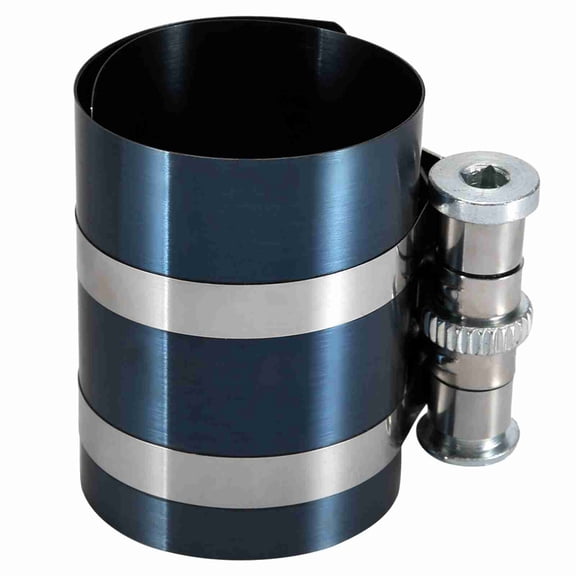

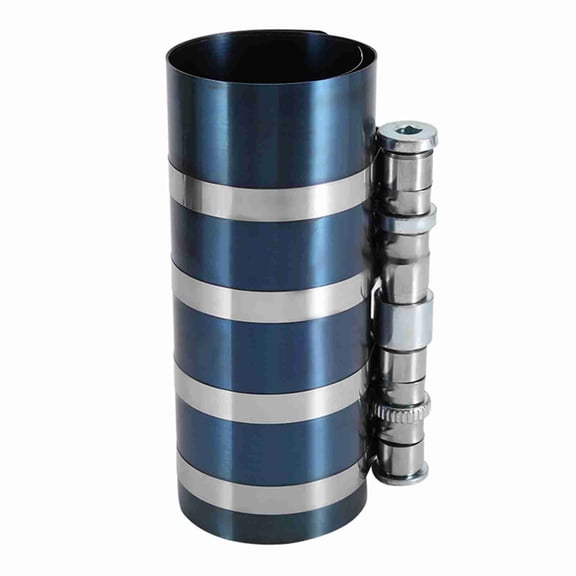

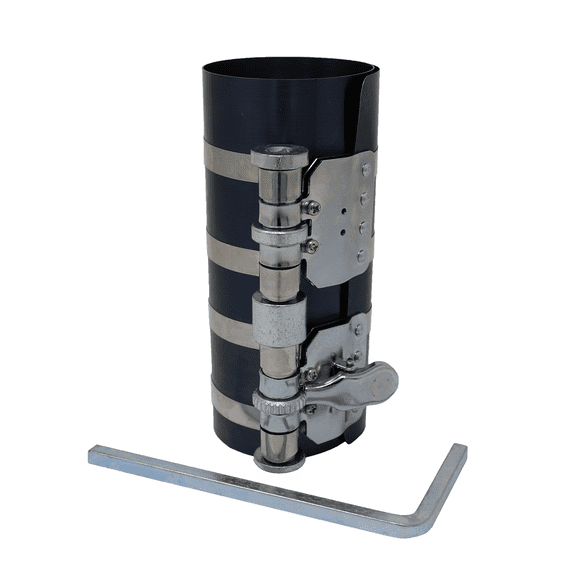

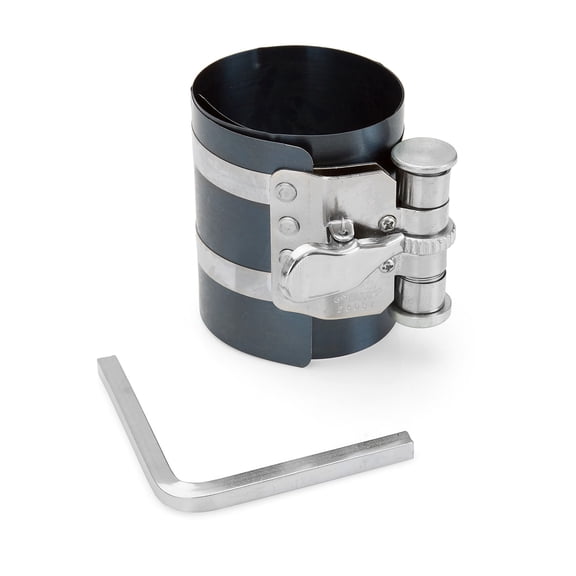

• Piston ring compressors: Compress engine piston rings so a piston can be installed into a cylinder bore. These use bands or sleeves with pliers or ratchets sized to engine diameters.
• Not interchangeable: Caliper tools are for brake service; ring compressors are for engine assembly.

When shopping, match the tool to the task. You’ll find both categories available, with product details and reviews to help you decide which style fits your project.
