There are a few signs that an electric range element may be failing. If you notice any of the following, further inspection can help:

• No heat or uneven heat even at higher settings.
• Visible damage such as blisters, cracks, burn spots, or a broken coil.
• Sparking, buzzing, or a burnt odor during use.
• Tripped breaker when that burner or function is turned on.

For plug-in coil elements, you can power off the range, let it cool, and swap the suspect coil with a same-size burner to compare performance. If issues move with the element, it’s likely the part. If not, the receptacle or control may be involved. Smooth-top radiant and oven elements can be harder to diagnose; visual checks and continuity testing (or a qualified technician) can be helpful.

Home ranges use a few different element types, and matching the type is key for compatibility:

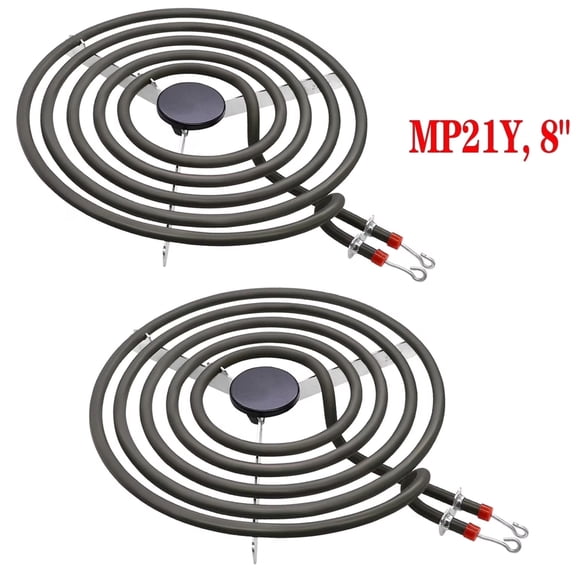

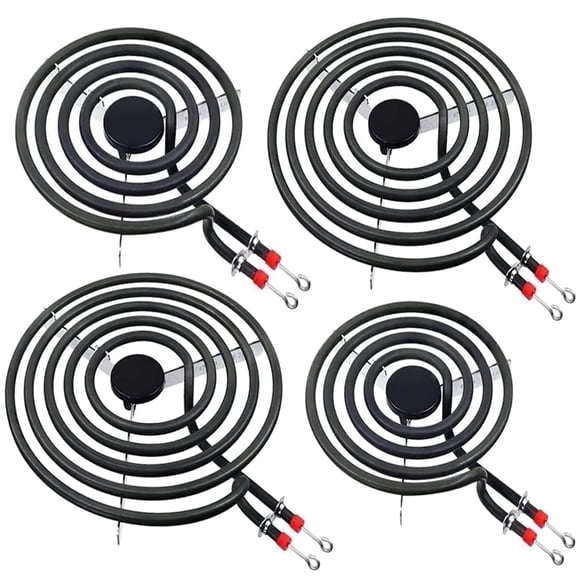

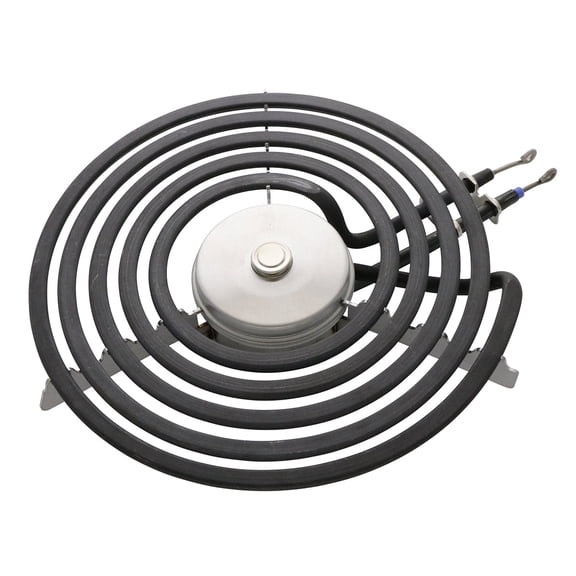

• Plug-in coil surface elements: Common 6" and 8" coils that plug into a receptacle under the cooktop. Turn counts and wattage can vary.
• Radiant elements for smooth-tops: Under-glass disks (single or dual) that heat the surface.

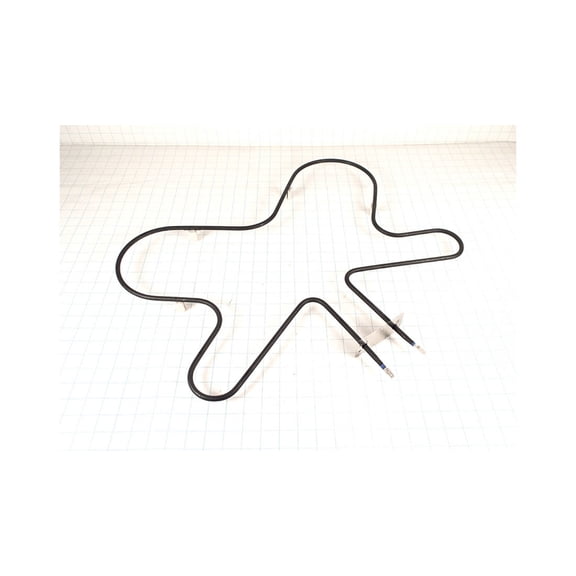

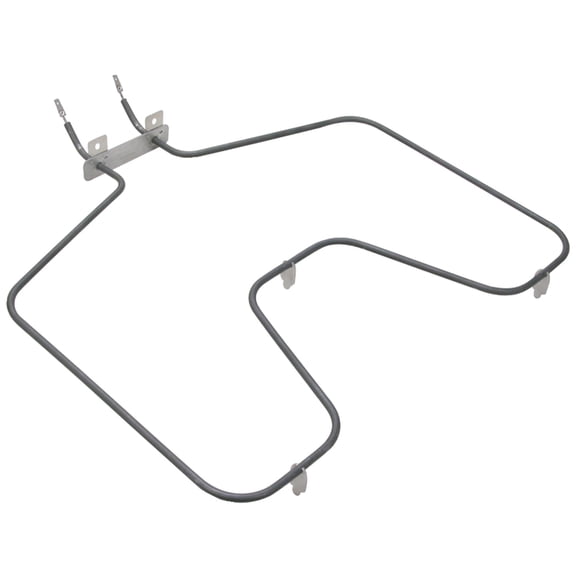

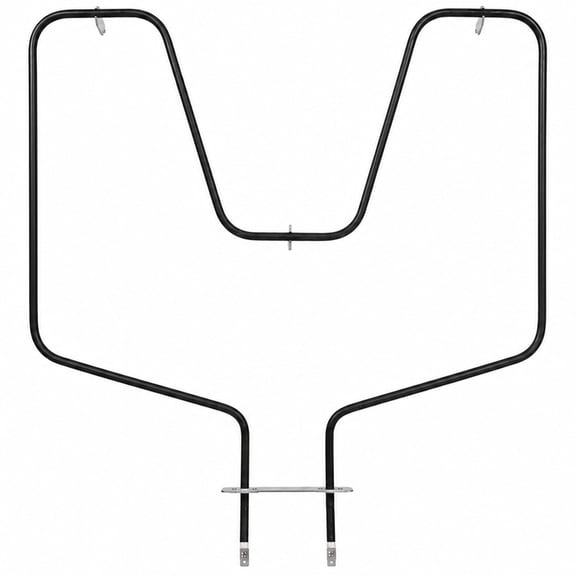

• Oven bake elements: Lower heating elements in the oven cavity, with various shapes and mounting styles.
• Oven broil elements: Upper elements used for broiling.

Fit depends on diameter, wattage, connector style, and mounting. Check your range’s model number and the old part’s markings. Product pages often list compatible models and dimensions, which can simplify finding the right match.

Replacing a plug-in coil can be straightforward, but safety comes first:

1. Disconnect power by unplugging the range or switching the breaker off. Let all parts cool completely.
2. Remove the old coil by lifting slightly and pulling straight out from the receptacle.
3. Inspect the receptacle for discoloration, pitting, or looseness; consider replacing it if worn.
4. Install the new coil by aligning the terminals and pushing firmly until seated; don’t force it.
5. Restore power and test with a gradual heat setting.

Smooth-top radiant and oven elements involve different steps and may require panel removal. Following the manufacturer’s instructions or working with a qualified technician can be a safer approach if you’re unsure.

Matching size and connections helps you get the right fit:

• Measure the diameter of your current surface element (exclude the plug terminals). Common coil sizes are 6" and 8".

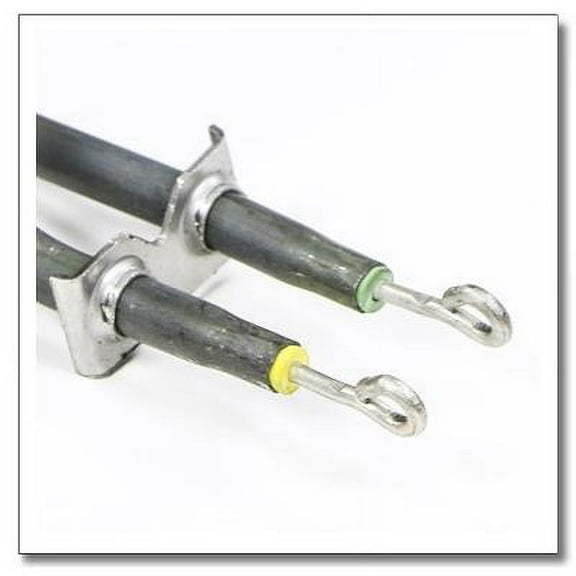

• Match the connector style so the prongs fit your receptacle.
• Note wattage and turn count to keep similar heating performance.
• Find the part number stamped on the element frame or in your range manual.
• For smooth-top radiant, match the element’s diameter and wattage; for oven elements, match the shape and mounting points.

When browsing, use filters for size and type, and review compatibility lists and photos of terminals and brackets. Many items are available for pickup or delivery, which can make replacement planning easier.

The receptacle (the socket the element plugs into) can wear over time. Consider replacing it if you see:

• Darkened, melted, or pitted terminals on the socket or element prongs.
• Loose fit that causes wobbling or intermittent heat.
• Sparking or buzzing at the connection point.

Replacing a worn receptacle along with the element can help restore a solid electrical connection and more consistent heating, though results can vary by condition. Some replacement listings bundle a receptacle kit and hardware for convenience. Always disconnect power before any wiring work, and if you’re not comfortable with electrical connections, a qualified technician is a prudent option.
