An AV out cable carries audio and video from a source device (like a DVD player, game console, or camcorder) to a display or sound system. You’ll see a few common styles:

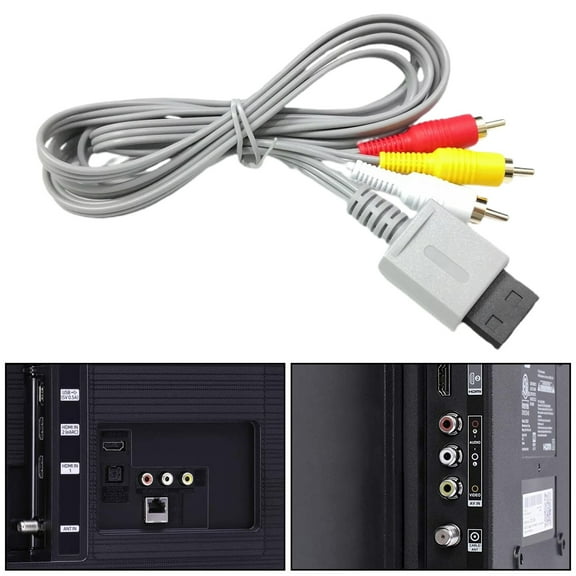

• Composite RCA: Yellow (video) + red/white (stereo audio).
• Component RCA: Red/green/blue (video) + red/white (audio).

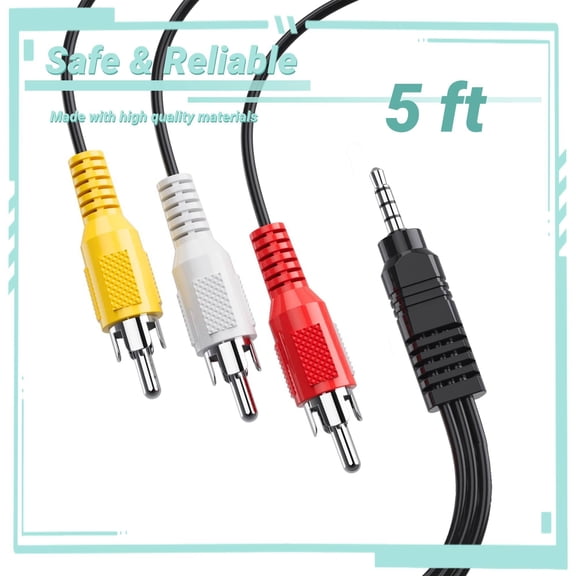

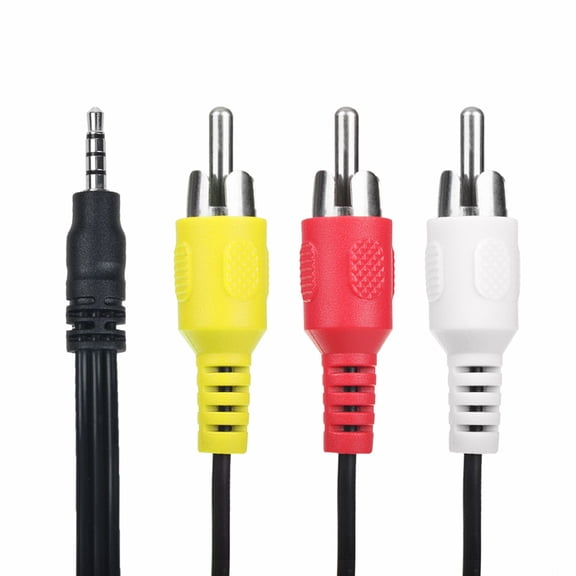

• 3.5mm TRRS-to-RCA: A single mini plug on one end to red/white/yellow on the other.

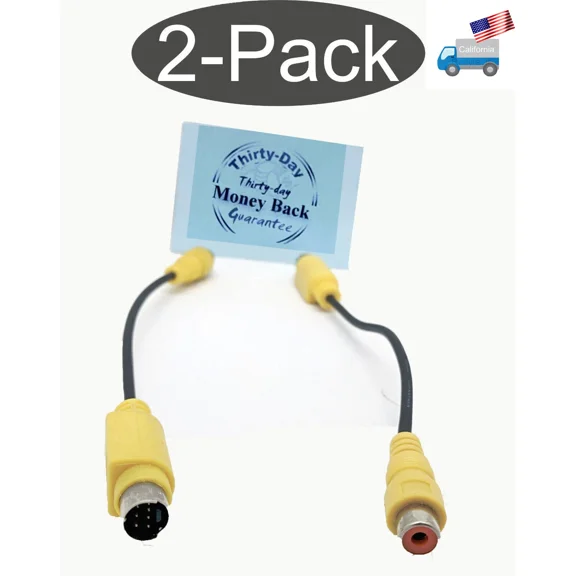

• Coaxial and S-Video: Used on some TVs and set-top devices.

Some devices also use HDMI for combined digital audio/video. Always match the connector type and length to your device and TV to support the signal you need.

AV out lets your device send audio and video to another screen or speakers. It’s handy when you want to:

• Watch on a larger screen: Play camcorder footage or a portable DVD on a TV.
• Use retro gear: Connect older consoles or VCRs to compatible inputs.
• Route audio: Send sound to a receiver or powered speakers.
• Share content: Show photos or presentations from devices that support AV output.

Quality and compatibility depend on the ports on both devices. Analog connections (like composite) are generally standard-definition, while component and HDMI can support higher resolutions where supported.

They describe signal direction:

• AV Out: Sends audio/video out of a device (e.g., a DVD player outputting to a TV).
• AV In: Receives audio/video into a device (e.g., a TV’s input or a capture device).

Examples: A camcorder’s AV out connects to a TV’s AV in. A TV usually has multiple AV inputs for different sources. Some devices use a single 3.5mm jack labeled AV that works with a breakout cable; pinouts vary, so using the correct cable matters. If ports don’t match, an adapter or converter may be needed.

1. Power off both devices to avoid accidental damage.
2. Match connectors: Use composite (yellow/red/white), component (red/green/blue + red/white), or the correct 3.5mm-to-RCA AV cable based on your device and TV ports.
3. Color-match plugs to jacks. Don’t force a connector.
4. Select the input on the TV (e.g., AV, Video, Component) using the remote.
5. Test and adjust: Start playback, then tweak TV input settings or device output options if needed.

If your device only has HDMI and your TV only has RCA, a powered HDMI-to-AV converter is typically required. Results can vary based on device settings and cables used.

Pick the cable that fits your device’s output and your TV’s input:

• Composite RCA (yellow/red/white) for many older devices.
• Component RCA (red/green/blue + red/white) for higher-quality analog video.
• 3.5mm TRRS-to-RCA for camcorders, portable players, or small AV jacks (ensure the correct pinout).
• Coaxial for cable/antenna-style connections; S-Video on some legacy gear.

Also consider length (with a little extra slack), build (shielding and strain relief), and connector angles for tight spaces. On Walmart.com, filters for connector type and length can help you narrow options, and checking product details and reviews can support compatibility decisions.
