Most 12-gauge, 2-conductor-with-ground NM-B cable is commonly used on 20-amp residential branch circuits. Many item listings note 600 V and 90°C insulation, but in typical dwelling wiring, breaker size is what governs the usable current. Installation conditions and local code may affect what’s allowed.

• Typical pairing: 20A single-pole breaker on 120V circuits.
• Also seen: Used on 15A circuits when the circuit is designed for 15A.
• Avoid: Don’t put 12/2 on a breaker larger than the wire’s allowed rating.

Always confirm the product specs on the item page and follow local codes. If you’re unsure about ampacity or circuit design, consider consulting a licensed electrician.

Both are common indoor cables, but they serve different circuit sizes. The choice depends on your load, breaker size, and local code.

• 12/2 (12-gauge): Thicker conductors, typically used on 20A circuits. It offers more capacity but is stiffer and can be harder to pull through studs and boxes.
• 14/2 (14-gauge): Thinner conductors, typically used on 15A circuits. Easier to handle for lighting and general-use circuits when allowed by code.

Match the breaker to the smallest wire gauge on the circuit. Some areas have specific requirements for certain rooms or circuits. Check the item’s specifications and your local electrical code, or consult a licensed electrician for guidance.

For 12/2 NM-B with copper conductors, the most common breaker pairing in residential settings is 20 amps. It’s also frequently used on 15-amp circuits when the circuit is designed for 15A. The key is to size the breaker to the lowest-rated component on the circuit and follow code.

• Common options: 15A or 20A single-pole breakers for 120V circuits.
• Do not oversize: Avoid breakers above the permitted rating for the cable (e.g., 25A or 30A).
• Verify details: Check the item’s spec sheet for conductor material and temperature rating, and confirm local code requirements.

When in doubt, a licensed electrician can review your specific setup.

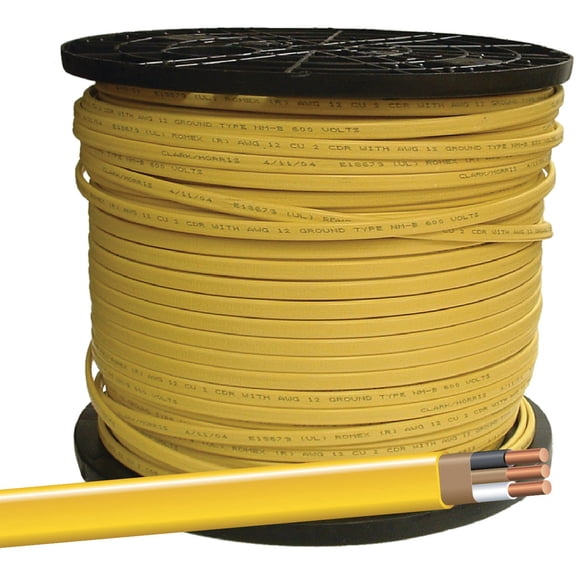

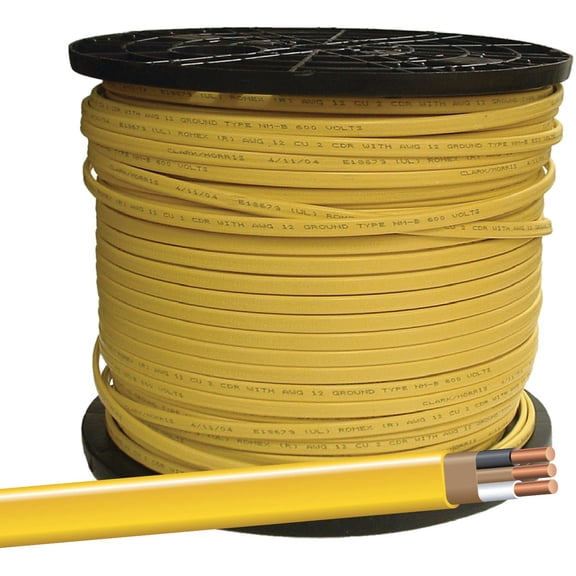

Most 12/2 NM-B cable offered in this category uses copper conductors, along with a bare equipment grounding conductor. Product listings often indicate this with terms like “CU” or “copper” in the specifications. Many 12-gauge NM-B cables also feature a yellow outer jacket, which helps identify the gauge in the field.

• Conductors: Two insulated copper conductors (typically black and white) plus a bare ground.
• Jacket: Nonmetallic sheath for indoor use (see product listing for details).
• Tip: Check the product details on the item page to confirm conductor material before purchasing.

If you require a different conductor type, review the item’s labeled material and intended use.

12/2 NM-B is commonly used for dry, indoor residential runs—such as inside walls, ceilings, or other protected spaces—when installed per code. Many listings here are described for residential indoor applications. Location approvals can vary by product and local code.

• Suitable: Dry, protected indoor areas as specified by the item’s listing.
• Not typically for: Wet locations, outdoors, or direct burial—unless the product explicitly states it’s rated for those conditions.
• Always verify: Read the product’s specifications and follow your local electrical code.

For wet or outdoor runs, consider cable or conductors that are listed for wet locations and install them as required by code. When unsure, consult a licensed electrician.
