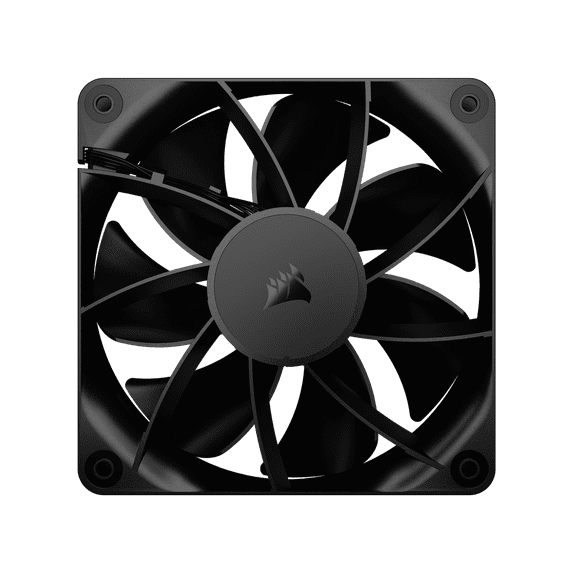

Corsair RS120 120mm PWM Fan 1 Pack
Key item features
- Simplified Connectivity: Features streamlined daisy-chaining for multiple fans, enabling control via a single 4-pin PWM connector, simplifying direct-to-motherboard connections.
- Precise Performance: Delivers precise PWM speeds up to 2,100 RPM, generating a maximum airflow of 72.8 CFM and a high static pressure of 4.15 mm-H2O for effective cooling.
- Focused Airflow: Utilizes Corsair Air Guide Technology with anti-vortex vanes and an optimized blade shape within a purpose-built housing to direct concentrated airflow at your components.
- Quiet Acoustics: Incorporates an improved Magnetic Dome Bearing to minimize friction and mechanical noise for enhanced longevity, with noise levels up to 36 dB(A).
- Silent Operation: Supports Zero RPM mode, allowing the fan to stop spinning completely at low loads to eliminate fan noise, providing silent performance when not under heavy demand.
- Versatile Application: This 120mm fan, measuring 4.72" in diameter and width, is designed for versatile use in PC cases, on radiators, or for direct motherboard mounting.
Specs
Brand, Corsair
Installed fan sizes, 119.89 mm
Air flow, 72.8 CFM
Fan speed, 2100 rpm
Size, One Size
About this item
Product details
| RS120 | HIGH-PERFORMANCE DAISY-CHAIN FANS | DIRECT-TO-MOTHERBOARD CONNECTION Skip the fan hubs and excessive cables - daisy-chain your RS Series fans in sequence and control them all through just a single 4-pin PWM connector on your motherboard. AIRFLOW AND STATIC PRESSURE A better fan relies on several key features, each improving how it handles air pressure and airflow as a radiator or case fan. RS fans were engineered to excel at both. BLADE SHAPE Optimized angle of attack, airfoil shape, and edge curvature ensure maximum airflow efficiency. FAN HOUSING The fan housing was designed to support the largest possible blade radius within its size limit. CORSAIR AIRGUIDE Stator vanes are angled to focus the exhaust airflow cone and improve the coverage of radiator fins and heat dissipation. EVERY SOURCE OF NOISE ADDRESSED | MAGNETIC DOME BEARING This improved bearing minimizes friction and mechanical noise, achieving a balance between high airflow performance and low acoustic footprint. On top of that, the reduced friction means greater longevity for your fan. STRENGTH IN NUMBERS | PROVEN COOLING PERFORMANCE RS fans have undergone months of extensive testing to guarantee exceptional performance at the full range of PWM fan speeds set with their direct-to-motherboard connection. Read more about how radiator fan performance is actually measured, what the specifications mean in practice and what separates good fans from great fans. ZERO RPM MODE PWM control lets you precisely set fan speeds so your fans only spin as fast as they need to, resulting in less fan noise overall, while support for Zero RPM means they can stop spinning completely at low loads to eliminate fan noise. |
| Number of Fans: | 1 |
| Fan Bearing Type: | Magnetic Dome Bearing |
| Fan Speed (Min): | 420 rpm |
| Fan Speed (Max): | 2100 rpm |
| Minimum Airflow: | 13.30 CFM |
| Maximum Airflow: | 72.80 CFM |
| Noise Levels (A-Weighted): | 36 dB(A) |
| Maximum Air Pressure: | 4.15mmH2O |
| Pulse-width Modulation (PWM) Support: | Yes |
| Connectors: | 4-pin PWM |
| Rated Current: | 400 mA |
| Color Family: | Black |
| Product Color: | Black |
| Maximum Fan Diameter: | 4.72" |
| Fan Height: | 4.72" |
| Fan Width: | 4.72" |
| Fan Depth: | 0.98" |
| Package Contents: |
|
| Features: | Dissipates the Heat |
| Application/Usage: | Motherboard |
| Application/Usage: | Case |
| Application/Usage: | Radiator |
| Limited Warranty: | 5 Year |
- Streamlined Fan Connections: Daisy-chain multiple fans together and control them all through just a single 4-pin PWM connector
- Precise PWM Speeds: Set your fan speeds up to 2, 100 RPM while providing up to 72.8 CFM airflow to your system
- Corsair Air Guide Technology: Anti-vortex vanes direct airflow at your hottest components for concentrated cooling, pushing air in the direction you need when mounted to a radiator or heatsink
- High Static Pressure: RS fans work well as radiator fans with a static pressure of 4.15 mm-H2 O to push through obstructions
- Quiet Operation with Magnetic Dome Bearing: Corsair Magnetic Dome bearing minimizes noise and reduces friction for greater longevity
- Quiet Operation with Magnetic Dome Bearing: Corsair Magnetic Dome bearing is a refinement of the renowned magnetic levitation bearing, minimizing noise and reducing friction for greater longevity
- Zero RPM Mode: Supports Zero RPM PWM signals to completely eliminate fan noise at low loads
