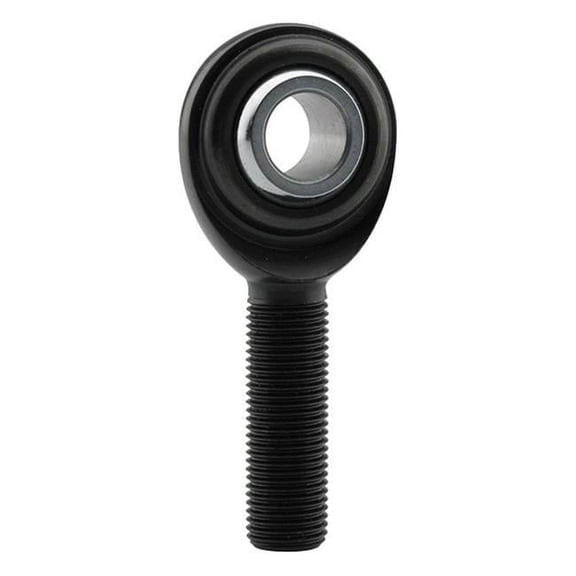

FK Rod Ends CMX8T 0.5 x 0.5-20 in. Right Hand Heat Treated Alloy Steel Rod End

FK bearings is a world-class manufacturer of rod ends, spherical bearings, custom-engineered bearings and other related products. Our products are applied in construction equipment, mining equipment, material handling, transportation and off-highway equipment, automation and robotics, machine tools, agricultural equipment, military vehicles, performance racing, and many others. Our continuous dedication has allowed us to reach a leading position in motion control products.

• 2-Piece metal to metal rod end
• Ball is made of 52100 steel, heat treated and hard chrome plated
• Body is alloy steel, heat treated, black oxide treated

• Series: CMX
• Thread Size: 1/2-20"
• Thread Length: 1.5"
• Bore Diameter: 0.5"
• Type: Male
• Thread Type: Right Hand
• Rod End Head Diameter: 1.312"
• Rod End Head Width: 0.453"
• Rod End Centerline Length: 2.438"
• Rod End Ball Width: 0.625"
• Rod End Misalign Angle: 20 deg
• Ball Diameter: 0.937"
• Ult. Static Radial Load: 17 lbs
• Material: Alloy Steel Heat
• Rod End Style: Metal to metal
• Heat-Treated: Yes
• Material Ball: 52100 Steel Rc 56 Min. Hard Chrome Plated
