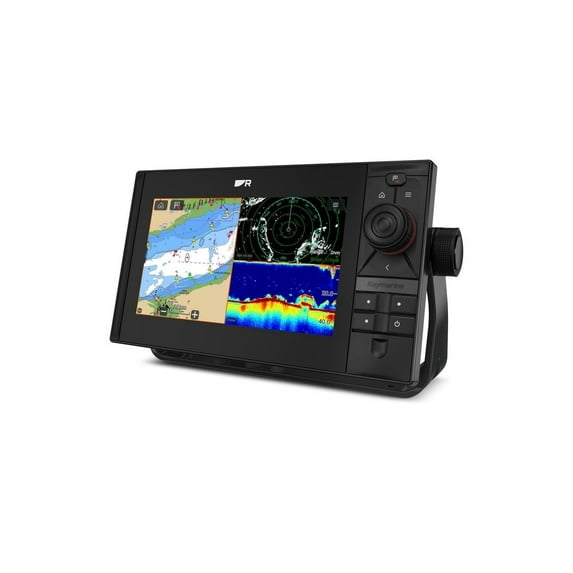

Raymarine Axiom2 Pro 9 RVM No Transducer Lighthouse North America Chart E70654-00-102

Raymarine Axiom2 Pro 9RVM HybridTouch chartplotters with RealVision MAX and 1kW CHIRP sonar and Lighthouse North American ChartModel: E70654-00-102Axiom 2 Pro combines chartplotter, fish finder, radar, autopilot, and video into a powerful all-in-one fishing system. Plan your next offshore adventure and get underway confidently with Axiom 2 Pro’s HybridTouch™ — a simple touchscreen and keypad experience made possible by the intuitive LightHouse operating system. Designed for discovering the deep, Axiom 2 Pro RVM chartplotters feature an integrated multi-channel fish finder with RealVision MAX CHIRP sonar technology.Get underway quickly with Axiom 2 Pro’s powerful 6-core processor. GPS, fish finder, radar, and video are integrated seamlessly and faster with the super intuitive LightHouse operating system.Axiom 2 Pro's HydroTough™ nano-coating technology repels water for reliable touchscreen control, enhanced colors, and excellent sunlight visibility.Smart backlighting and an ambient light sensor automatically adjust display brightness for day and evening lighting conditions.Plan and plot your course with HybridTouch™ control and take command with reliable keypad control when seas are rough.Customize your Axiom 2 Pro with interchangeable keypads. Choose a dedicated Evolution autopilot keypad or user-programable soft keys.RealVision MAX ups your fish-finding game with increased range, better resolution, and sharper fish targets.Axiom 2 Pro models with RealVision MAX feature built-in CHIRP DownVision, SideVision, RealVision 3D, and 600-watt traditional CHIRP fish finder for coastal fishing, plus a 1kW dual channel CHIRP fish finder for deep water.SpecificationsPHYSICALDimensions (Trunnion mounted)Height: 186.2 mm (7.33 in), Width: 329.5 mm (12.97 in), Depth (including cables): 234.9 mm (9.25 in)Dimensions (Surface/Flush mounted)Height: 173.79 mm (6.84 in), Width: 299.32 mm (11.78 in), Depth (including cables): 234.9 mm (9.25 in)CONNECTIONSEthernet connection2 RayNet (10/100/1,000 Mbits/s) portsNMEA 2000 connectionDeviceNet connectorWi-FiMultiband - 2.4GHz, and 5Ghz 802.11b/g/nBluetoothv4.0Accessory connectionUSB Micro BInternal storage64GB Solid StateExternal storage2 front mounted MicroSDXC card slotsDigital Video and AudioHDMI Out Micro connector type DAnalog video connectionsBNC Analog video input (on power cable)Analog audio connectionsRCA connectors via power cableExternal GPS anternnaTNC connectorPOWERPower consumption @ 12 V dc33.12 WPower consumption @ 24 V dc30.96 WOperating voltage range8 V dc to 32 V dcNominal supply voltage12 V dc / 24 V dcOff current @ 12 V dc11 mA (0.13 W)Off current @ 24 V dc18 mA (0.43 W)LEN (NMEA 2000 Load Equivalency Number)1Current5 AFuse rating15 AENVIRONMENTALOperating temperature-25°C to +55°C (-13°F to 131°F)Storage temperature-30°C to +70°C (-22°F to 158°F)Relative humidityUp to 93% @ 40°C (104°F)Waterproof ratingIPx6, IPx7LCDSize (diagonal)9.0"Resolution1280 x 720 HDViewing angleTop 88° / Bottom 88° / Left 88° / Right 88°TypeIPS (In-Plane Switching)Color depth24-bitIllumination1300 nits / 1300 cd/m2Number of simultaneous touches1 to 16GPS (GNSS)Position AccuracyWithout SBAS: ≤ 15 metres 95% of the time, With SBAS: ≤ 5 metres 95% of the timeGeodetic DatumWGS-84 (alternatives can be selected on the MFD)Satellite Differential Type (SBAS)WAAS (United States), EGNOS (Europe), MSAS (Japan), GAGAN (India), QZSS (Japan)ChannelsTrack up to 28 satellites simultaneouslyAntennaInternal - Ceramic chip mounted near top of unitGNSS compatibilityGPS, Galileo, GLONASS, BeidouAlmanac UpdateAutomaticRefresh rate10 Hz (10 times per second)SONARPower outputRealVision MAX high CHIRP sonar channel: 600 Watts RMSTraditional dual channel CHIRP channel: 1kW RMSSonar channelsRealVision MAX Port: High CHIRP (200kHz), DownVision (350kHz), SideVision (350kHz) and RealVision 3D (350kHz)1kW CHIRP Port: 42 - 250kHz (Transducer dependent)RealVision MAX Depth range25-pin RealVision type connector: High CHIRP conical sonar:
