A SPI flash programmer is a tool that lets you read, write, and erase data on SPI flash memory chips. These chips are commonly found in computers, routers, and other electronics.

• It connects to your device via USB.
• Lets you update firmware or repair corrupted BIOS chips.
• Supports different chip types, like EEPROM and BIOS flash chips.

Using a programmer can help restore devices or upgrade their software, but always follow safety instructions and check compatibility before use.

To connect a SPI programmer to your computer, follow these general steps:

1. Plug the programmer into a USB port.
2. Install any required drivers or software (usually provided by the manufacturer).
3. Attach the chip or adapter to the programmer, making sure the pins are aligned.
4. Open the programming software and select your chip type.

Tip: Always check your device’s manual for specific instructions and avoid forcing connections to prevent damage.

Yes, many SPI programmers are designed for BIOS chip repair and flashing.

• They can help recover devices with corrupted BIOS by rewriting the chip.
• Some models support offline copying and burning for added convenience.
• Adapters like SOIC8 clips make it easier to connect to BIOS chips on motherboards.

Before starting, make sure your programmer supports the chip model you’re working with and follow all safety guidelines to avoid hardware issues.

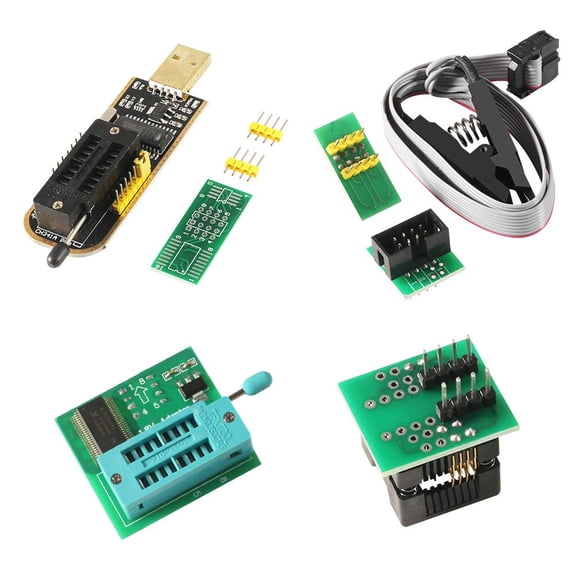

SPI programmers often use adapters to connect with different chip types and sizes. Common adapters include:

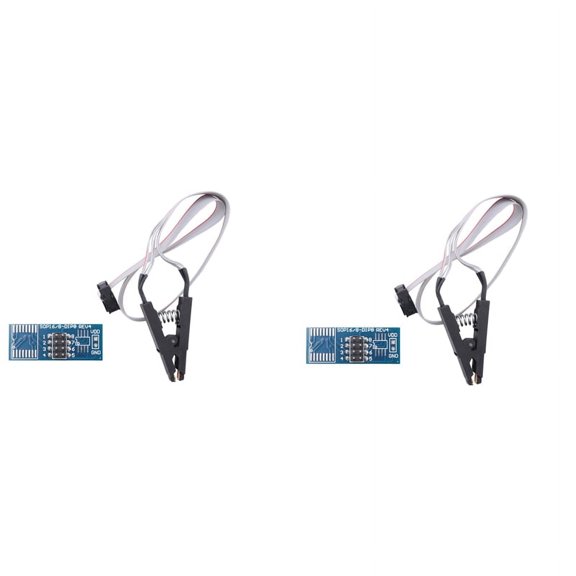

• SOIC8/SOP8 test clips for in-circuit programming.
• DIP8 converters for chips with DIP packaging.

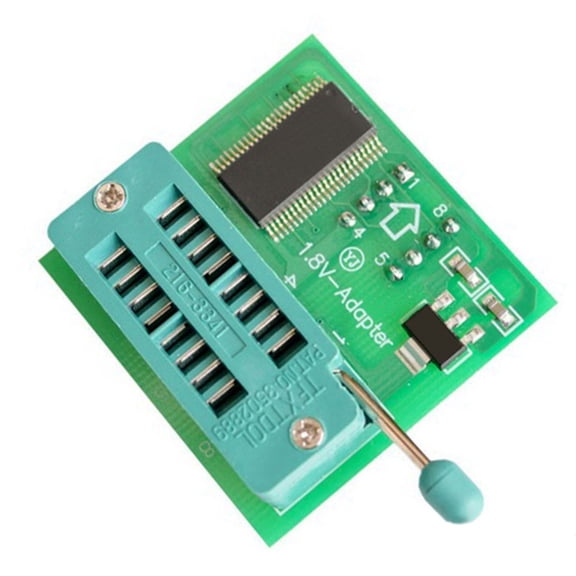

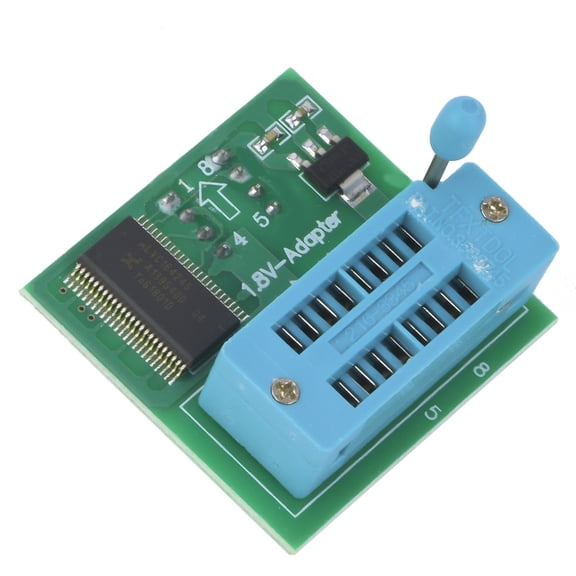

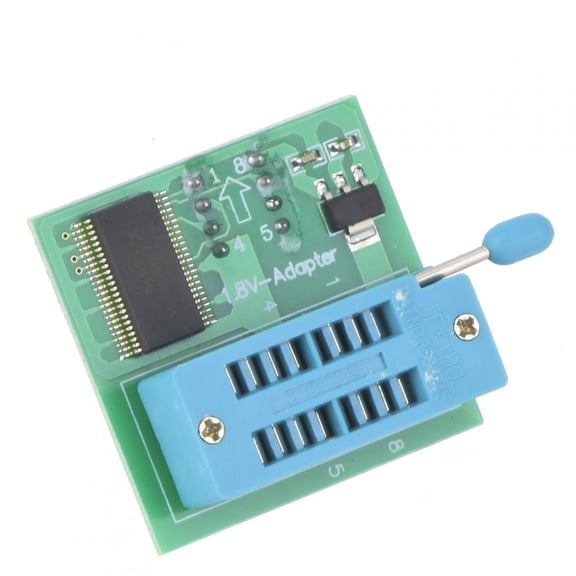

• 1.8V adapters for low-voltage chips.

Choosing the right adapter depends on your chip’s form factor and voltage requirements. Always check your programmer’s compatibility list before purchasing additional adapters.

SPI programmers can be beginner-friendly, especially models with USB connections and clear instructions.

• Many come with software that guides you through the process.
• Starter kits often include adapters for common chip types.
• Look for products with online support or manuals.

It’s a good idea to start with simple tasks, like reading or backing up chips, and gradually move to more advanced programming as you gain confidence.
