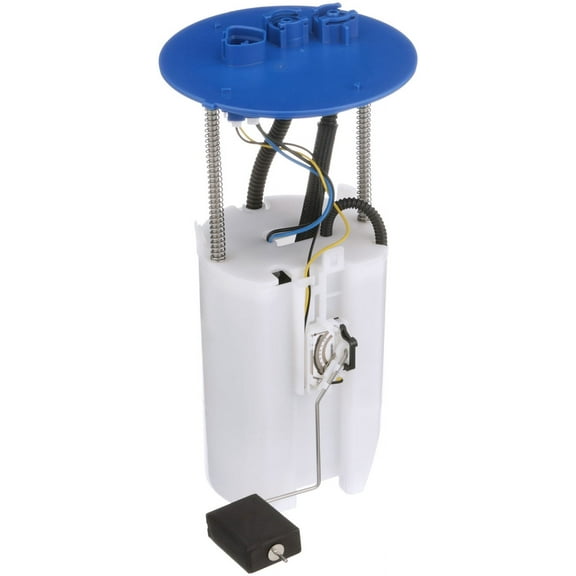

Fuel Pump Module Assembly

• Lower amperage draws less load on vehicle's electrical system
• Delphi is a global OE manufacturer and all fuel pumps are built to Delphi's OE standards
• Empty float height and float retention matches OE specifications and guarantees correct gas gauge reading
• Part is validated, tested and matched to the right vehicle application
• Always be sure to check and clean fuel tank to avoid unnecessary returns
• Lower failure rates due to its innovative design and durability
• Average Current Draw : 14 A
• Average Flow Rating : 19 gph
• Gasket Or Seal Included : Yes
• In Tank Or External : In Tank
• Inlet Type : Strainer
• Internal Or External Strainer : Internal
• Lock Ring Included : No
• Maximum Pressure : 78.0 PSI
• Outlet Outside Diameter : 0.375 in
• Outlet Type : Quick Connect
• Pump Type : Electric
• Regulator Included : No
• Resistance Ohms Empty : 180.0 Ohms
• Resistance Ohms Full : 10.0 Ohms
• Strainer Included : Yes
• Terminal Gender : Male
• Terminal Quantity : 4
• Terminal Type : Pin
• Voltage : 12.0 VDC

Additional Features

• Volts:12.0 2H

Fits Select:
2007-2008 FORD ESCAPE
2007-2008 MERCURY MARINER
and more - add your vehicle to our fit widget to check
