Description:

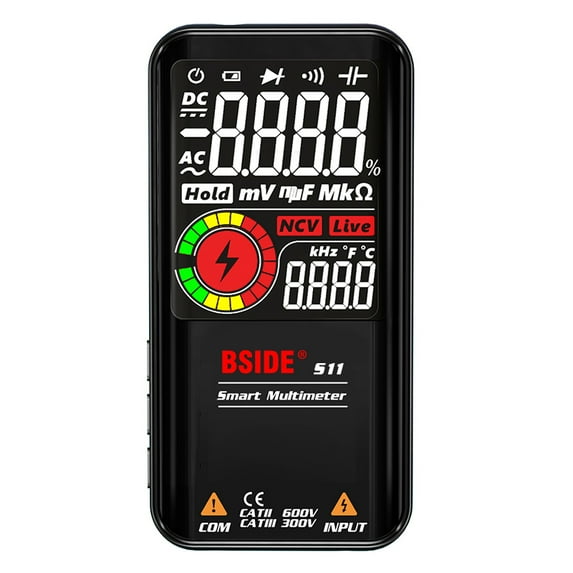

Name: Multimeter Instrument
Display: 9999 counts
Screen: 3.5 inch
DC Voltage: 0.8V-620V ±(0.5%+3); Resolution: 0.001V
AC Voltage: 2.2V-620V ±(0.5%+5); Resolution: 0.001V
Resistance: 1Ω-999.9Ω ±(2.0%+5); 1kΩ-60MΩ ±(1.0%+3); Resolution: 0.11Ω
Capacitance: 1nF-999.9nF ±(6.0%+5); 1uF-99.99mF ±(3.0%+3); Resolution: 0.001nF
Frequency:
1Hz-1000Hz ±(1.0%+5) (ACV:2V-10V); Resolution: 0.001Hz
1KHz-60KHz ±(1.0%+5) (ACV:10V-620V);
Resolution: 0.001Hz
Duty Cycle: 0.1%-99.9% ±(3.0%+5) (ACV:2V-620V); Resolution: 0.1%
Diode: Auto identify diode if less than 3.0V
V-Alert(non-contact voltage detection): beep alarm sounds
Live Check: alarm beep sounds, LCD screen display stripe
Continuity: If the resistance is less than 30Ω, the beeper sounds
Power: 1*Li-ion 800mAh/1.5V (AAA) x 2
Package Size: 147*85*42mm
Package Weight: 180g
Features:
1.3 Results Display: The high-resolution large screen can display 3 test results on the screen, such as voltage, frequency and analog bars.
2.Automatic identification: Automatic identification can greatly improve test efficiency. BSIDE intelligent technology enables the multimeter to automatically identify the parameters of the test and select the required range.
3.Protective cover: Durable protective cover to prevent vibration, friction and collision. This case is detachable and easy to replace.
4.Upgraded flashlight: The upgraded flashlight can change the dark environment.
Packing list:
1 * Multimeter
1 * Test Leads
1 * English user Manual
1 * Packing Box
1 * USB charging cable (S11)
1 * EVA portable cloth bag. (S11)
1 * Protective shell. (S11)
Note：
1.Please allow 0-1cm error due to manual measurement. Please make sure you do not mind before you bid.
2.Due to the difference between different monitors, the picture may not reflect the actual color of the item.
3.S10: The batteries are not included in the package due to Aviation Security Check
