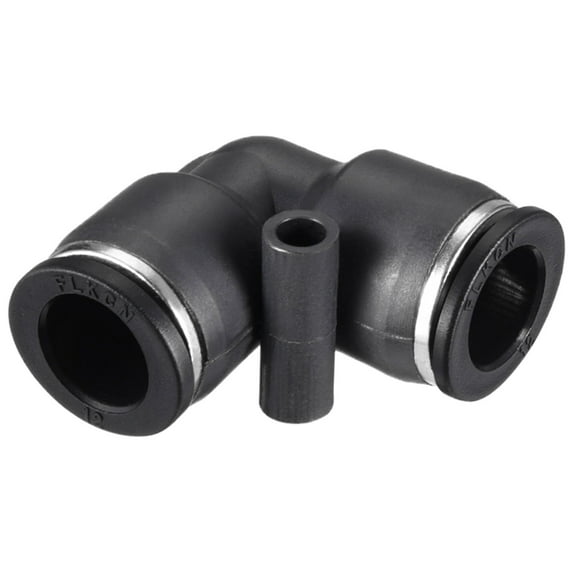

Plastic Elbow Push to Connect Tube Fitting 12mm Tube OD Pneumatic Air Push Fit Lock Fitting Black 2pcs

Product Features:

Product Name : Connect Fitting

Model : PV12

Color : Black

Material : Plastic

Net Weight : 32g

Type: 90 Deg Swivel Elbow Connector

Two Tube Size (OD) : 12mm = 0.47"

Operating Pressure : 0-1MPa

Operating temperature：-10 - 60 Degree Celsius

Dimension : 38mm x 38mm x 20mm / 1.5-inch x 1.5-inch x 0.79-inch(L x W x H )

Package Content:

2pcs x Fitting

Description:

1.Quick and simple installation,designed for using to connect with polyethylene, nylon and PU tubing.

2.A good release cap can withstand greater and stronger pressure without tripping.

3.Have flexibility, abrasion resistance, light weight, and resistance to crushing and cracking,Compressive and corrosion resistant, good sealing performance and long service life.

4.Easy to install, insert the plastic tube, the cap can be rotated freely, but its rotation is only used when the angle is wrong when the joint is installed.

5.The small tube use for fixed.

Mounted:

1.Cut the pipe flat, no slope

2.When inserting the pipe into the joint, it must be inserted into the end, otherwise there may be a leak.

3.After plugging in, try to pull the tube, if you can't pull it out, it means it has been connected.
