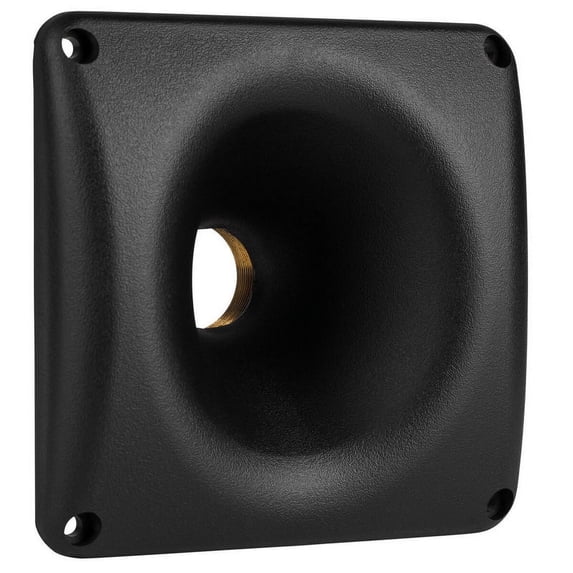

Dayton Audio H07E 6" x 6" Elliptical Waveguide 1-3/8"- 18 TPI

Manufacturer Part Number: H07E

The Dayton Audio H07E high frequency waveguide is precision molded from high-performance plastic, and has an industry-standard 1-3/8" x 18 TPI throat for mounting screw-on style drivers.

Key Features:

• Uncolored, natural sound
• Precision molded from high-performance plastic
• Standard 1-3/8" x 18 TPI mounting for screw-on drivers
• Nominal dispersion pattern: 80° H x 50° V
• Recommended minimum crossover frequency of 2,200 Hz

Dayton Audio H07E 6" x 6" Elliptical Waveguide 1-3/8"- 18 TPI

A waveguide couples the high frequency driver to the listening space without the harmful distortion artifacts of marginally designed and implemented horn loading. It achieves this through the use of non-traditional geometries and lower expansion rates. The resultant sound has less distortion, with an "open" characteristic not often associated with typical "pinched" or "honky" compression driver/horn combinations. Dayton Audio waveguides reveal all of the articulate, accurate sound reproduction that your HF drivers are capable of delivering, whether the application is live sound, critical studio monitoring, or demanding home audio playback. The Dayton Audio H07E high frequency waveguide is precision molded from high-performance plastic, and has an industry-standard 1-3/8" x 18 TPI throat for mounting screw-on style drivers. Its unique elliptical flare exhibits a nominal 80° horizontal x 50° vertical coverage pattern, and will provide useful acoustical loading down to 2,200 Hz. Dimensions: 5-7/8" H x 5-7/8" W x 3-3/4" D.

Product Details

BrandDayton AudioModelH07EPart Number270-316UPC844632009259Unit of MeasureEachWeight0.6801

Product Specifications

ConstructionABSEntry / Throat Diameter1"Mounting Type1-3/8"-18 TPI
