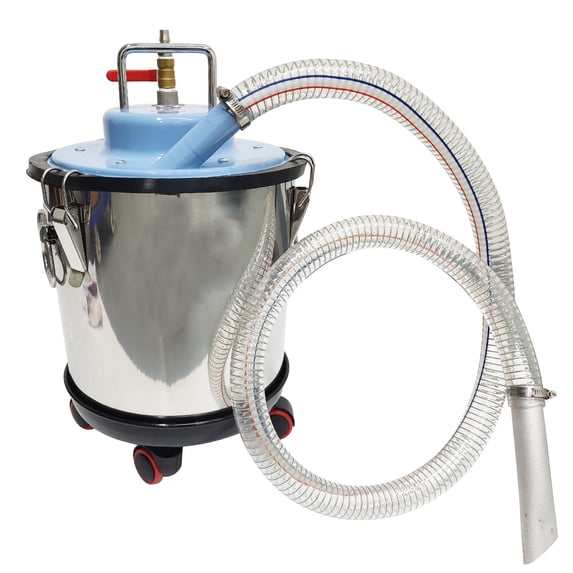

Industrial Pneumatic Vacuum Cleaner Dust Suction Machine Stainless Steel Cleaner 20L Capacity

Introduction:
Pneumatic vacuum cleaner is a type of vacuum cleaner powered by compressed air, mainly used in the field of industrial cleaning. It does not require electric devices such as power sources and motors, so that it is more durable, and the service life of the machine is longer than that of an electric vacuum cleaner. Pneumatic vacuum cleaners have a simple structure and lower operating and maintenance costs, making them particularly suitable for flammable and explosive areas or situations that require long-term use.

Parameters:
Capacity: 20L
Main material: 201 stainless steel
Hose: 32mm*2mm*1.5m
Air compressor horsepower: 4-6KG/CM2
5HP (minimum)
Liquid viscosity (Max.) : 3000CP
Air pressure: 0.6-0.8 Mpa
Displacement: 14CFM or 400L/min
Negative pressure capacity: ≥-0.27 Mpa
Power: 3700W

Note: Please bring your own air compressor.
Note:
1. The used air pressure is 0.6-0.8Mpa, and the air source flow separation should not be too much, otherwise the suction is not enough.
2. If the air pressure exceeds 0.8Mpa, the negative pressure in the barrel will crush the barrel, so the barrel will not expand or explode even when the air pressure is too high.

Packing list:
Body *1
Hose *1
Vacuum head *1
Dust bag *1
Removable plate *1

Item Number:
220569--Pneumatic vacuum industrial vacuum cleaner
