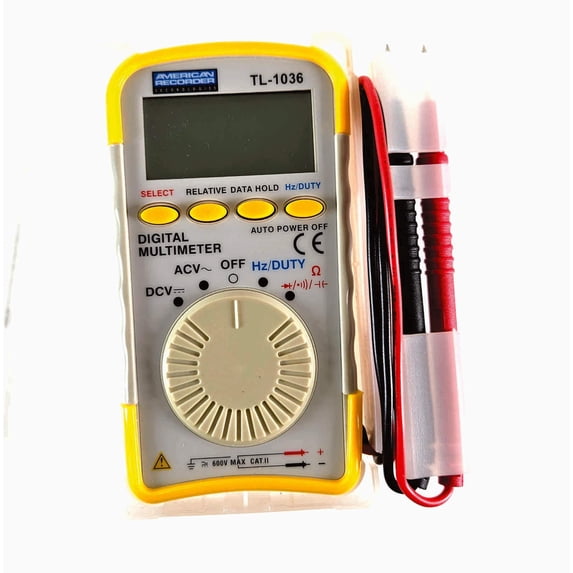

Pocket Digital Multimeter

The American Recorder Pocket Digital Multimeter offers precise measurements in a compact design ideal for both bench work and field tasks. It accurately measures DC and AC voltage up to 500V, AC/DC current up to 400mA, resistance, capacitance, and ground testing. Features like data hold, audible continuity, diode testing, and overload protection enhance usability and safety. The meter includes test leads, a protective case, and a CR2032 battery for immediate operation. Its slim 4.75 x 2.65 x 0.75-inch profile ensures convenient portability without sacrificing professional performance.

Sleek and slim pocket digital multimeter with big capabilities in a small footprint!  Great for work on the bench as well as for travel and remote work

• Measures Resistance & Ground Test
• Data hold
• Audible continuity
• Diode test
• Measures DC/AC Voltage (500v), ACDC current (400mA)
• Overload protection
• Includes test leads, case, battery(CR2032)  and instructions
• Measures 4.75 x 2.65 x 0.75 (inches)

SPECIFICATIONS:

• VOLTAGE DC(V) RANGE: 400m, 4, 40, 400, 500
• VOLTAGE AC(V) RANGE: 400M, 4, 40, 400, 500
• RESISTANCE(Ω) RANGE: 400, 4K, 40K, 400K, 4M, 40M
• CAPACITANCE RANGE: 40nF, 400nF, 4µf, 40µf, 100µf
• FREQUENCY RANGE: 5, 50, 500, 5k,5M, 10M
• DUTY CYCLE: 0.1~99%
