Dynamometer PCE-DFG N 5
(No ratings yet)
Key item features
- Measuring range 0 ... 5 N, 0 ... 1.12 lbs
- Accuracy: ± 0.1% of the measuring range
- Resolution: 0.001 N
- Measurement units: N, kg, lb, KPa
- Display: 2.8" TFT graphic display
- Alarm Modes: Inside, Outside, Crack, Shutdown
- Sampling rate: 6 ... 1600 Hz
- Storage: 100 measurements
- Power supply: NiMh battery 6V / 1600-mAh
- Battery life: About 10 hours
- Charging adapter: 12V / 1A
- Outputs Interface: USB
- Switching output: 12V / 50-mA
- Protection class: IP 54
- Pull and pressure force measurement
- 1600 Hz sampling rate
- Error limit 0.1% of the measuring range
- PEAK function (MIN / MAX)
- Limit value function
- Different measuring units
- Automatic or manual storage
- Graphical analysis
- Automatic orientation display
- Time date
- Control and evaluation software
- Automatic shutdown adjustable
- Battery status indicator
- Network operation possible
- Save 100 readings
Specs
- Max load5 N
- DisplayTFT LCD
- BrandPCE Instruments
- Power typeBattery
- Dimensions7.90 x 3.80 x 1.70 Inches
- Weight1.2 lb
Current price is USD$772.00
Price when purchased online
- Free shipping
Free 30-day returns
How do you want your item?
Columbus, 43215
Arrives by Fri, Apr 3
|
Sold and shipped by PCE Instruments
Free 30-day returns
Similar items you might like
Based on what customers bought
BELOWSYALER Scoliometer Meter Device 0-30° Measurement for Measuring Spinal Alignments，Measure Spine $14.48
$1448current price $14.48BELOWSYALER Scoliometer Meter Device 0-30° Measurement for Measuring Spinal Alignments，Measure Spine
Force Gage PCE-HFG 10K $838.00
$83800current price $838.00Force Gage PCE-HFG 10K
Belt Tension Meter PCE-BTM 2000A $768.00
$76800current price $768.00Belt Tension Meter PCE-BTM 2000A
Force Gauge PCE-HFG 1K $838.00
$83800current price $838.00Force Gauge PCE-HFG 1K
Jamar Pinch Gauge, Hand & Finger Dynamometer, 0-45 lbs, 1 Pack $247.88
$24788current price $247.88Jamar Pinch Gauge, Hand & Finger Dynamometer, 0-45 lbs, 1 Pack
Shimpo Digital Force Gauge,50 lb.,4 Digit LCD FGE-50XY $947.00
$94700current price $947.00Shimpo Digital Force Gauge,50 lb.,4 Digit LCD FGE-50XY
Tension Dynamometer PCE-DDM 3 $1,848.00
$1,84800current price $1,848.00Tension Dynamometer PCE-DDM 3
Digital Force Gauge, Push Pull, 0-5N/0-10N/0-500N $191.27
3 optionsAvailable in additional 3 options$19127current price $191.27Digital Force Gauge, Push Pull, 0-5N/0-10N/0-500N
Force Gauge PCE-FM 500N $515.00
$51500current price $515.00Force Gauge PCE-FM 500N
Dynamometer PCE-FM 200 $475.00
$47500current price $475.00Dynamometer PCE-FM 200
Dynamometer PCE-FM 50N $515.00
$51500current price $515.00Dynamometer PCE-FM 50N

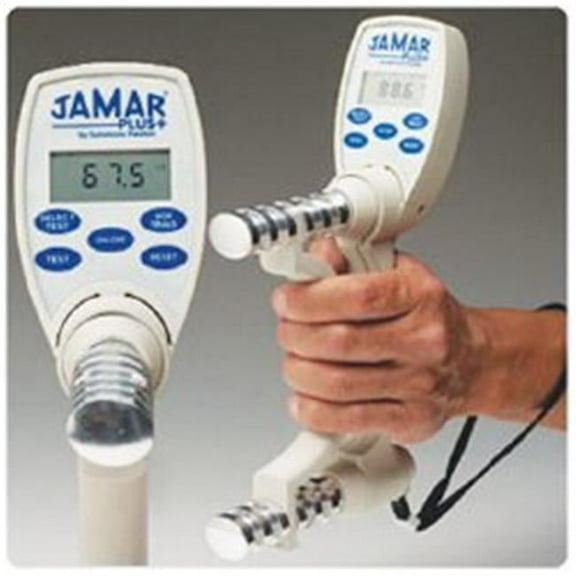

26047701 Jamar Hand Dynamometer $766.73
$76673current price $766.7326047701 Jamar Hand Dynamometer

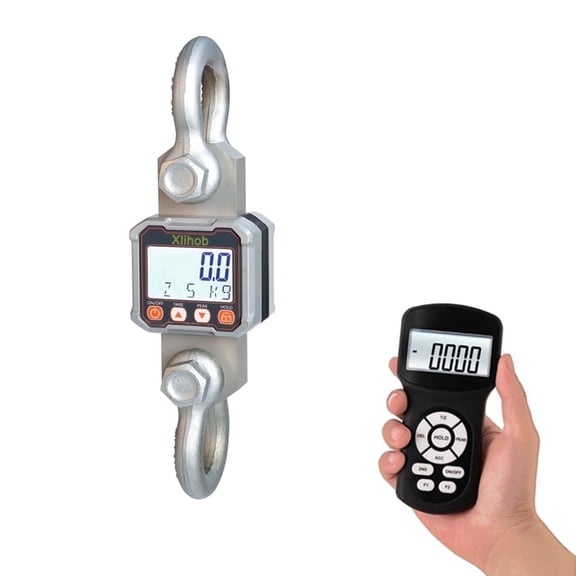

Xlihob 22000lbs/10T Tension Dynamometer with Wireless Remote and Shackles, Pre-calibrated, Peak Hold $633.00
$63300current price $633.00Xlihob 22000lbs/10T Tension Dynamometer with Wireless Remote and Shackles, Pre-calibrated, Peak Hold
EFG500 Portable Digital Force Gauge/Data Logger 2000 Hz Sampling Rate & ± 0.2% F.S. 500/0.05 N Dynamometer $559.41
$55941current price $559.41EFG500 Portable Digital Force Gauge/Data Logger 2000 Hz Sampling Rate & ± 0.2% F.S. 500/0.05 N Dynamometer
Scoliometer, Portable Device, 1 Pack $96.19
$9619current price $96.19Scoliometer, Portable Device, 1 Pack

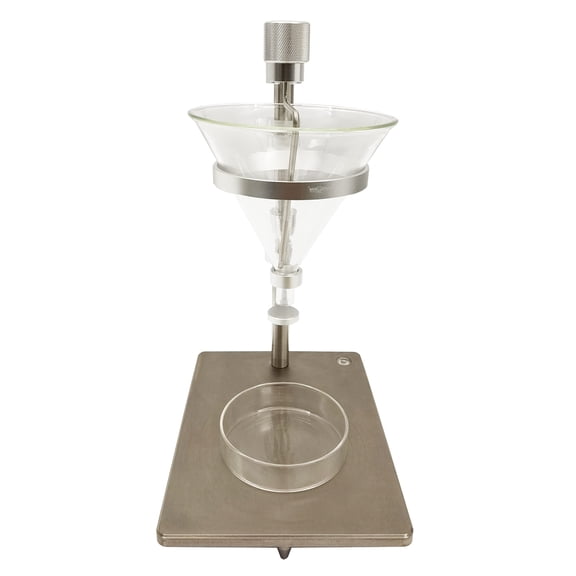

21 out of 5 Stars. 2 reviewsDust Repose Angle Measuring Device Angle of Repose Tester $499.00
$49900current price $499.00Dust Repose Angle Measuring Device Angle of Repose Tester
SEG‑10‑2 Dial Tensiometer Portable Double Pointer Tension Gauge Force Meter Tools 10g $32.89
$3289current price $32.89SEG‑10‑2 Dial Tensiometer Portable Double Pointer Tension Gauge Force Meter Tools 10g
Clearance Scoliometer Meter Device 0-30° Measurement for Measuring Spinals Alignments，Measure Spine $13.88 Was $15.59
Clearance
$1388current price $13.88, Was $15.59$15.59Scoliometer Meter Device 0-30° Measurement for Measuring Spinals Alignments，Measure Spine
EH101 90kg/198Ib Digital LCD Dynamometer Hand Grip Power Measurement Strength Meter -------- ,Accurate & Efficient Force Measurement $66.63
$6663current price $66.63EH101 90kg/198Ib Digital LCD Dynamometer Hand Grip Power Measurement Strength Meter -------- ,Accurate & Efficient Force Measurement
500G Tensiometro Tensiometer Dial Tension Gauge ATG-500-1 $61.16
$6116current price $61.16500G Tensiometro Tensiometer Dial Tension Gauge ATG-500-1
About this item
Product details
A digital force gauge for tensile and compressive force measurements up to 5 N is available with the PCE-DFG N 5. The PCE-DFG N 5 is a digital force meter for precise measurements with a resolution of 0.001 N. The measured values are displayed on a large, illuminated, 180° rotatable display, a correct reading of the measured values is thus guaranteed at all times, with an outstanding accuracy of ± 0.1%. In addition to the internal storage option of 100 measured values, a USB interface is available for data transmission. With the software, the measured values can be saved on a computer for later evaluation. Due to its robust housing, a sensible menu navigation and the simple operation via 8 keys, the digital force meter PCE-DFG N 5 is characterized by a high degree of user-friendliness. The power supply of the dynamometer via batteries, which can be charged via a included charger and allow a continuous operation of the device of 10 hours. With these characteristics, the digital force gauge is suitable for quality control in the production area, for incoming and outgoing inspection as well as for the development of new components or for testing safety-relevant components.
- Measuring range 0 ... 5 N, 0 ... 1.12 lbs
- Accuracy: ± 0.1% of the measuring range
- Resolution: 0.001 N
- Measurement units: N, kg, lb, KPa
- Display: 2.8" TFT graphic display
- Alarm Modes: Inside, Outside, Crack, Shutdown
- Sampling rate: 6 ... 1600 Hz
- Storage: 100 measurements
- Power supply: NiMh battery 6V / 1600-mAh
- Battery life: About 10 hours
- Charging adapter: 12V / 1A
- Outputs Interface: USB
- Switching output: 12V / 50-mA
- Protection class: IP 54
- Pull and pressure force measurement
- 1600 Hz sampling rate
- Error limit 0.1% of the measuring range
- PEAK function (MIN / MAX)
- Limit value function
- Different measuring units
- Automatic or manual storage
- Graphical analysis
- Automatic orientation display
- Time date
- Control and evaluation software
- Automatic shutdown adjustable
- Battery status indicator
- Network operation possible
- Save 100 readings
