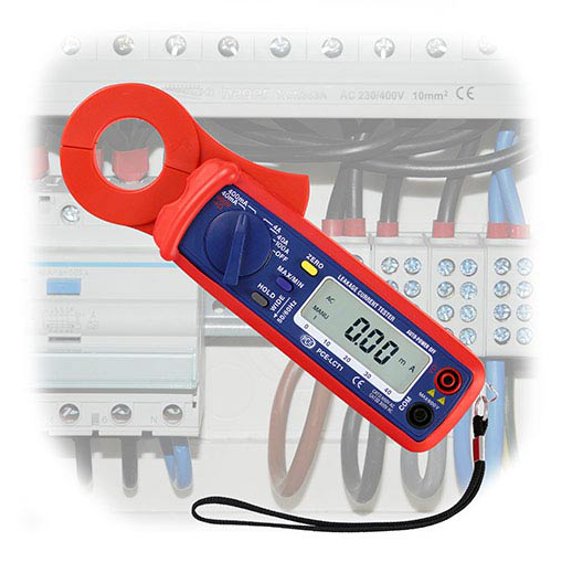

With the PCE-LCT 1 Digital multimeter it is possible to measure leakage currents up to a range of 100 A. PCE-LCT 1 Digital multimeter can measure leakage currents which appear when current flows through electrical conductors which are not designed for conduction current. The PCE-LCT 1 Digital multimeter can detect leakage currents and show them on the display. With the help of the PCE-LCT 1 Digital multimeter you can detect insulation failures in places where machines cannot be disconnected, however insulation must be checked, as for instance according to the VDE 701/702 standard. The PCE-LCT 1 Digital multimeter measures current flow, voltage up to 600V, resistance and continuity. The PCE-LCT 1 is the ideal instrument for electricians according to the VDE standard. The PCE-LCT 1 has a compact design which allows to be placed in any pocket. The rubber protection protects the instrument against falls, so it is the ideal instrument to be used in electrical inspections and in workshops.
Leakage current and current (AC A)
- Measurement ranges: 50 / 60 Hz, 40-mA, 400-mA, 4 A, 40 A, 80 A, 80 A - 100 A
- Resolution: 400 Hz ... 1 kHz, 10 µA, 100 µA, 1-mA, 10-mA, 10-mA, 100-mA
- Accuracy:
10 µA ± (1% + 0.5-mA) ± (4.5% + 0.5-mA)
100 µA ± (3% + 5-mA) ± (3% + 5-mA)
1-mA ± (4% + 0.1-mA) ± (4% + 0.1 A)
10-mA ± (4% + 1 A) ± (4% + 1 A)
10-mA ± (2.5% + 1 A) ± (3% + 1 A)
100-mA ± (5% + 1 A) ± (5% + 1 A)
Voltage (AC V)
- Measurement ranges: 50 / 60 Hz, 400 V
- Resolution: 400 Hz ... 1 kHz, 1V
- Accuracy:
± (1.5 % + 2 digits) ± (2 % + 4 digits)
Resistance
- Measurement ranges: 400 Ω
- Resolution Alarm: 0.1 Ω
- Accuracy: ± (1% + 2 digits) Measurement value: <38Ω
- Measures leakage current
- Measures current up to 100 A
- Measures voltage up to 600V
- Continuity test
- Measures resistance up to 400 Ω
- Digital bar graph
- High resolution
- Max./min. values are viewed on the display
- Rubber protector
- Test cables are included
