Product Features

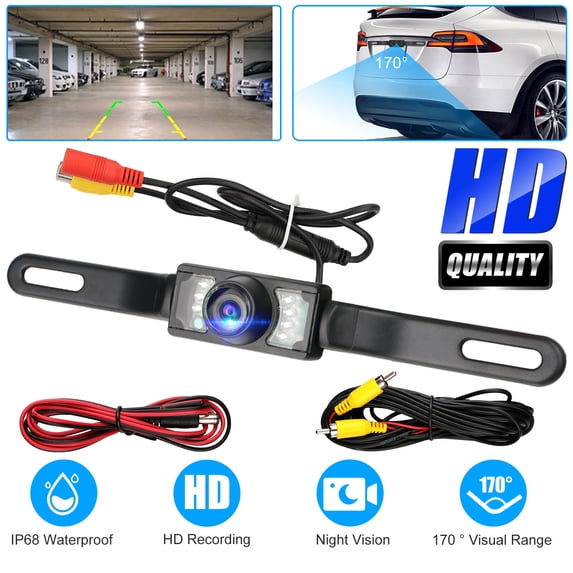

- Backup Reverse Camera: This camera works as a perfect solution for poor rear visibility and reversing your trailer or boat as well. The reverse cameras would be perfect for avoiding car crashes while driving in the dark.
- 7 LEDs Infrared Night Vision: The rear-view camera is equipped with 7 high definition IR LEDs, which can make you see clearly at night or in a dark underground parking garage. 640x480 capture resolutions and support NTSC TV system.
- Premium License Plate Frame: Stylish heavy-duty chrome plated frame, which is suitable for all vehicles that use a standard US license number plate holder.
- 170° Wide Viewing Angle: 170° visible wide range designed rear view camera is perfect for checking unseen blind spots in your vehicle’s mirrors when reversing your car.
Note
- Don't open the cover of the camera. It will no longer be waterproof if it's opened. And don't aim the camera at bright or strong light sources, it will make the camera ineffective in capturing video. Also, the red socket is connected to DC 12V, the yellow socket is for video output.
Product Specification
Image Device 1/3 inch color CMOS
TV System PAL/NTSC
Effective Pixels 640 x 596 Pixels
Lens Angle 170 ° / 135 °
Sensing Area 4.08 x 3.12mm
Imaging Device OV7950
Resolution 420TV lines
Electronic Shutter 1/60-1/20000 seconds
Waterproof Grade IP67
Minimum Illumination 0.1 Lux / F = 1.2 (0 Lux with IR on)
Gamma Factor 0.45
White Balance Auto
Scanning System 2/1 interlace
Output RCA CONNECTOR, 1.0VP-P, 75ohm
Current Consumption ≤150mA
Power Supply DC 12V
Working Temperature -20°C - 75°C, RH95%Max
Storage Temperature -40°C - 85°C, RH95% Max.
Video Cable Length 19 feet
Power Supply Cable Length 4 feet
Package Included
- 1 x Rear View Backup Camera
- 1 x Wire Harness
- 1 x Manual
