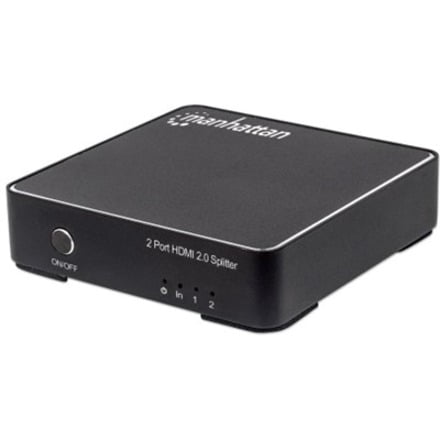

Manhattan 4K 2-Port HDMI Splitter, 1 In - 2 Out, HDCP 2.2, Black
Key item features
- Duplicates an Ultra-High-Definition (UHD) digital audio/video signal for up to two UHD HDMI displays
- 4K@60Hz resolution, full 3D video and Deep Color
- Supports video amplifier bandwidth up to 300 MHz, 3 Gbps per channel (10.2 Gbps total) for 4Kx2K displays
- Supports compressed DTS-HD Master Audio, uncompressed LPCM 8 channel (7.1 surround sound) audio and Dolby TrueHD as well as 32-channel audio
- Supports 48-bit Deep Color (12-bits per channel), xvYCC (x.vColor), Rec. 2020 color space and 21:9 aspect ratio
- Supports LPCM, DTS Digital, DTS-HD Master Audio, Dolby TrueHD audio, four audio streams and 32-channel audio
- HDCP 2.2 compliant
- AC powered with Plug and Play installation; no special setup or remote required
- Rugged metal housing for maximum durability; built-in wall-mounting holes
- Up to three splitters may be cascaded to support four 4K displays
- Gold-plated contacts for corrosion-free connections
- Works with PlayStation and Xbox game systems, Blu-ray players, set-top boxes, satellite receivers and more
- Three-year warranty
- HDCP 2.2
- DVI 1.0
- CTS 1.4a
- CE
- FCC
- RoHS2
Connections - One HDMI female (input)
- Two HDMI female (output)
- One 5 V / 1 A DC power female (input)
Signal Input/Output - Input video signal: 0.5 – 1.0 V p-p
- Input DDC signal: 5 V p-p (TTL)
- Maximum single-link range: 10.2 Gbps, 4096x2160 at 60 Hz resolution
- Output video: HDCP 2.2, DVI 1.0
Video Resolutions - VGA: 640x480, 800x600, 1024x768, 1920x1200
- DTV/HDTV: 480i/480p/576i/576p/720p/1080i/1080p/4K@60Hz
Physical - LED indicators: power and port connection
- Dimensions: 80 x 80 x 20 mm (3.2 x 3.2 x 0.8 in.)
- 5 V / 1 A power adapter: 1.2 m (3.9 ft.)
- Weight: 150 g (5.3 oz.)
- Housing: metal
- Two wall-mount holes
Operating Environment - Operation Temperature: 0 – 40°C (32 – 104°F)
- Storage Temperature: -20 – 60°C (-4 – 140°F)
- Humidity (noncondensing): 0 - 96%
Package Contents - 4K 2-Port HDMI Splitter
- 5 V / 1 A power adapter
- Quick Instruction Guide
Standards and Certifications
Specs
- Number of outputs2
- Electronic end connection 1HDMI
- Electronic end connection 2HDMI
- Connector genderFemale
- BrandManhattan
- Accessories5V / 1A Power Adapter, Quick Instruction Guide
Current price is USD$58.49
Price when purchased online
Out of stock
How do you want your item?
Out of stock
About this item
Product details
Easily distribute a single Ultra-High-Definition (UHD) signal to multiple displays.
The Manhattan 2-Port HDMI Splitter streams a 4K HDMI signal from a single UHD source to up to two UHD displays.
Flexible Solution for Many A/V Applications
Ideal for trade shows, classrooms, video conferencing, presentations and retail applications, the Manhattan 4K 2-Port HDMI Splitter features a built-in booster for added signal strength. It’s a great choice for splitting and distributing a synchronous signal to multiple 4K HDMI displays when source equipment is remotely stored in a secured room or cabinet. Cascade multiple units up to three levels to output HDMI video/audio to additional displays in widely distributed applications.
Quality Construction and Easy Installation
Full compliance with HDMI, HDCP 2.2 and DVI 1.0 ensures that the Manhattan 4K 2-Port HDMI Splitter can provide long service and reliable performance. Quickly connect HDMI cables (not included) and the 5 V / 1 A power adapter without software/hardware configuration or complicated settings to complete this affordable Ultra-High-Definition, 4K HDMI solution.
- Duplicates an Ultra-High-Definition (UHD) digital audio/video signal for up to two UHD HDMI displays
- 4K@60Hz resolution, full 3D video and Deep Color
- Supports video amplifier bandwidth up to 300 MHz, 3 Gbps per channel (10.2 Gbps total) for 4Kx2K displays
- Supports compressed DTS-HD Master Audio, uncompressed LPCM 8 channel (7.1 surround sound) audio and Dolby TrueHD as well as 32-channel audio
- Supports 48-bit Deep Color (12-bits per channel), xvYCC (x.vColor), Rec. 2020 color space and 21:9 aspect ratio
- Supports LPCM, DTS Digital, DTS-HD Master Audio, Dolby TrueHD audio, four audio streams and 32-channel audio
- HDCP 2.2 compliant
- AC powered with Plug and Play installation; no special setup or remote required
- Rugged metal housing for maximum durability; built-in wall-mounting holes
- Up to three splitters may be cascaded to support four 4K displays
- Gold-plated contacts for corrosion-free connections
- Works with PlayStation and Xbox game systems, Blu-ray players, set-top boxes, satellite receivers and more
- Three-year warranty
- HDCP 2.2
- DVI 1.0
- CTS 1.4a
- CE
- FCC
- RoHS2
Connections - One HDMI female (input)
- Two HDMI female (output)
- One 5 V / 1 A DC power female (input)
Signal Input/Output - Input video signal: 0.5 – 1.0 V p-p
- Input DDC signal: 5 V p-p (TTL)
- Maximum single-link range: 10.2 Gbps, 4096x2160 at 60 Hz resolution
- Output video: HDCP 2.2, DVI 1.0
Video Resolutions - VGA: 640x480, 800x600, 1024x768, 1920x1200
- DTV/HDTV: 480i/480p/576i/576p/720p/1080i/1080p/4K@60Hz
Physical - LED indicators: power and port connection
- Dimensions: 80 x 80 x 20 mm (3.2 x 3.2 x 0.8 in.)
- 5 V / 1 A power adapter: 1.2 m (3.9 ft.)
- Weight: 150 g (5.3 oz.)
- Housing: metal
- Two wall-mount holes
Operating Environment - Operation Temperature: 0 – 40°C (32 – 104°F)
- Storage Temperature: -20 – 60°C (-4 – 140°F)
- Humidity (noncondensing): 0 - 96%
Package Contents - 4K 2-Port HDMI Splitter
- 5 V / 1 A power adapter
- Quick Instruction Guide
Standards and Certifications
info:
We aim to show you accurate product information. Manufacturers, suppliers and others provide what you see here, and we have not verified it. Â
Specifications
Number of outputs
2
Electronic end connection 1
HDMI
Electronic end connection 2
HDMI
Connector gender
Female
Warranty
Warranty information
Please be aware that the warranty terms on items offered for sale by third party Marketplace sellers may differ from those displayed in this section (if any). To confirm warranty terms on an item offered for sale by a third party Marketplace seller, please use the 'Contact seller' feature on the third party Marketplace seller's information page and request the item's warranty terms prior to purchase.
