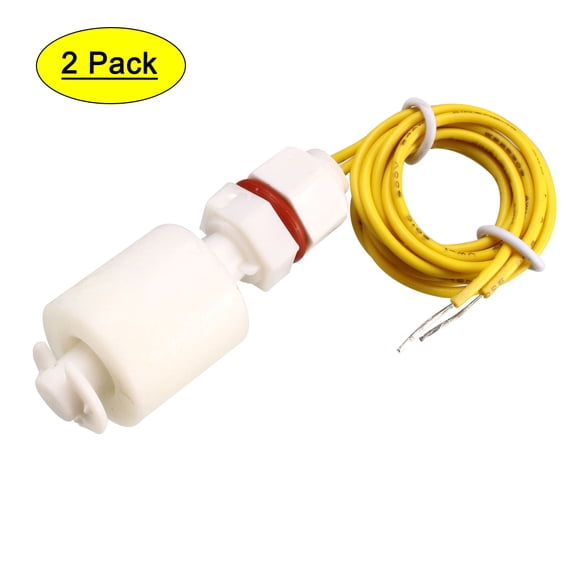

2pcs PP Float Switch M8 46mm Fish Tank Vertical Liquid Water Level Sensor

Specifications:Product Name: Float Switch
Max Contact: Rating 10W
Max Switching Voltage: 110V DC
Max Switching Current: 0.5A
Max Breakdown Voltage: 220V DC
Max Carry Current: 1.0A
Max Contact Resistance: 100mohm
Temperature Rating: -10 ~ +60 C / 85 C
Float Ball Material: PP
Float Body Material: PP
Float Ball Size(Approx): 17.7 x 17.7mm(L*D)
Thread Dia(Approx): M8
Body Total Length: 46mm
Cable Length: 36cm
Color: White;Yellow
Net Weight: 20g

Package Content

2pcs x Float Switch


Description:A float switch is a device used to sense the level of liquid within a tank. The switch may actuate a pump, an indicator, an alarm, or other device.
It can be easily converted from normally open to normally close by inverting the float.

Note:
because the current that the switch can carry is much little(0.5A), you must use a relay or contactor when it is connected by a load, relay and contactor are not included here.

 Feature:This float switch is a simple structure,easy installation liquid level
