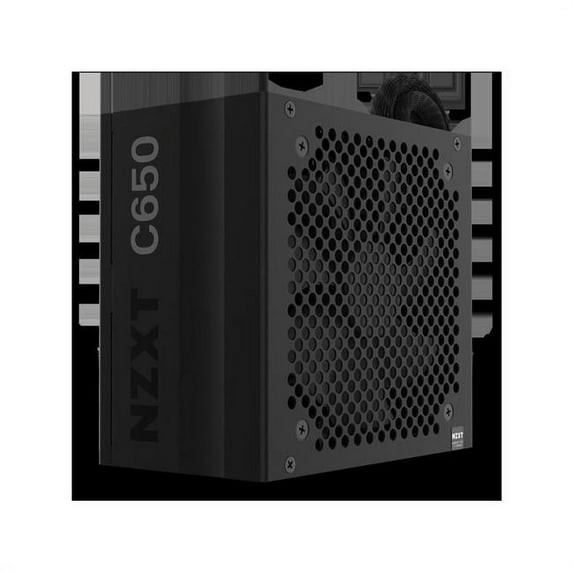

Nzxt 260008 Power Supply Pa-6b1bb-us C650 Bronze 650w Semi-modular Atx 80+bronze Rtl

The C650 brings you 650 watts of efficient power and is a must-have for the majority of power needs.Inside the Box
NZXT C650 Bronze PSU
1
24-pin ATX power (550mm)
1
4+4-Pin CPU Power Cables
2
6+2-pin PCIe Power Cable
2
SATA Cable
2
Peripherals Cable
1
6-32 Screws
4Key Specs
Material(s)
Steel, PCB and plastic
Compliance Standard
ATX12V v2.4 / EPS12V v2.92
AC Input Rating
10A/115V5A/230V 47Hz - 63HzDC Output Rating
Voltage
+3.3V / +5V / +5VSB /+12V / -12V
Max Load
20A / 20A / 2.5A / 54A / 0.3A
Voltage Regulation
+/-5% / +/-5% / +/-5% / +/-5% / +/-10%
Ripple and Noise
less than 50 mV p-p / less than 50 mV p-p / less than 50 mV p-p / less than 120 mV p-p / less than 120 mV p-p
Output Power (watt)
110 / 110 / 12.5 / 648 / 3.6
Total
650Fan Specs
Dimensions
120 x 120 x 25 (mm)
Speed
2400 +/-10% RPM
Airflow
72.90 CFM
Noise
Less than 44 dBA
Bearing
FDB (Fluid Dynamic Bearing)Energy Efficiency
Rating
80 Plus Bronze
10% loading
82%
20% loading
83%
50% loading
87%
100% loading
83%Operation
PF Correction
Active at 0.96
MTBF
100,000 hours
Operation Temperature
0 to 40^oCOutput Connector(s)
24-pin ATX Power
1
4+4-pin CPU power
2
6+2-pin PCIe power
4
SATA Power
6
Peripherals
3General
Regulations and Certifications (EMC and Safety)
CB / CE / FCC / TUV / cTUV-SUDus / China CCC / Taiwan BSMI R33245/ Australia RCM / EAC / UKCA / WEEE /
Hazardous Materials
RoHS and China RoHSItem Dimension (L"xW"xH")
13 x 9 x 5

Weight
5 lbs

Warranty Information
5 Years
