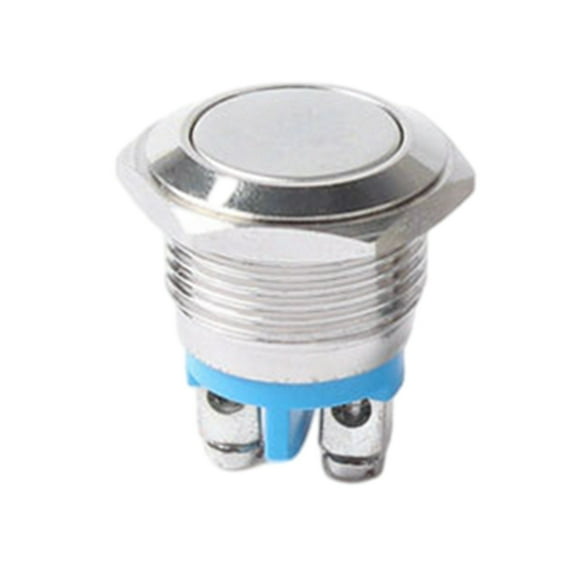

GLFILL 12V 19mm Metal Waterproof Push Button Momentary On Off Horn Switch Start Brass

Features:
*Metal shell, anti-corrosion, anti-rust, pressure-resistant
*Waterproof sealing ring IP66, excellent waterproof performance
*Easy to install, waterproof, shockproof, durable.
*The switch will be on when you push button, and it will be off when you undo button.
*Can be used for circuit control in electromagnetic starter, contactor, relay and other electric circuits.

Specifications:
Mounting Cut Hole: Approx.19mm
Head Diameter: Approx.21.8mm
Operation Type: Momentary (Self Return)
Switch: 1NO (Normally Open)
Contacts: Copper
Head Shape: high head, flat head, curved surface
Maximum current: 1A
Rated voltage: 12-24V
Protection class: lP66, lK09
Terminal Type: Screw Terminal
Body Material: Nickel-Plated Brass
Button Material: Nickel-Plated Brass
Operation Temperature: -20℃-80℃

Package Contents
1*Button Switch

Note:
1. The real color of the item may be slightly different from the pictures shown on website caused by many factors such as brightness of your monitor and light brightness.
2. Please allow slight manual measurement deviation for the data.
